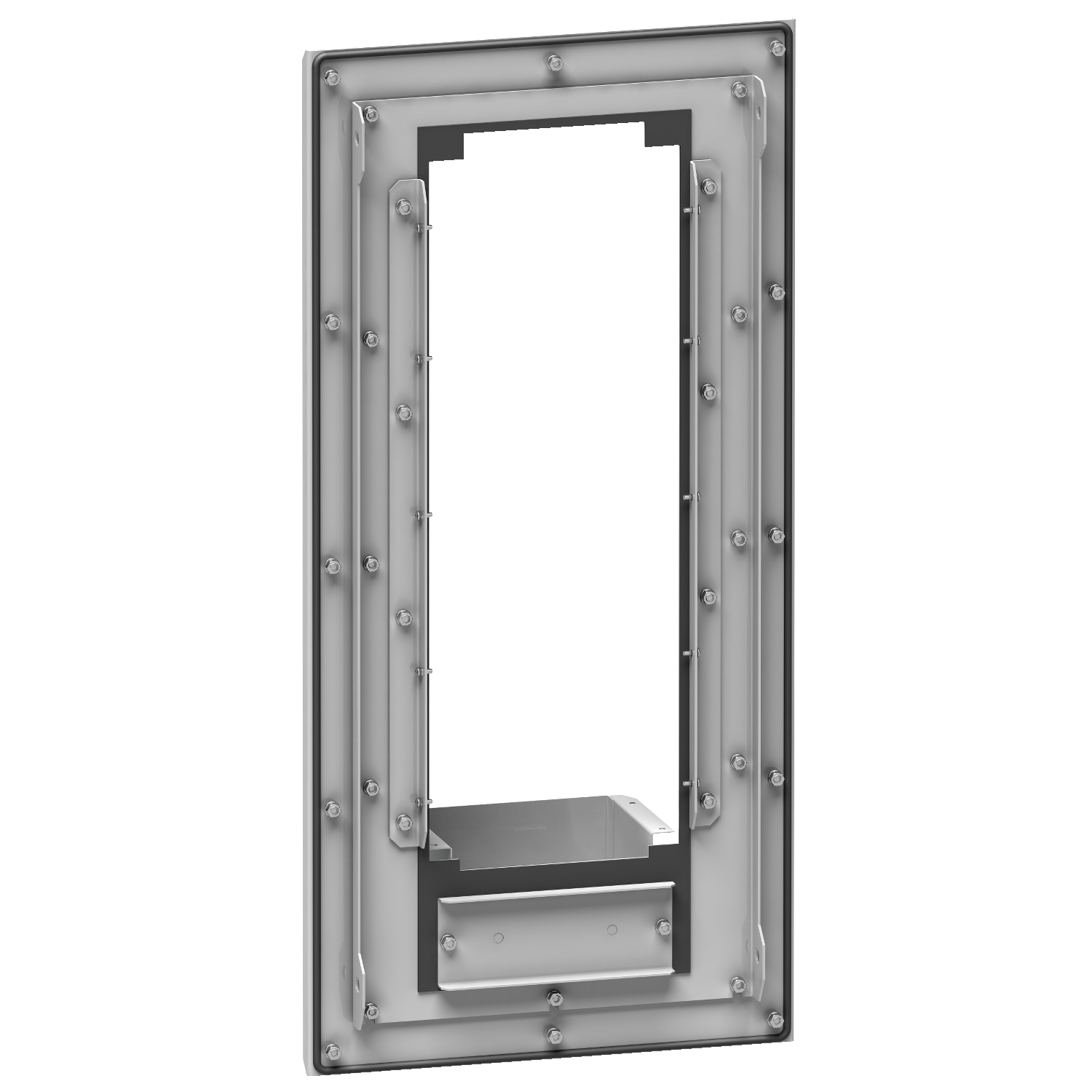

Spacial - Flush Mounting drive installation kit - Altivar Process size S4 - IP55

Manuals & Documentation
Catalog Number NSYPTDS4
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Country of Origin France
Made in USA No
Application Process and utilities
Consist of 1 x mounting plate with flanges and integrated gasket, steel with anti-corrosive coating by screws and nuts;1 x fixing accessories;1 x drilling template;1 x instruction sheet;1 x edge protector profile, plastic;1 x fan support;1 x cover for fan protection
For Use With Altivar variable speed drive ATV630;Altivar variable speed drive ATV930;PanelSeT SF and SM enclosures;Altivar variable speed drive ATV340
Mounting Mounting Plate
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=434594571&lang=en-us
GTIN 03606485442471
Item Type Drive flush mounting kit
Width External: 385 mm;cut-out: 325 mm
Height External: 800 mm;cut-out: 735 mm
Depth Wall-enclosure separation : 151.5 mm
