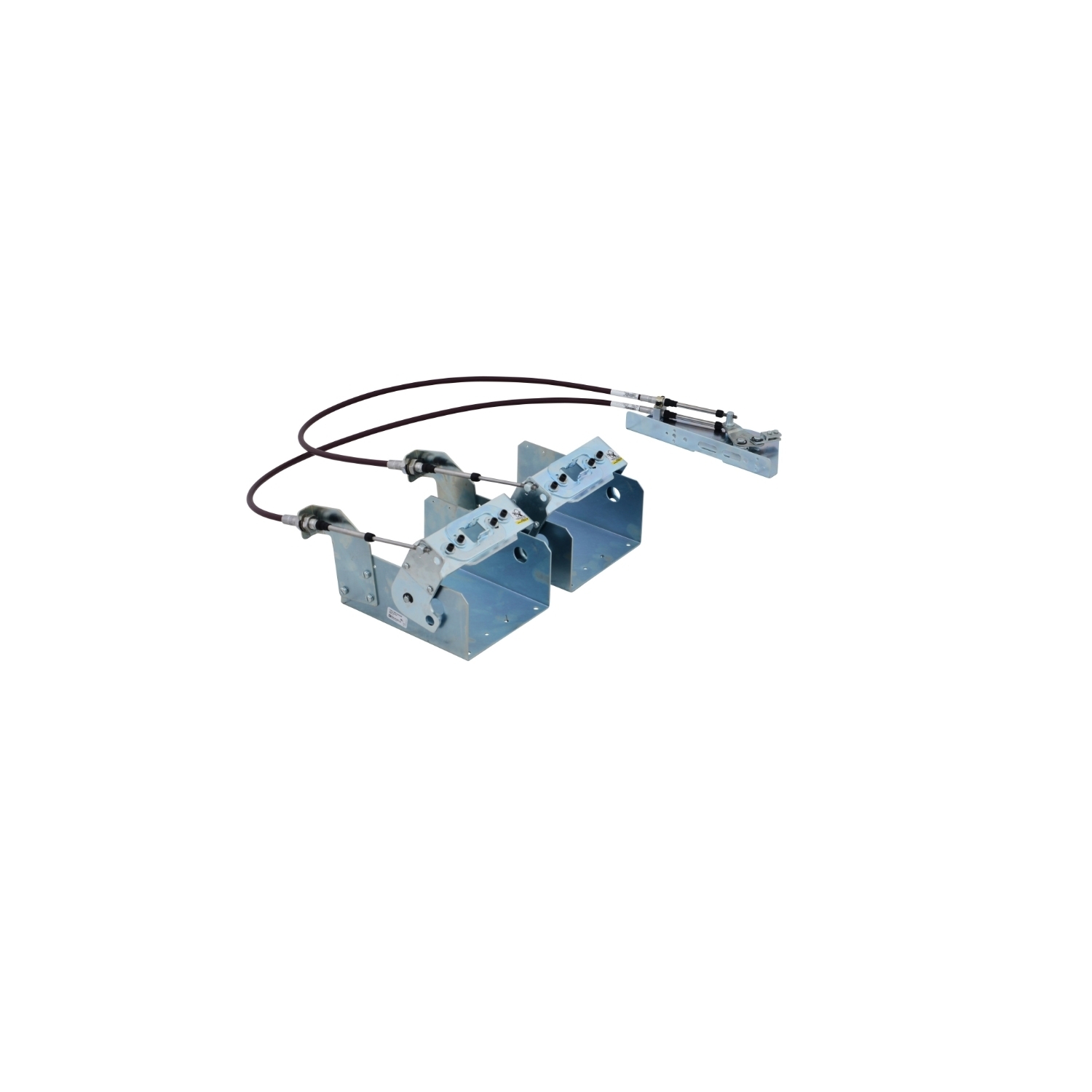

9422CSJD50 Dual Cable Operating Mechanism, Flange Handle Mounting, For Use With PowerPact D, L, MG NSF Circuit Breaker, 60 in Cable Handle to Device Connection
- MFR:
- Schneider Electric
- MFR #:
- 9422CSJD50
- UPC:
- 785901511793
- Item #:
- 433097
9422CSJD50 Dual Cable Operating Mechanism, Flange Handle Mounting, For Use With PowerPact D, L, MG NSF Circuit Breaker, 60 in Cable Handle to Device Connection
- MFR #:
- 9422CSJD50
- UPC:
- 785901511793
- Item #:
- 433097

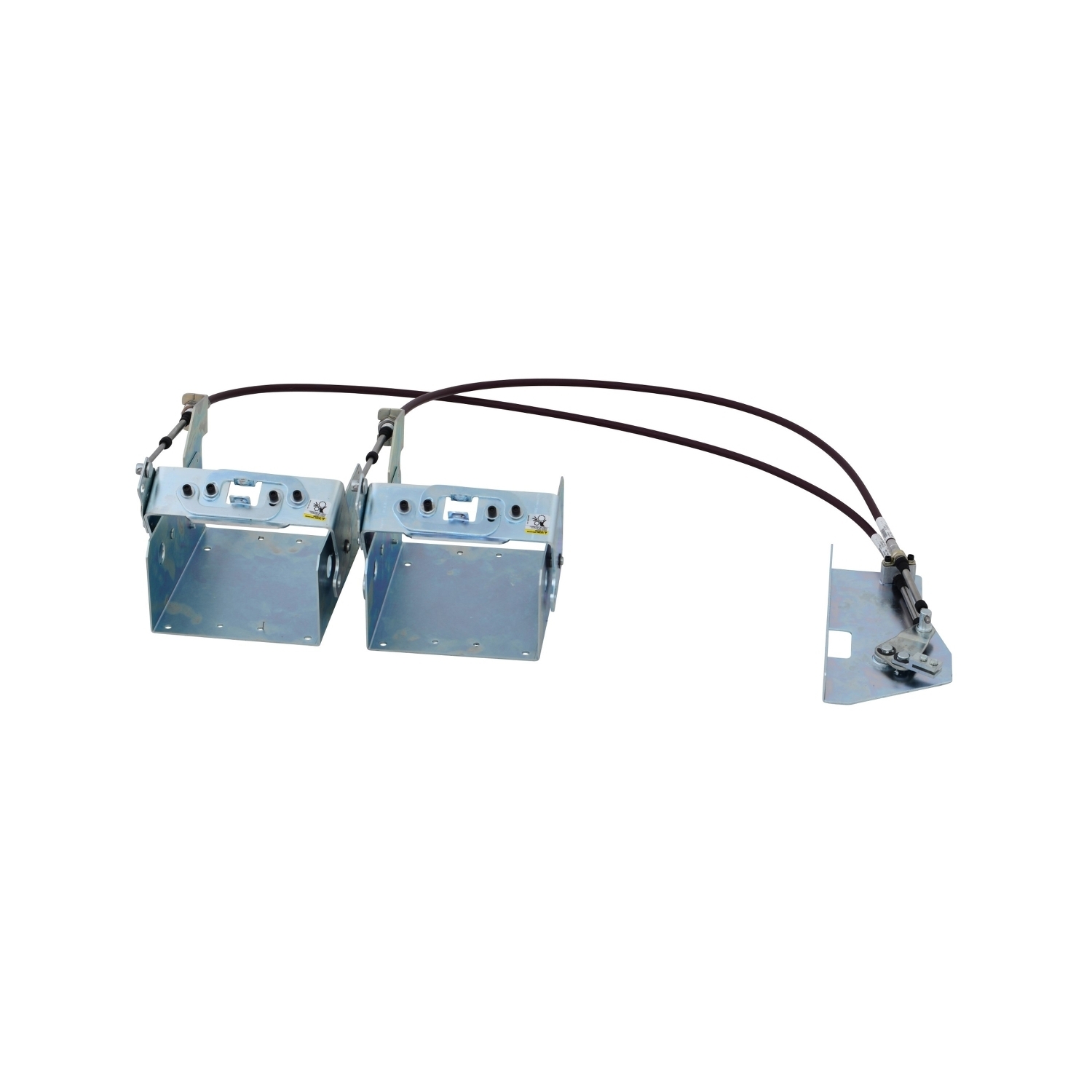

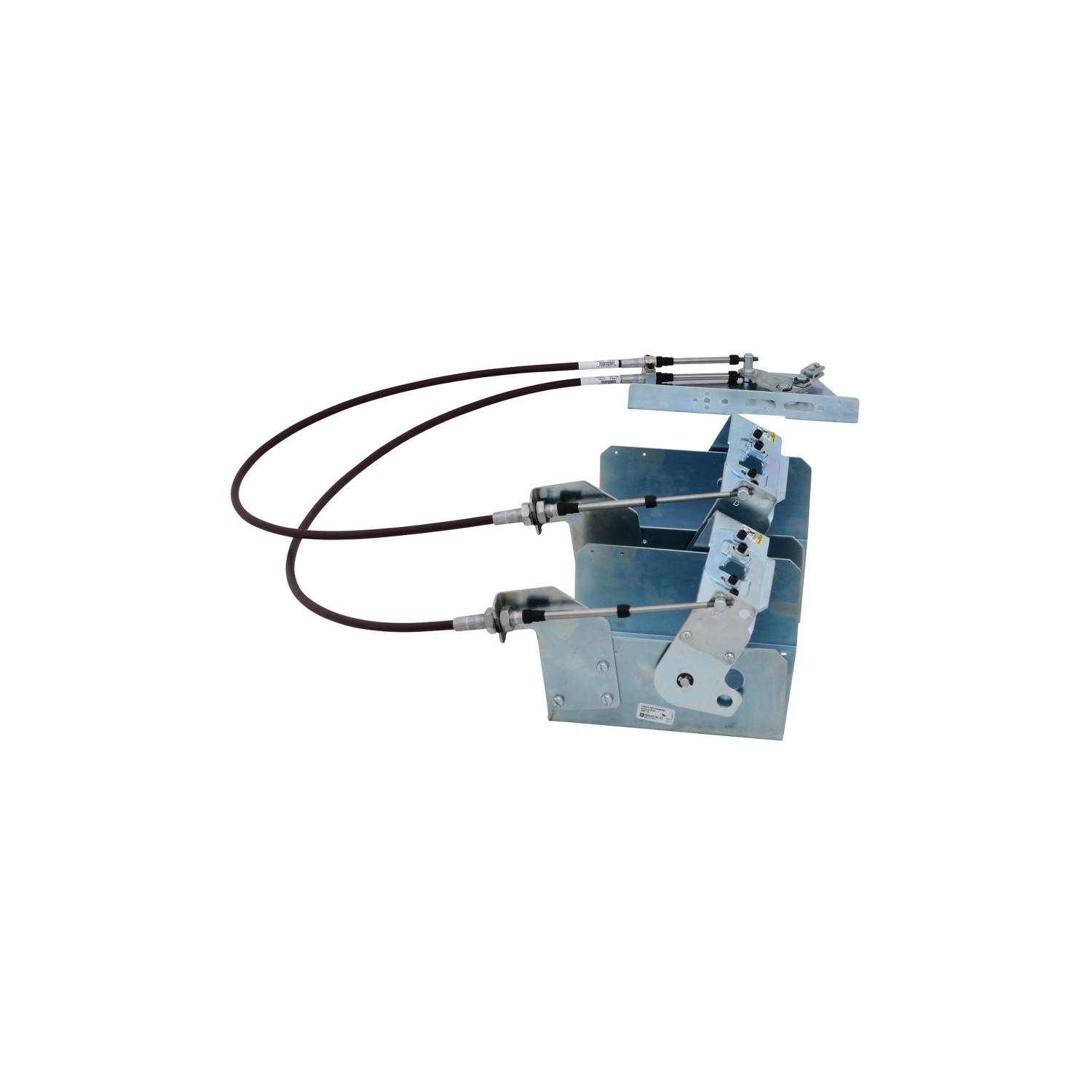

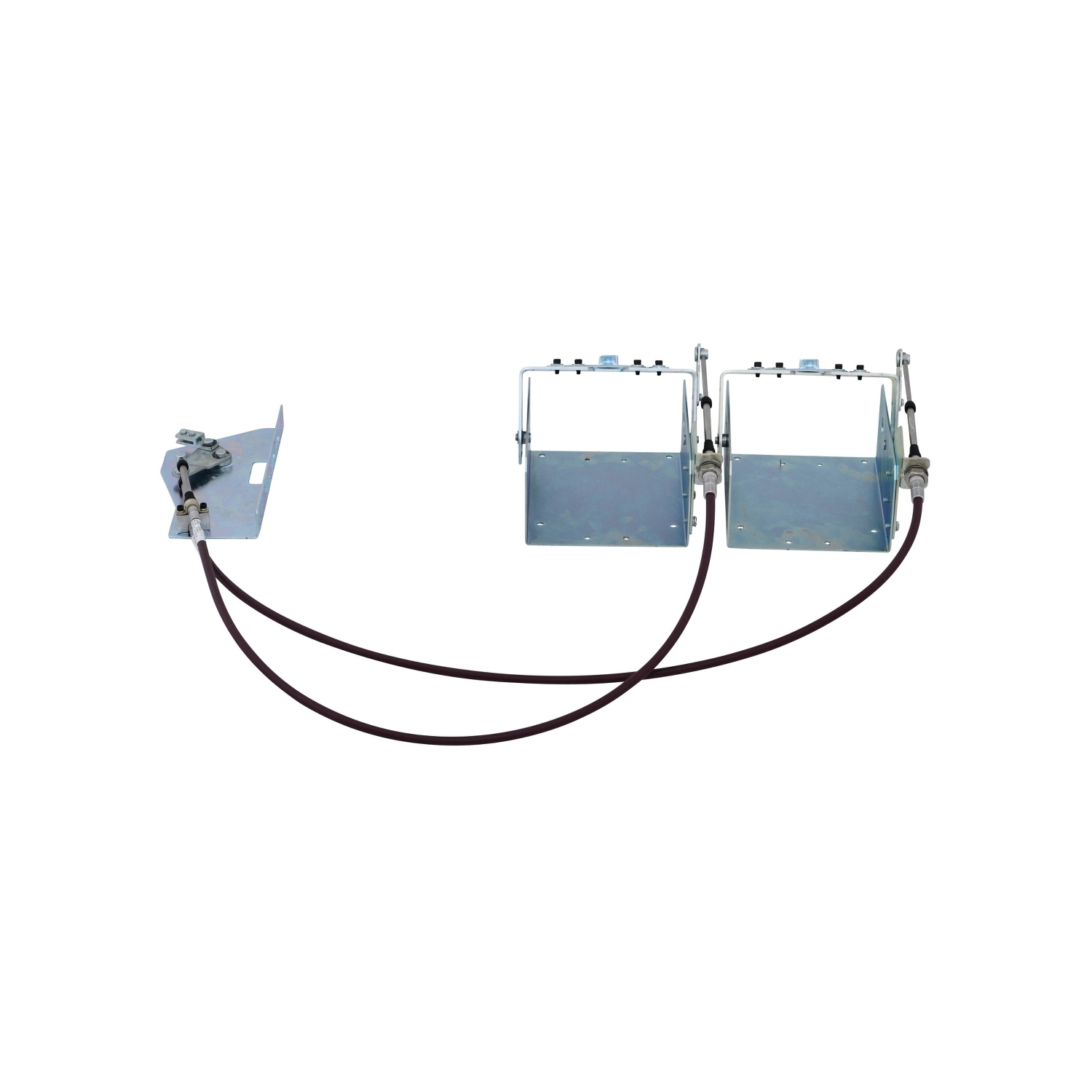

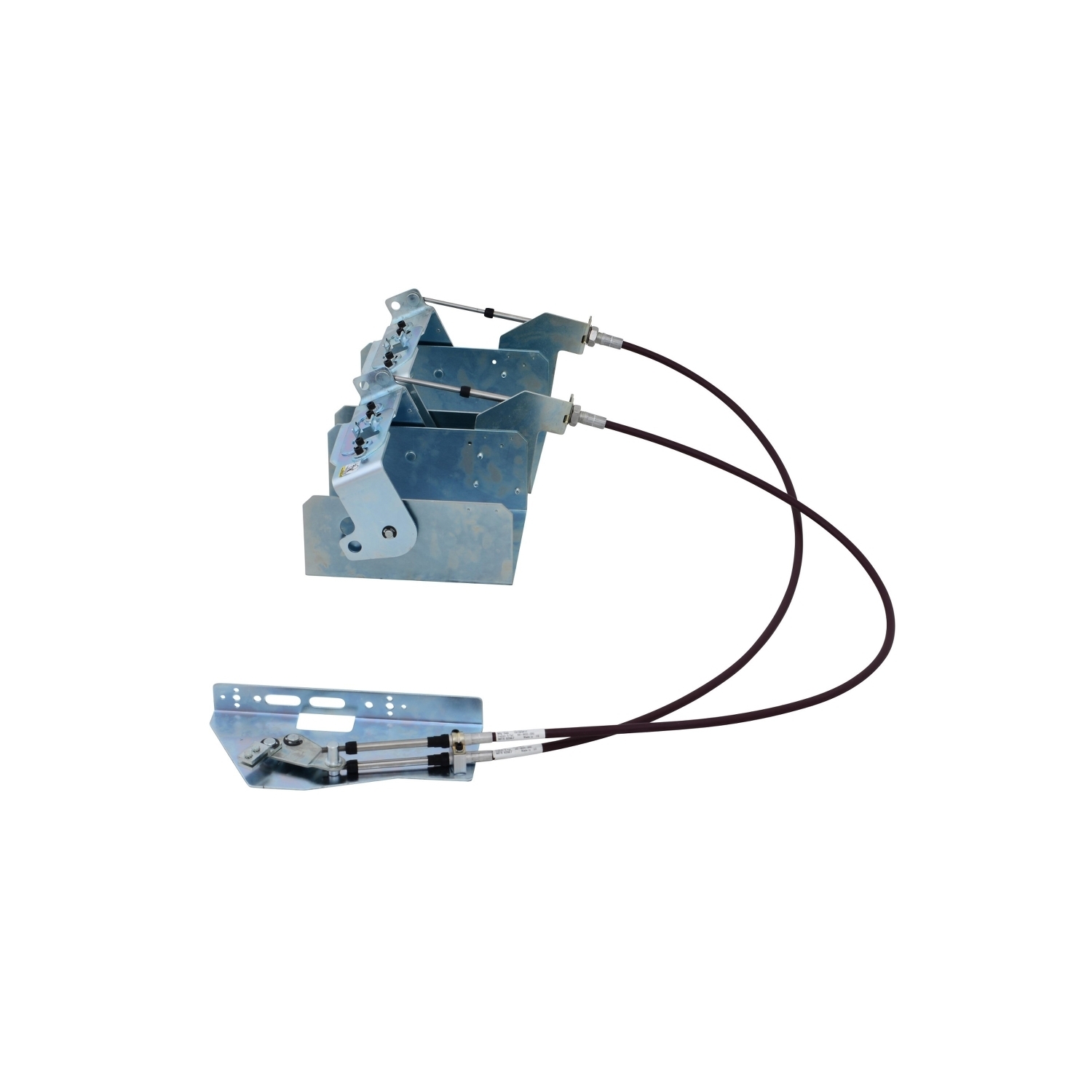

Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Dual cable operating mechanisms are designed for use with Square D circuit breakers. This cable mechanism allows a single handle operator to operate two circuit breakers. This mechanism has two 60 inch long cables. Mechanism will work with Compact NSJ, PowerPacT D and PowerPacT L circuit breakers. Circuit breakers is 3 pole with a frame size of 250 and 600 A. Must use a 9422AP1 or 9422AP2 operating handle with this operating mechanism. Disconnect switch is UL Component Recognized and CSA certified
Manuals & Documentation
| Catalog Number | 9422CSJD50 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423272338&lang=en-us |
| UPC | 785901511793 |
| GTIN | 00785901511793 |
