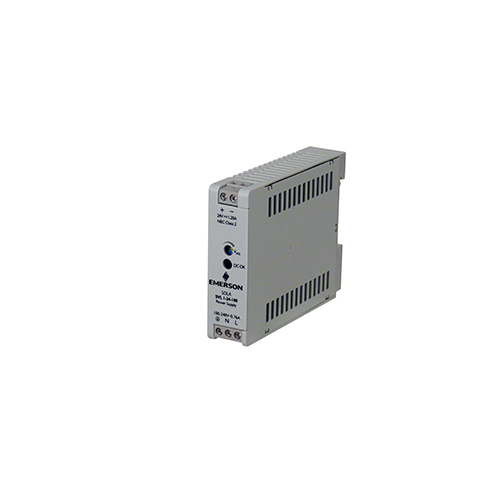

SVL124100 1-Phase Power Supply, 85 to 264 V AC/120 to 375 V DC Input, 24 VDC Output, 30 W, 1.25 A, DIN Rail Mount
- MFR:
- SolaHD
- MFR #:
- SVL124100
- UPC:
- 783472873180
- Item #:
- 430227
SVL124100 1-Phase Power Supply, 85 to 264 V AC/120 to 375 V DC Input, 24 VDC Output, 30 W, 1.25 A, DIN Rail Mount
- MFR #:
- SVL124100
- UPC:
- 783472873180
- Item #:
- 430227
Manuals & Documentation
| Catalog Number | SVL124100 |
| Manufacturer | SolaHD |
| Brand | SolaHD |
| Country of Origin | Thailand |
| Made in USA | No |
| Application | Heavy and Light Industrial Machinery; Test and Measure Equipment; Scanners; instrumentation; ATM Machines; Vending Machines; |
| Cable Size | Input Connector size range: 22-12 AWG (0.4-3.4 mm2) for solid conductors; Output Connector size range: 20-12 AWG (0.5-3.4 mm2) for solid conductors |
| Enclosure | To be installed in an enclosure |
| Frequency Rating | 50/60 |
| Material | Plastic |
| Mounting | Din Rail |
| Phase | 1 |
| Special Features | Universal Input; Convection cooling; DC OK LED; NEC Class 2 output; Protection: short circuit, over voltage, overload, over temperature; Two year warranty |
| Standard | UL Listed, Industrial Control Equipment for US and Canada: UL 508, CSA C22.2 No. 107.1; UL Recognized Component, ITE for US and Canada: UL 60950-1/CSA C22.2 60950-1 2nd edition; CE: IEC/EN 60950-1 2nd edition CB Scheme, NEC Class 2 |
| UPC | 783472873180 |
| GTIN | 00783472873180 |
| Item Type | SVL Essential Din Rail Series |
| Length | 3.52 |
| Width | 0.82 |
| Height | 2.95 |
| Environmental Conditions | To be installed in a controlled environment |
| Voltage Rating | 24 |
| Wattage | 30 |
