Discontinued
AL800M23K PowerPact MasterPact Mechanical Lug Kit, 8 to 1/0 AWG, 14 to 1/0 AWG, For Use With 800 A M and P Frame Circuit Breaker
- MFR:
- Schneider Electric
- MFR #:
- 9013FRG42J14
- UPC:
- 785901175643
- Item #:
- 430091
Discontinued
AL800M23K PowerPact MasterPact Mechanical Lug Kit, 8 to 1/0 AWG, 14 to 1/0 AWG, For Use With 800 A M and P Frame Circuit Breaker
- MFR #:
- 9013FRG42J14
- UPC:
- 785901175643
- Item #:
- 430091

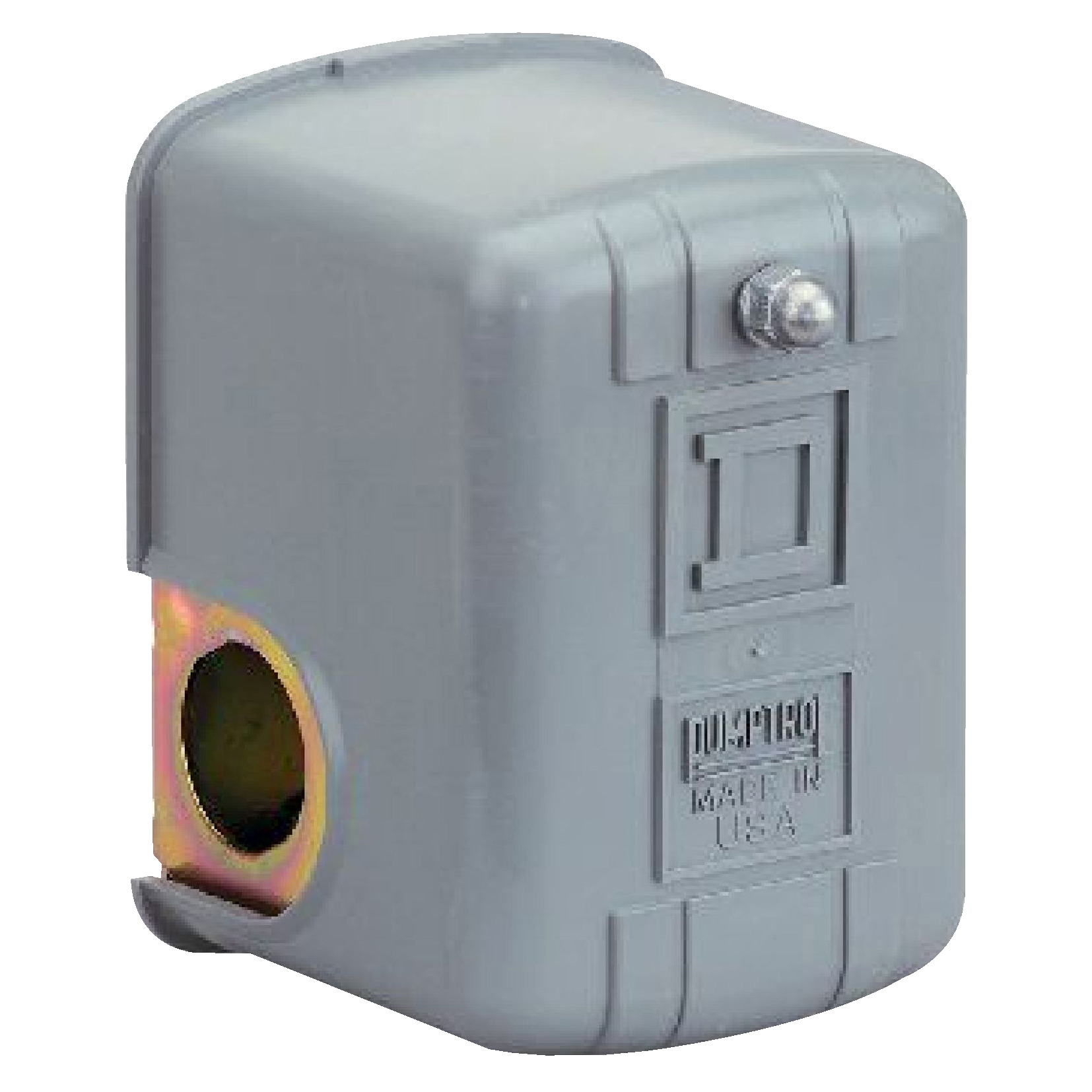

water pump switch 9013FR - fixed diff. - on at 5 psi - reverse action
Manuals & Documentation
| Catalog Number | 9013FRG42J14 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | 0.75 KW 1 HP)115 V AC, 1 PHASE-0.75 KW 1 HP)230 V AC, 1 PHASE-0.75 KW 1 HP)115 V AC, 3 PHASE-0.75 KW 1 HP)230 V AC, 3 PHASE-0.18 KW 0.25 HP)32 V DC-0.18 KW 0.25 HP)115 V DC-0.18 KW 0.25 HP)230 V DC,CONTROL ELECTRICALLY DRIVEN WATER PUMPS,REGULATION BETWEEN 2 THRESHOLDS |
| Contact Configuration | 2 NO, SNAP ACTION, DPST-DB, FORM XX |
| Enclosure | NEMA 1 UL 50 |
| Operating Cycles | 10 CYC/MN |
| Process Connection | 0.25 INCH NPSF INTERNAL UL 508 |
| Special Features | - |
| Standard | IP20 IEC 60529,NSF ANSI 61 ANNEX G-UL 508-CE,UL LISTED FILE E12158-CSA FILE LR25490 |
| UPC | 785901175643 |
| GTIN | 00785901175643 |
| Item Type | ELECTROMECHANICAL PRESSURE SWITCH,FIXED DIFFERENTIAL |
| Environmental Conditions | GENERAL PURPOSE (INDOOR) |
| Operating Temperature | -33-257 A Degrees F |
| System Pressure | 14 PSI 6-14 PSI) |
