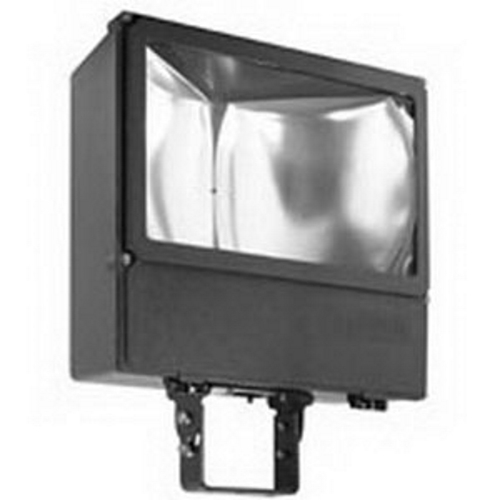

GAM771PMTZ2 Areamaster 250/400 Floodlight Fixture With Integral Ballast, (1) Lamp, 454 W Fixture, 120/208/240/277 V AC, Architectural Bronze Polyester Housing
- MFR:
- Appleton Electric
- MFR #:
- GAM771PMTZ2
- UPC:
- 781381113090
- Item #:
- 429118
GAM771PMTZ2 Areamaster 250/400 Floodlight Fixture With Integral Ballast, (1) Lamp, 454 W Fixture, 120/208/240/277 V AC, Architectural Bronze Polyester Housing
- MFR #:
- GAM771PMTZ2
- UPC:
- 781381113090
- Item #:
- 429118
Appleton Areamaster 250/400 Integrally Ballasted Floodlight, Fixture Type: Yoke Mount, Lamp Type: 400 WTT Mogul Pulse Start Metal Halide, Lamp Wattage: 400 WTT, Voltage Rating: 120/208/240/277 V, Number Of Lamps: 1, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Lens Door, Silicone Rubber Gasket, Porcelain Socket, Zinc Plated Steel Yoke Mount, Stainless Steel Bolts, Fixture Wattage: 454 WTT, Amperage Rating: 1.5 AMP Starting, 1.75 AMP Operating At 277 V, Length: 433.4 MM, Width: 187.3 MM, Housing Finish: Architectural Bronze Polyester, Housing Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum, Ambient Temperature Range: 55 DEG C, Temperature Range: 115 DEG C Supply Wire, Lens Material: Glass, Ballast Type: Super Constant Wattage Autotransformer (S. C.W.A.), Ballast Quantity: 1, Hub Size: 1/2 IN NPT, Reflector/Refractor: Alzak Finished Aluminum Reflector, Frequency Rating: 60 HZ, Enclosure: IP66, Standard: NEC: Marine And Hazardous Locations Class I, Zone 2, AEx nR, Groups IIA, IIB, IIC, UL Listed: E10794, 1598, 1598A, 60079-0, 60079-15, For Shopping Malls, Parking Lots, Sports Areas, Security Lighting, Industrial Process Lighting
Manuals & Documentation
| Catalog Number | GAM771PMTZ2 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Shopping Malls, Parking Lots, Sports Areas, Security Lighting, Industrial Process Lighting |
| Lamp Type | 400 WTT Mogul Pulse Start Metal Halide |
| Light Technology | HID |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum Lens Door, Silicone Rubber Gasket, Porcelain Socket, Zinc Plated Steel Yoke Mount, Stainless Steel Bolts |
| Special Features | This series of Areamaster floodlights provides powerful, efficient, weatherproof lighting for medium and large areas and is suitable for marine and hazardous location service; Compact, attractively styled contemporary design that is rugged and dependable; Easy to install, aim, add service; One piece housing; One piece lens cover, secured by captive stainless steel bolts; Thermal shock and impact-resistant glass lens; Heavy duty, high temperature silicone rubber gasket; Heavy duty mogul base porcelain socket with heavy gauge brass, nickel-plated, double lamp-grip screw shell and spring loaded center contact; Compound parabolic, double segment, finished aluminum reflector for optimum efficiency; Cool operating temperatures ensure long luminaire life; Powerful, efficient weatherproof lighting for medium and large areas; Projected area: 1.9 SQ-FT |
| Standard | NEC: Marine And Hazardous Locations Class I, Zone 2, AEx nR, Groups IIA, IIB, IIC; UL Listed: E10794, 1598, 1598A, 60079-0, 60079-15 |
| UPC | 781381113090 |
| GTIN | 00781381113090 |
| Item Type | Integrally Ballasted Floodlight |
| Length | 433.4 |
| Length UOM | Millimeter |
| Width | 187.3 |
| Width UOM | Millimeter |
| Voltage Rating | 120/208/240/277 |
