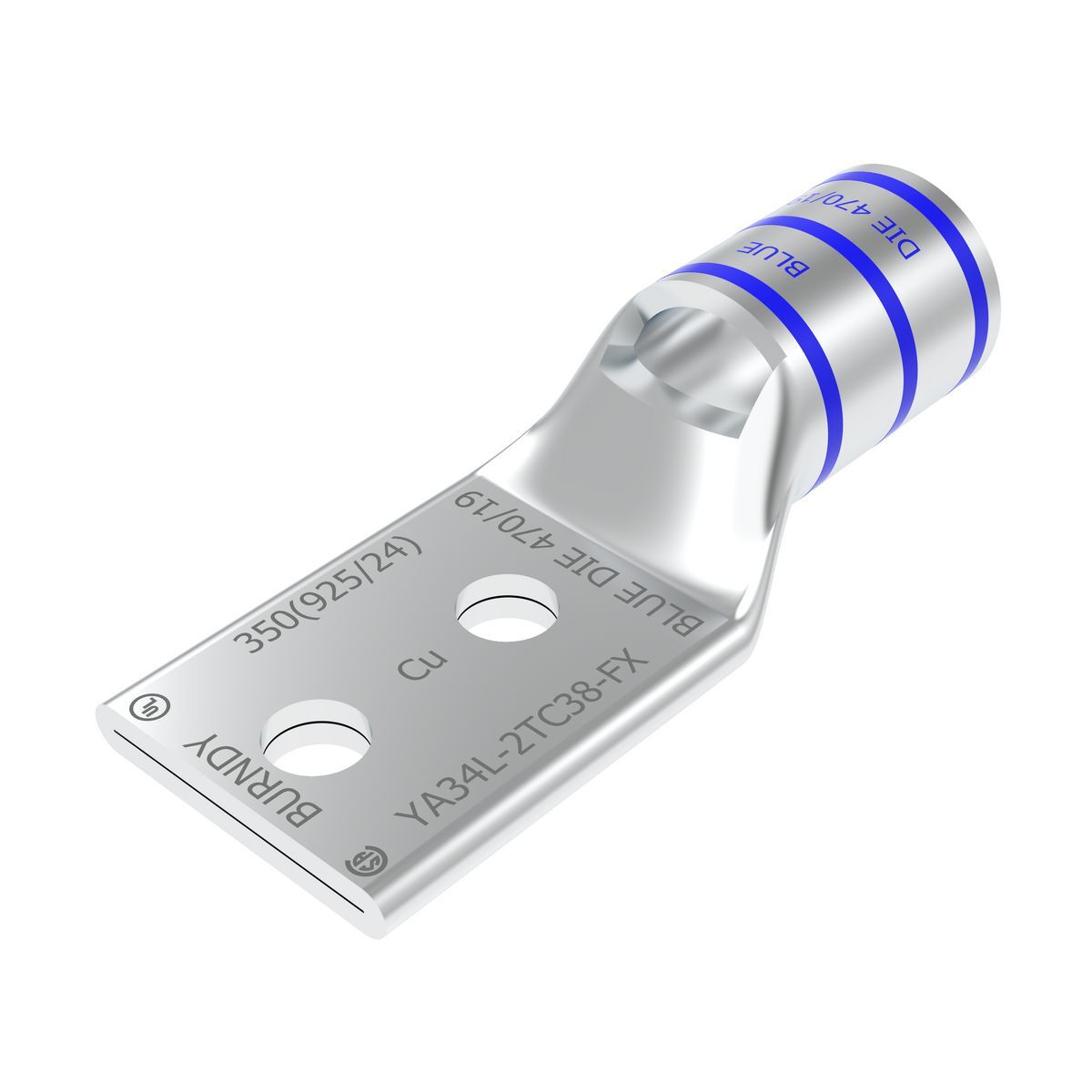

YA34L2TC38FX YA-L-2TC-FX 2-Hole Compression Lug With Inspection Window, 373.7 kcmil Flexible Copper Conductor, Die Code: 19, 3/8 in Stud, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YA34L2TC38FX
- UPC:
- 781810018941
- Item #:
- 428537
YA34L2TC38FX YA-L-2TC-FX 2-Hole Compression Lug With Inspection Window, 373.7 kcmil Flexible Copper Conductor, Die Code: 19, 3/8 in Stud, Copper
- MFR #:
- YA34L2TC38FX
- UPC:
- 781810018941
- Item #:
- 428537
Manuals & Documentation
| Catalog Number | YA34L2TC38FX |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Temperature Rating: 90 DEG C, Finish: Electro-Tin Plated, Tongue Angle: Straight, Die Index: 19, Wire Strip Length: 1-1/4 IN, Color Code: Blue, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W32VT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W32VT, W32RT Die, (2), Y35, Y39, Y750, PAT750 Tool, U32RT Die, (2), Y46 Tool, U32RT Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Y644HS, Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Conductor Type: Flexible Copper |
| Standard | UL 486A-486B |
| UPC | 781810018941 |
| GTIN | 00781810018941 |
| Item Type | Standard Barrel, Tin Plated |
| Voltage Rating | 35 |
