Rittal Corp

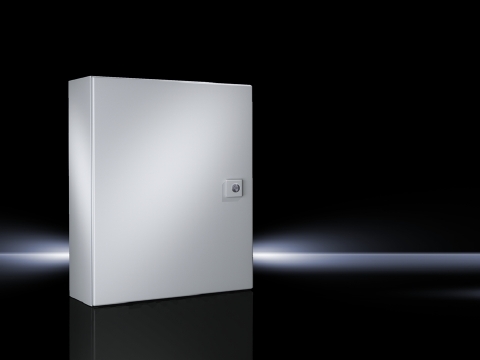

8017618 WM Series Compact Non-Disconnect Enclosure, 24 in W x 8.3 in D, NEMA 1/12/3R/4X/IP66 NEMA Rating, 304 Stainless Steel

MFR:
Rittal
MFR #:
8017618
UPC:
639889831940
Item #:
428324

Compact enclosures WM, Stainless steel, material: Door: Stainless steel, all-round foamed-in PU seal, Enclosure and door: Stainless steel 1.4301 (AISI 304), Mounting plate: Sheet steel, zinc-plated, surface: Brushed, supply includes: Enclosure with door(s), L/h door hinge, Mounting plate, Wall mounting blind nut, description: These single door wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include a stainless steel body and door, and a zinc plated mounting panel.

Features

  • Size: 24 Inch Width x 8 Inch Depth x 36 Inch Height
  • One-piece welded cold-rolled steel body
  • Double door and disconnect enclosures have a 3-point latching L-handle
  • Wallmounting holes (carbon steel versions) and blind riv-nuts (stainless steel versions)
  • Single door enclosures less than 20 Inch in height have one 1/4 turn latch with screwdriver insert
  • Single door enclosures greater than or equal to 42 Inch in height have a 3-point latching L-handle
Catalog Number 8017618
Manufacturer Rittal
Brand Rittal Corp
Country of Origin United States
Made in USA Yes
Application Industrial
Construction One Piece Construction
Insulation Foamed-in PU Seal
Material Stainless Steel
Mounting Wall
NEMA Rating 4X
Standard UL Listed, cUL Listed
RoHS Indicator Yes
UPC 639889831940
GTIN 00639889831940
Item Type Compact Enclosure
Length 48.0000
Length UOM Inch
Width 32.0000
Width UOM Inch
Height 93.0000
Height UOM Inch
Weight 250.882
Weight UOM Pounds
Size 35 (H) x 24 (W) x 8.3 (D)
