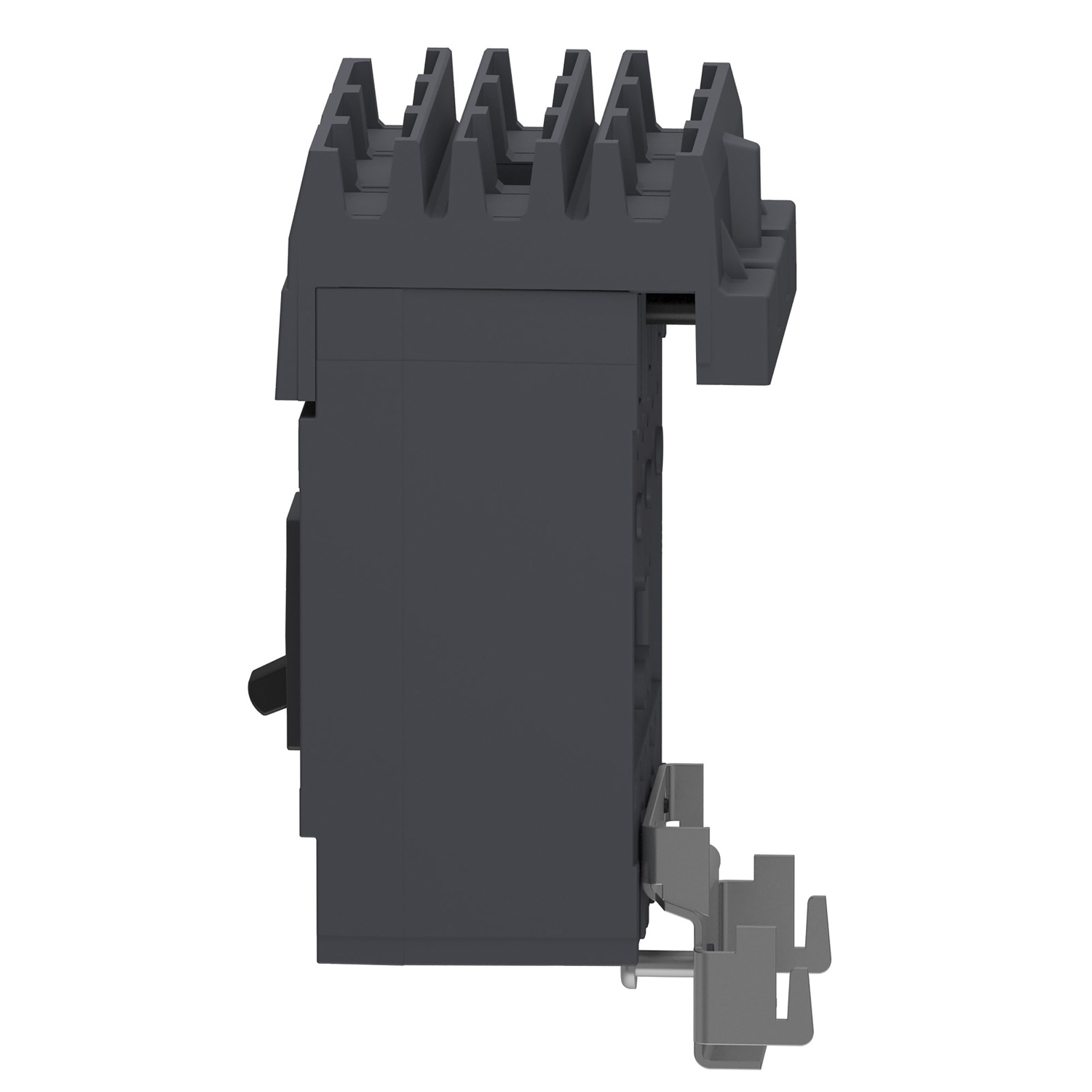

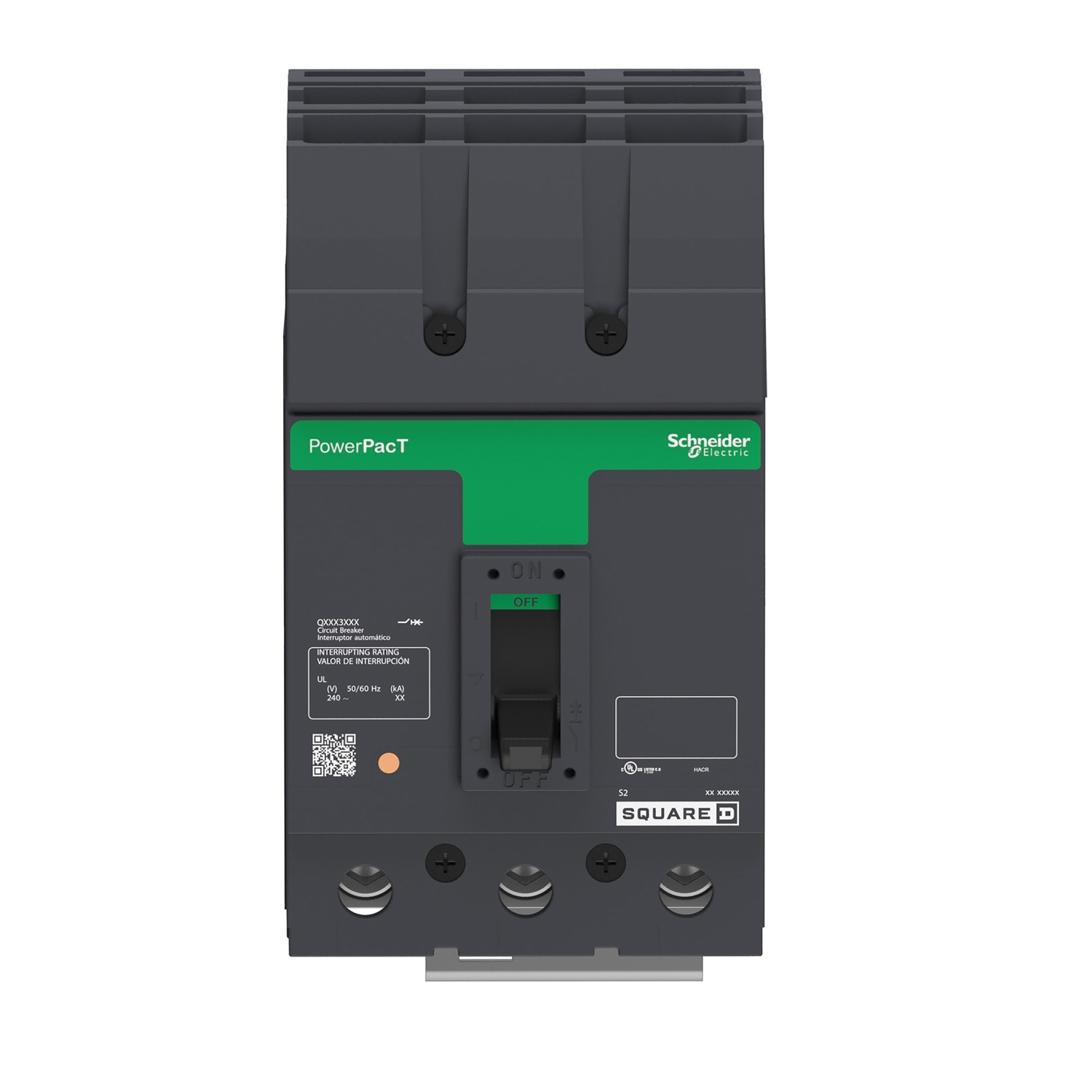

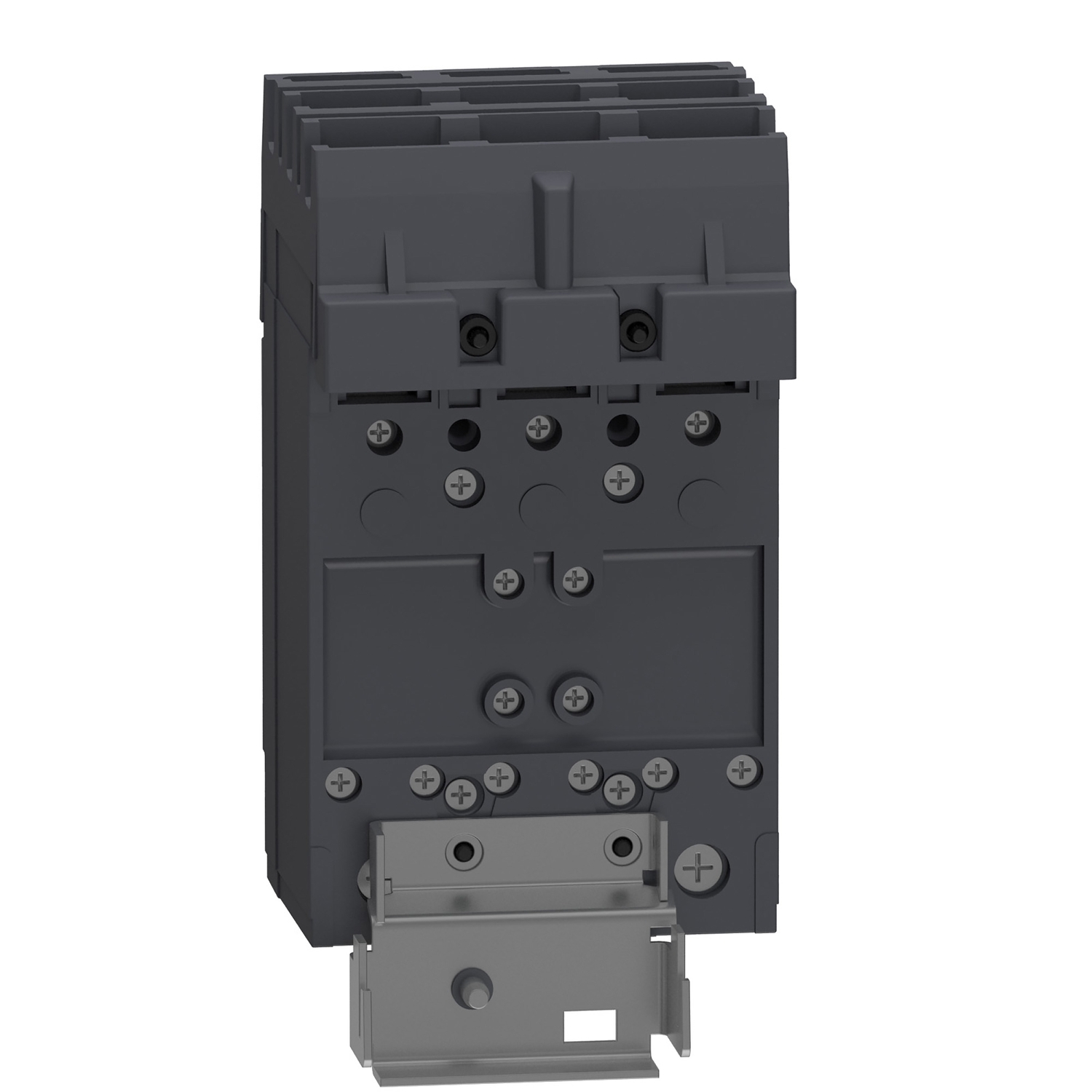

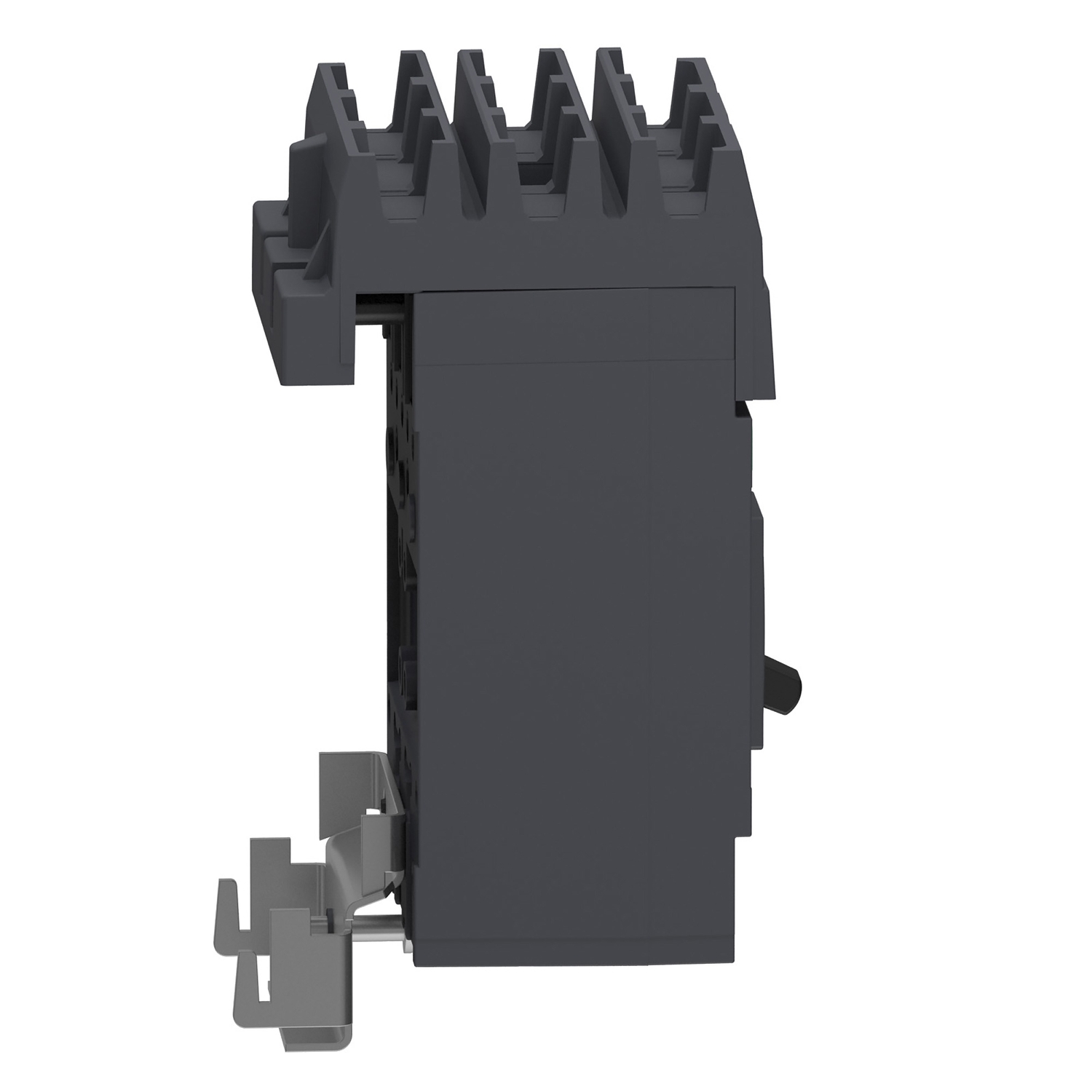

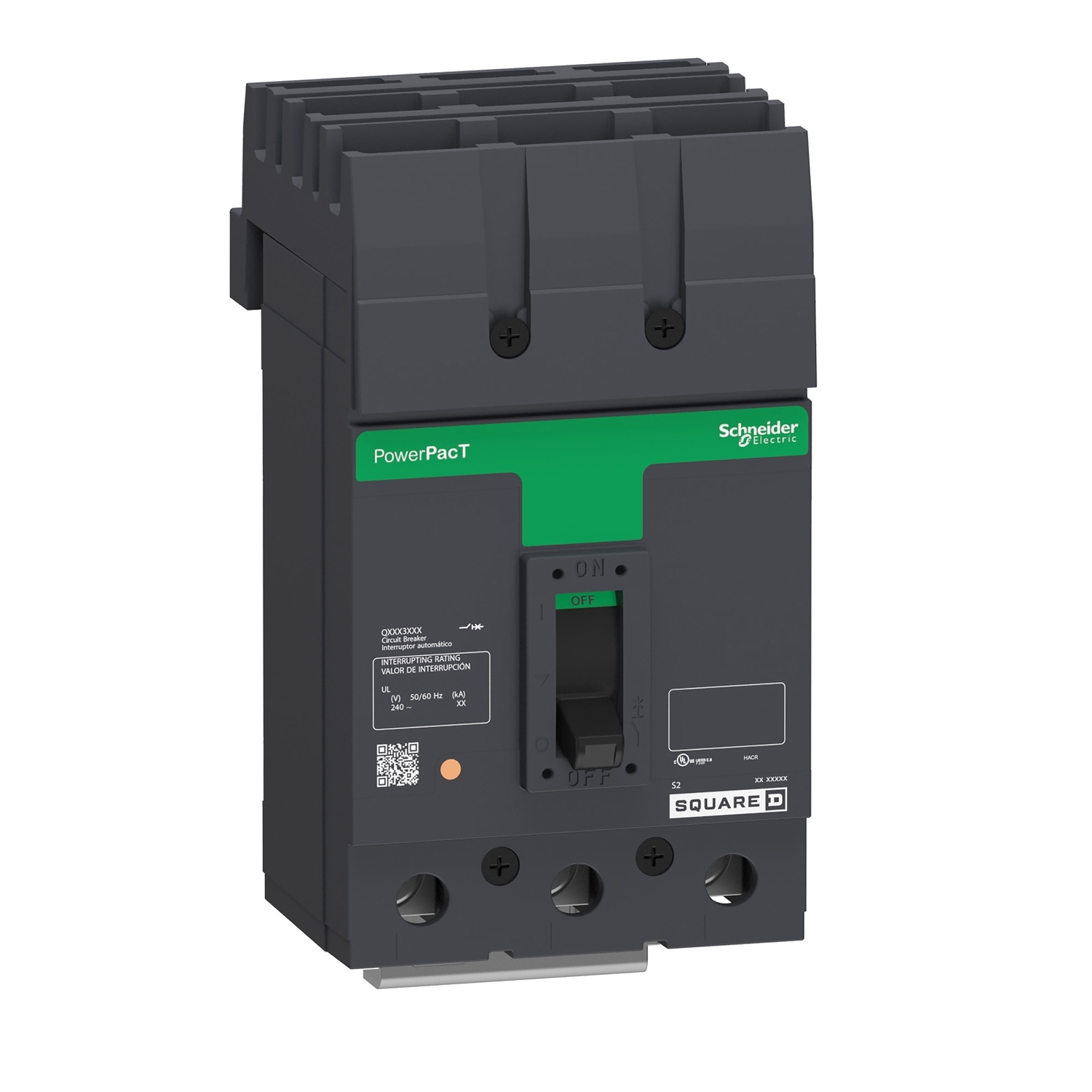

QJA32100 I-Line PowerPact Q Type QJ Molded Case Circuit Breaker, 240 V AC, 100 A, 100 kA Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR:
- Schneider Electric
- MFR #:
- QJA32100
- UPC:
- 785901705628
- Item #:
- 42789
QJA32100 I-Line PowerPact Q Type QJ Molded Case Circuit Breaker, 240 V AC, 100 A, 100 kA Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR #:
- QJA32100
- UPC:
- 785901705628
- Item #:
- 42789
PowerPacTQ-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT Q, 100A, 3 pole, circuit breaker has an interrupting rating of 100kA at 208Y/120VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT Q circuit breakers comply to UL, CSA, and NOM standards and are IEC certified.
Manuals & Documentation
| Catalog Number | QJA32100 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=436215&lang=en-us |
| UPC | 785901705628 |
| GTIN | 00785901705628 |
| Width | 4.5 |
| Width UOM | Inch |
| Height | 6.47 |
| Height UOM | Inch |
| Depth | 3.93 IN |
