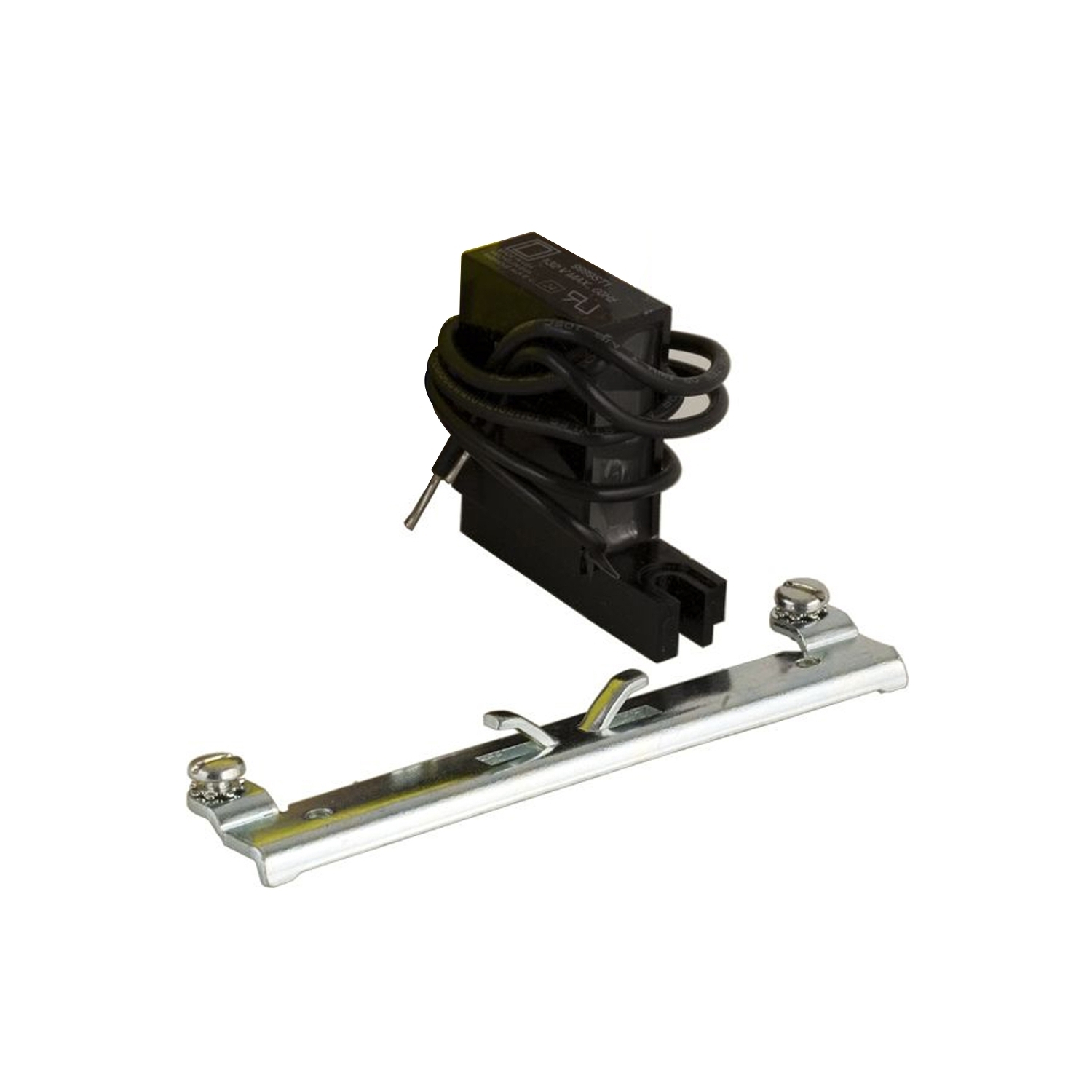

9999ST2 Transient Suppression Module, For Use With Class 8502/8536 Type S NEMA 3 to 5 120 V AC 60 Hz Starter and Contactor, 120 VAC Coil, 60 Hz, Surface Mount
- MFR:
- Schneider Electric
- MFR #:
- 9999ST2
- UPC:
- 785901851905
- Item #:
- 426653
9999ST2 Transient Suppression Module, For Use With Class 8502/8536 Type S NEMA 3 to 5 120 V AC 60 Hz Starter and Contactor, 120 VAC Coil, 60 Hz, Surface Mount
- MFR #:
- 9999ST2
- UPC:
- 785901851905
- Item #:
- 426653
Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This transient suppression module is designed to be used to suppress the voltage spike generated when opening coil circuit. This voltage spike can cause issue with nearby integrated and solid state control circuits. The module consists of an RC circuit. It is designed to suppress the coil voltage transients to approximately 200% of peak coil supply voltage. It is designed for coil voltages of 120 VAC. This module can be used with NEMA size 3, 4 and 5 devices. This module is UL listed and UL component recognized.
Manuals & Documentation
| Catalog Number | 9999ST2 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| UPC | 785901851905 |
| GTIN | 00785901851905 |
