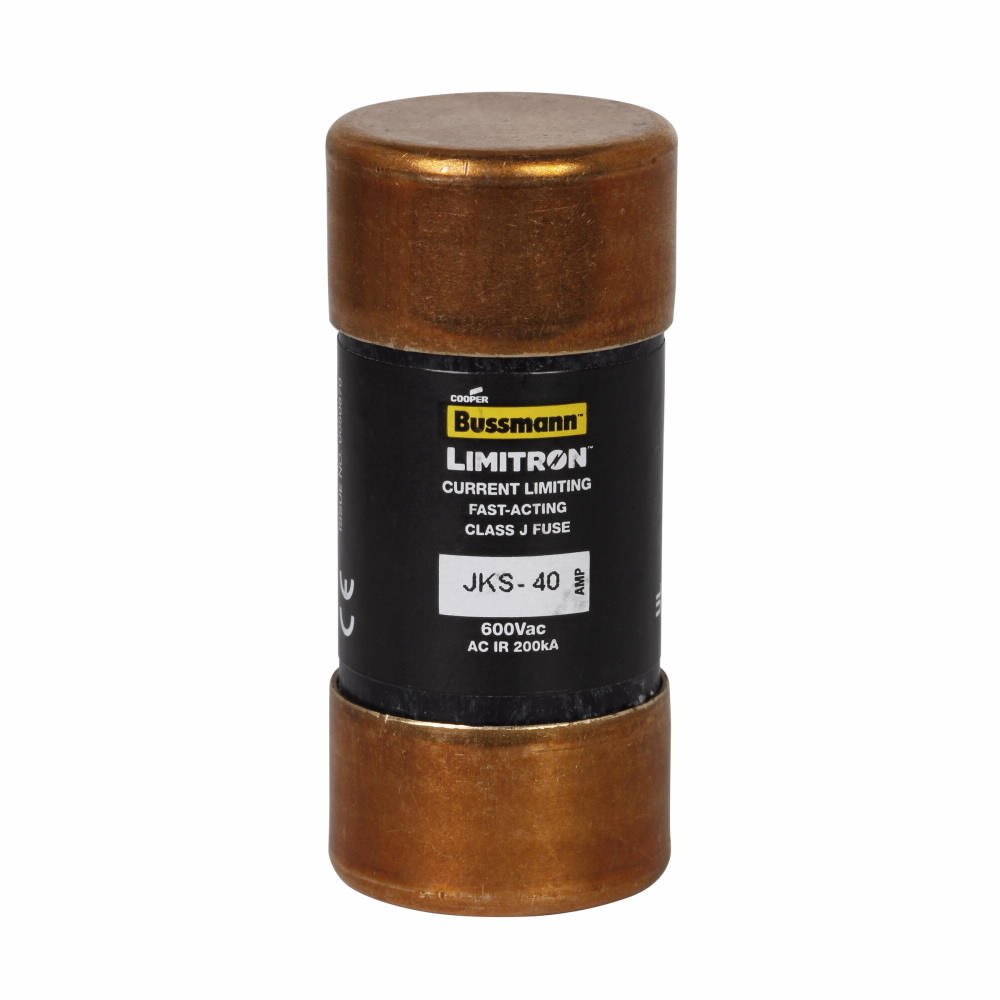

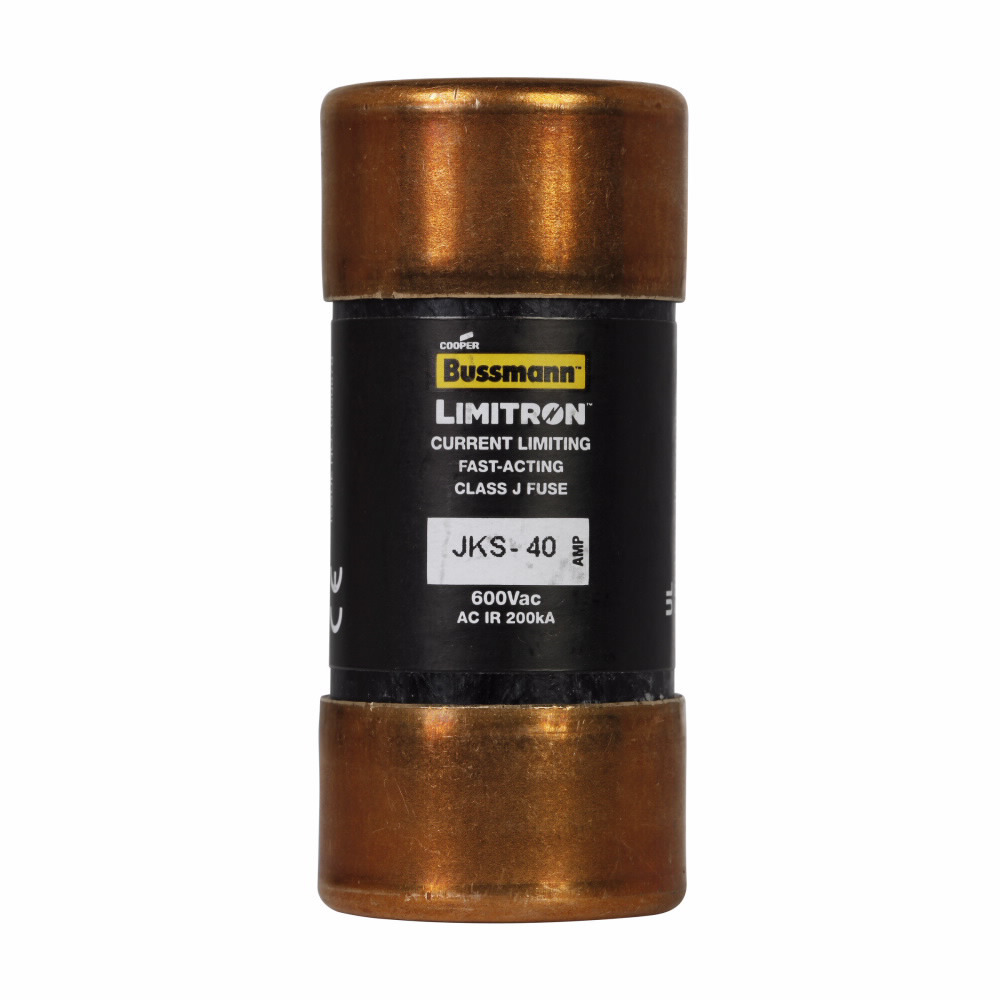

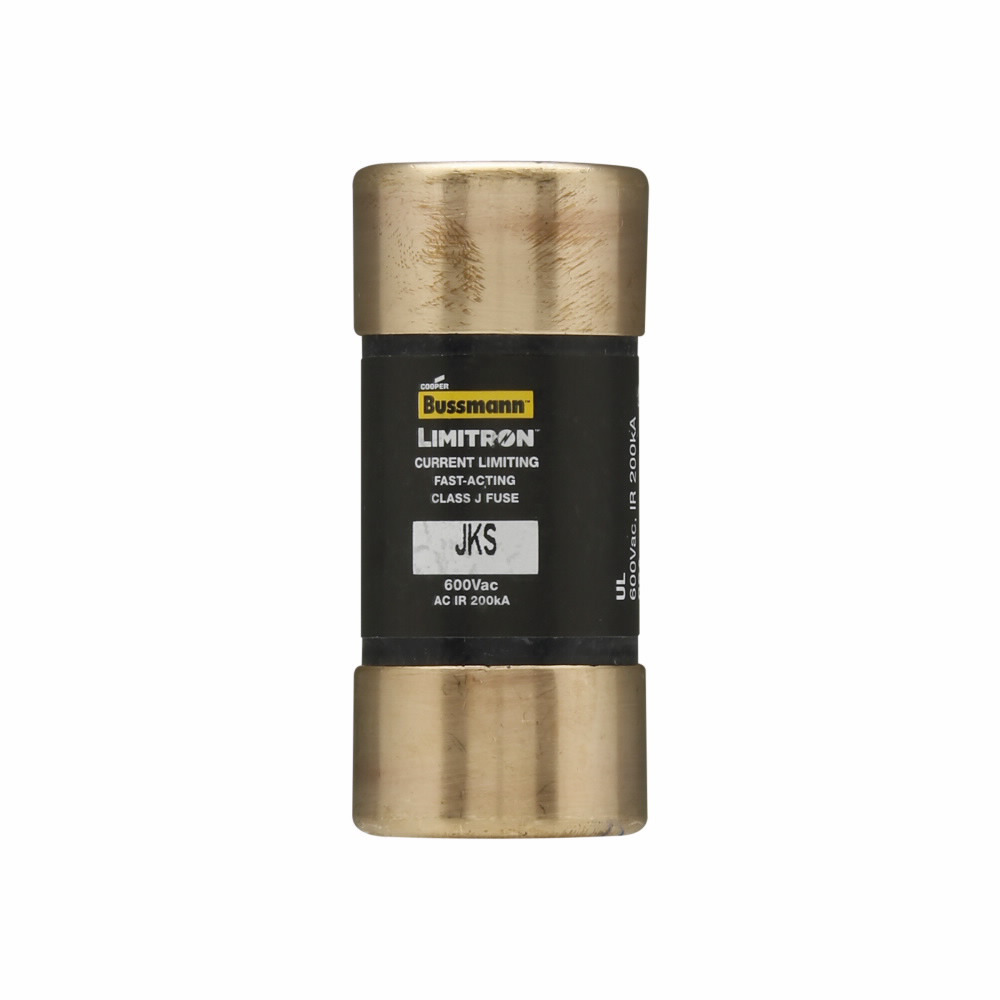

Eaton Bussmann series JKS fuse, LIMITRON Fast-acting fuse, Power panelboards, machinery disconnects, 40 A, 1, Class J, Non-indicating, Ferrule end x ferrule end, 200 kAIC at 600 Vac, Standard, 10, 600 V
- MFR:
- Eaton Bussmann
- MFR #:
- JKS-40
- UPC:
- 051712630405
- Item #:
- 426118
Eaton Bussmann series JKS fuse, LIMITRON Fast-acting fuse, Power panelboards, machinery disconnects, 40 A, 1, Class J, Non-indicating, Ferrule end x ferrule end, 200 kAIC at 600 Vac, Standard, 10, 600 V
- MFR #:
- JKS-40
- UPC:
- 051712630405
- Item #:
- 426118
Bussmann's UL Class J fuse products extend both our Low-Peak family of products with our LPJ_SP and LPJ_SPI dual-element, time-delay fuses as well as our Limitron line offering fast-acting JKS fuses. The LPJ fuses provide industry leading 300,000 amp interrupting rating at 600Vac RMS Sym and 100kA Vdc while delivering a minimum of 10 seconds of 500 percent rated current ride-through performance which is ideal for sizing of high inrush loads. The LPJ products are available with optional permanent replace fuse indication. These UL Class J products in sizes 1 to 600 amps provide exceptional performance at 600 Vac and 300 Vdc (see spec sheets for specific details) in a compact size rejecting footprint
Manuals & Documentation
| Catalog Number | JKS-40 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 40 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 200 kAIC at 600 Vac |
| Special Features | Non-indicating |
| Standard | CE Marked,RoHS Compliant |
| UPC | 051712630405 |
| GTIN | 00051712630405 |
| Item Type | Fuse |
| Weight UOM | Pounds |
| Size | 1.06 In Diameter X 2.38 In Length |
| Voltage Rating | 600 V |
