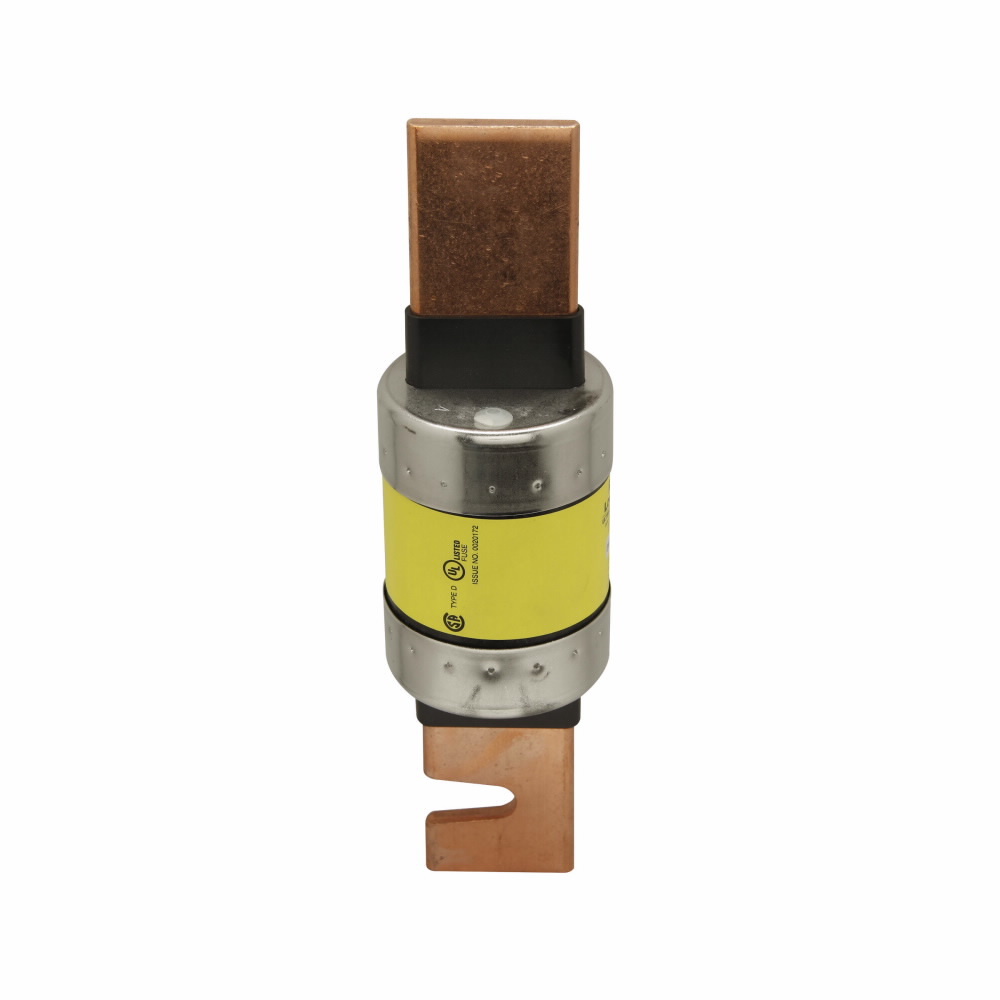

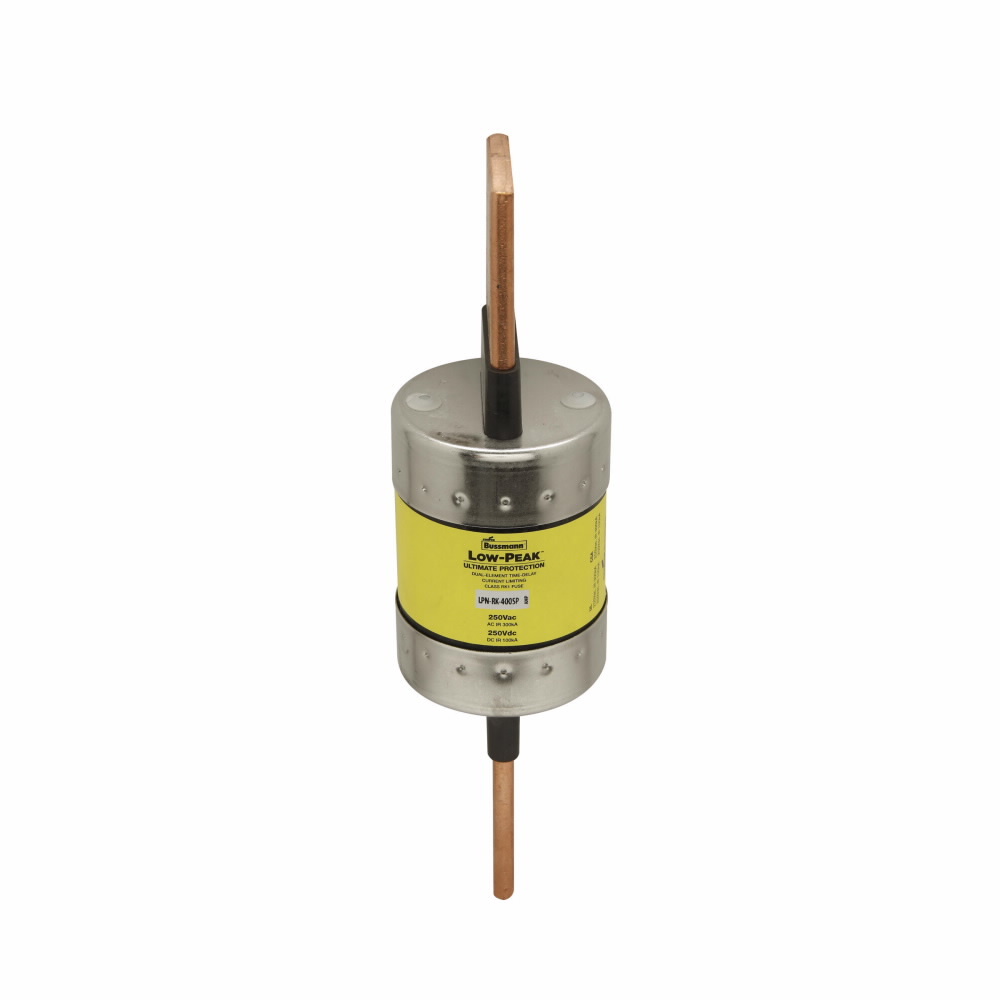

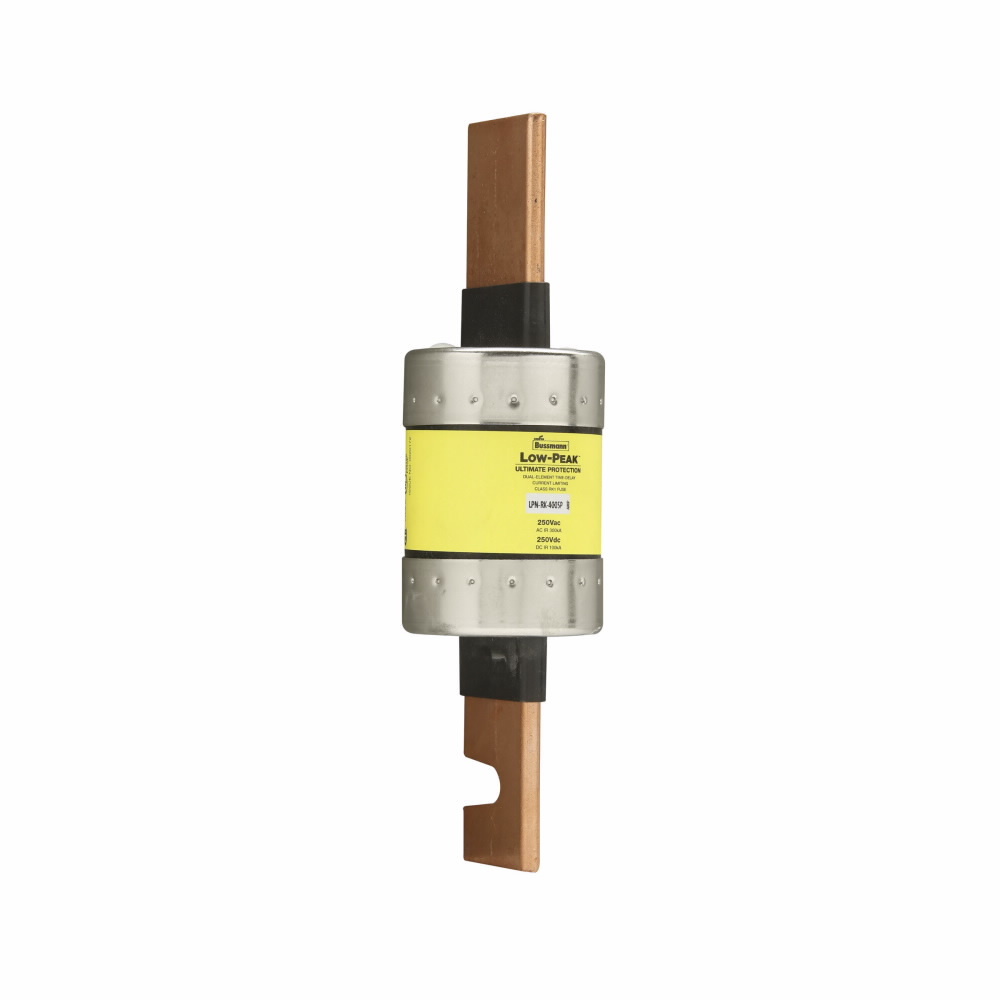

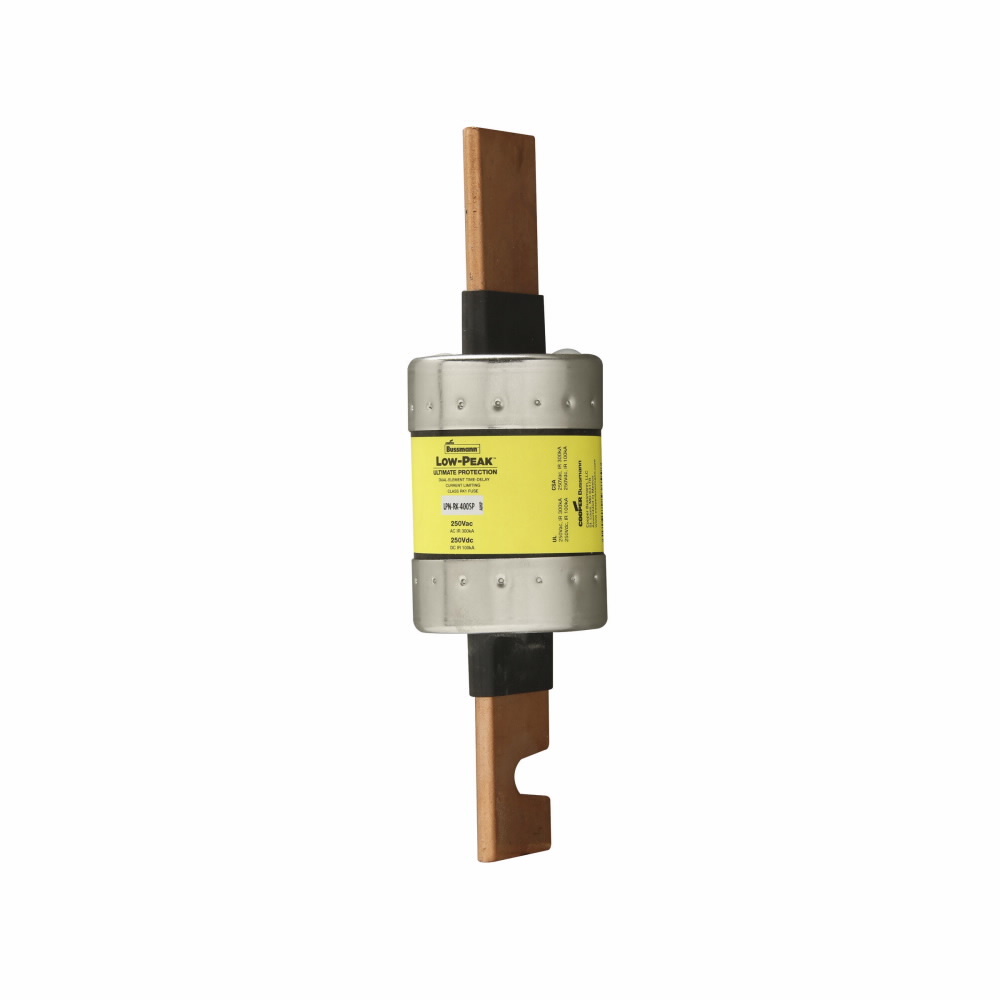

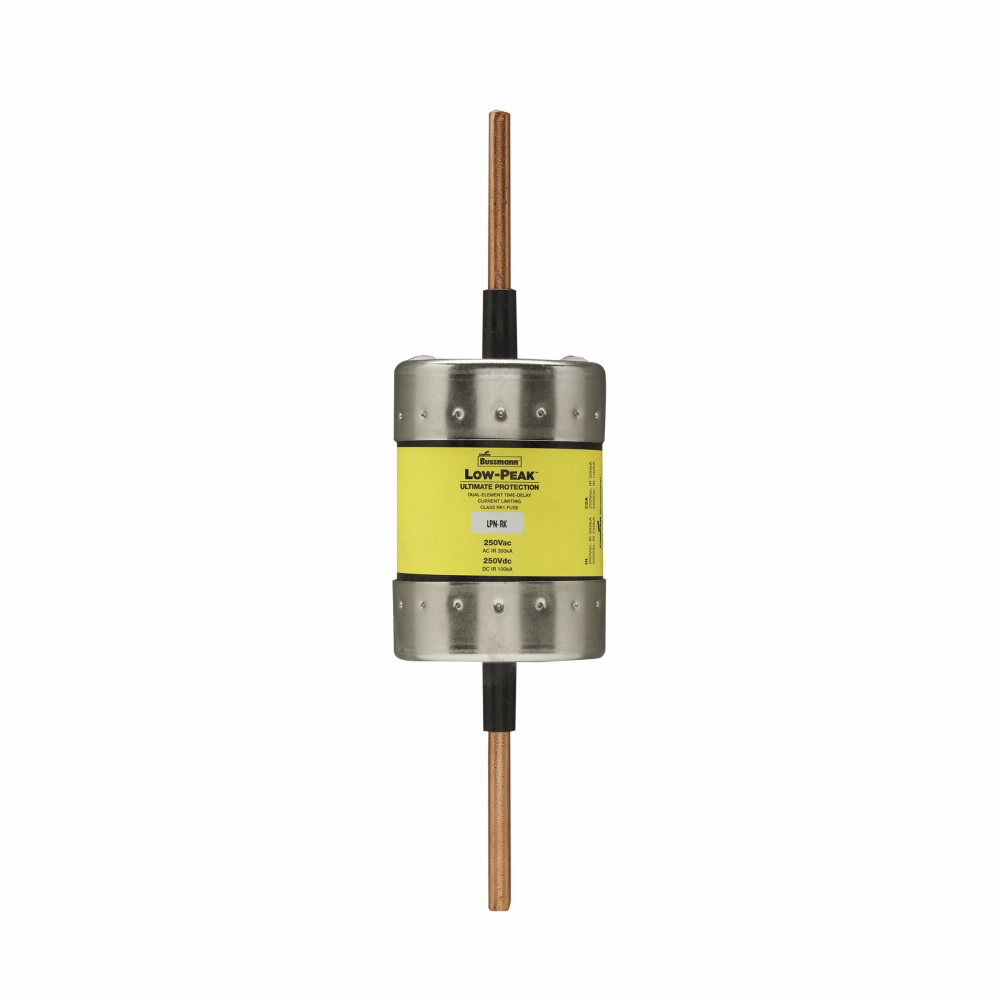

LPN-RK-225SP Low-Peak Current Limiting Time Delay Fuse, 225 A, 250 V AC/DC, 300/100 kAIC Interrupt, RK1 Class, Cartridge Body
- MFR:
- Eaton Bussmann
- MFR #:
- LPN-RK-225SP
- UPC:
- 051712538510
- Item #:
- 425828
LPN-RK-225SP Low-Peak Current Limiting Time Delay Fuse, 225 A, 250 V AC/DC, 300/100 kAIC Interrupt, RK1 Class, Cartridge Body
- MFR #:
- LPN-RK-225SP
- UPC:
- 051712538510
- Item #:
- 425828
Bussmann's UL Class RK1 fuse offering includes the industry's most recognized Low-Peak dual-element, current-limiting, time-delay fuses (LPN-RK and LPS-RK) which are also available with optional indication on select ratings (see product data sheet). Complementing the Low-Peak product offering is Bussmann's Limitron family of fast-acting fuses (KTN-R, KTS-R, KWN-R and KWS-R) fuses.
Manuals & Documentation
| Catalog Number | LPN-RK-225SP |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 225 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Blade end x blade end |
| Interrupt Rating | 300 kAIC at 250 Vac|100 kAIC at 250 Vdc |
| Response Time | 10 S at 500% |
| Special Features | Non-indicating, High in-rush current motor protection |
| Standard | CE Marked,RoHS Compliant |
| UPC | 051712538510 |
| GTIN | 00051712538510 |
| Item Type | Fuse |
| Weight UOM | Pounds |
| Size | 2.36 In Diameter X 8.63 In Length |
| Voltage Rating | 250 Vac, 250 Vdc |
