SCHNEIDER ELECTRIC

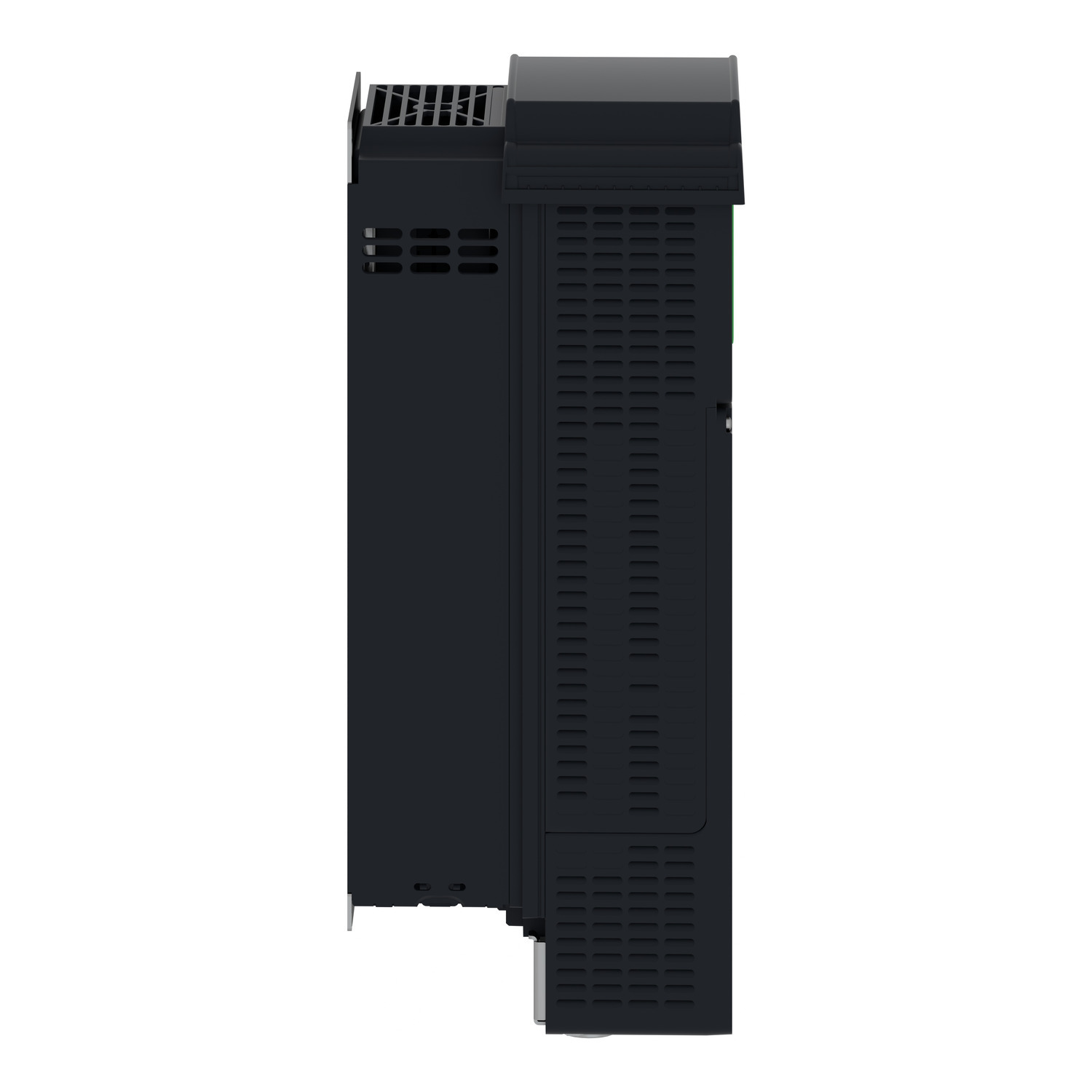

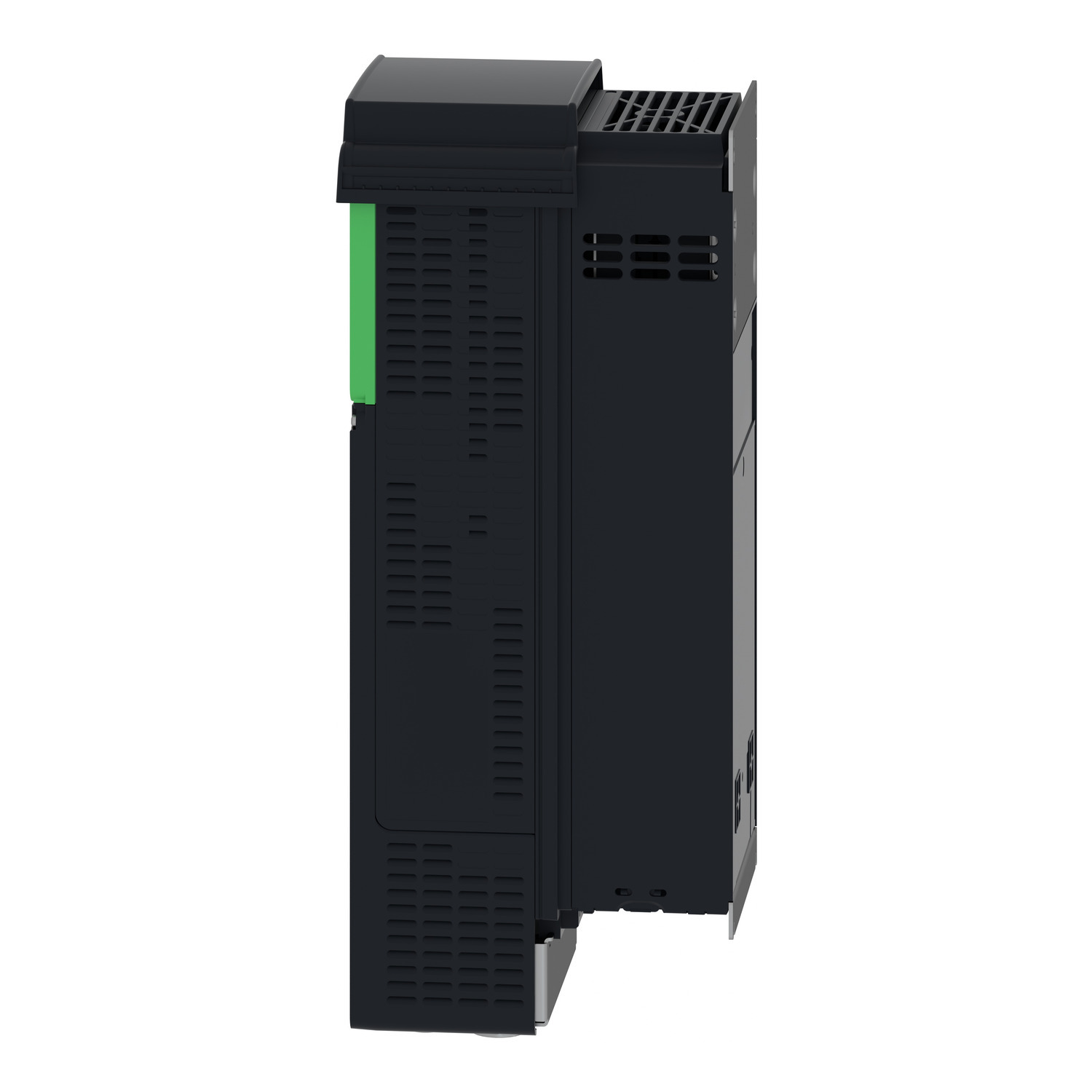

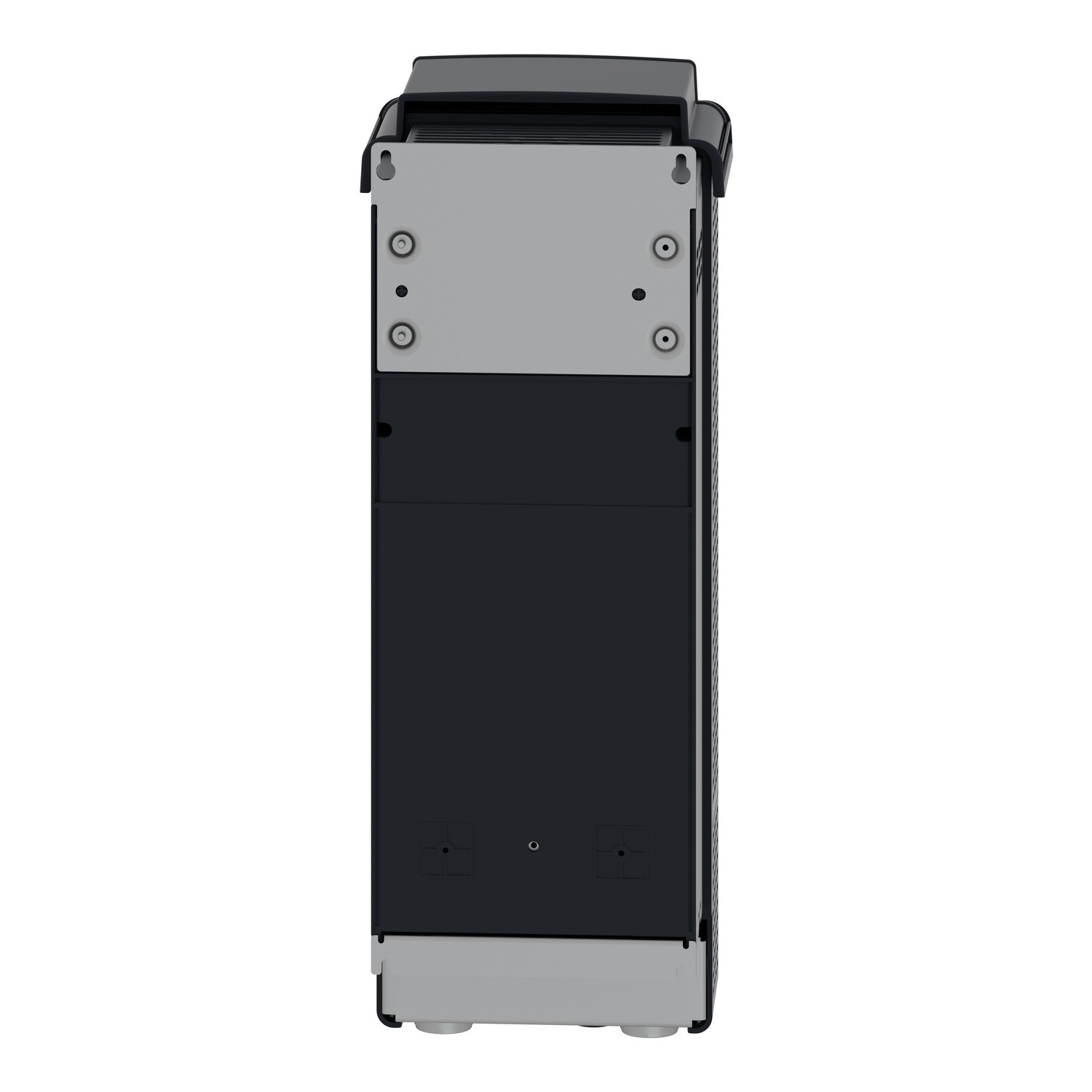

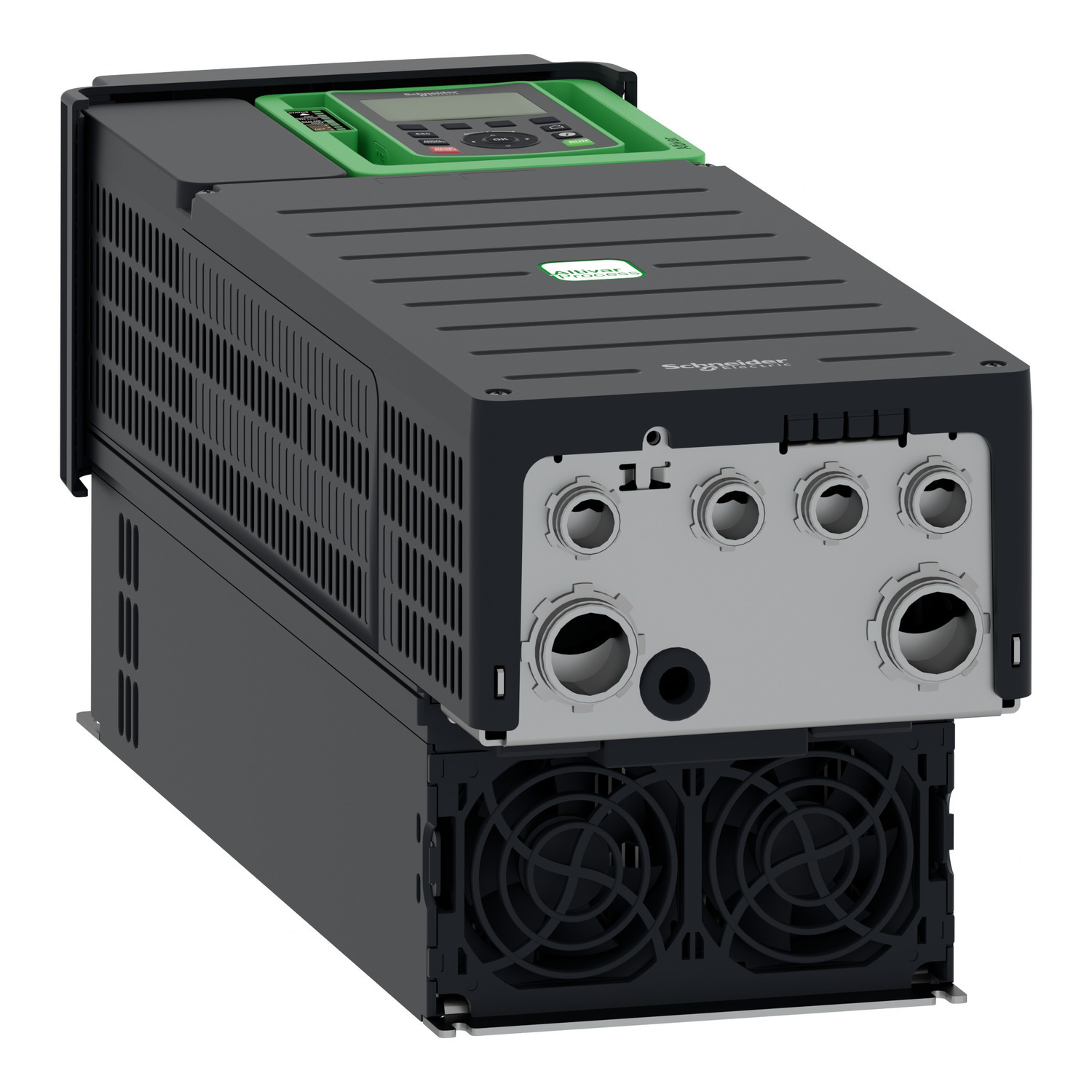

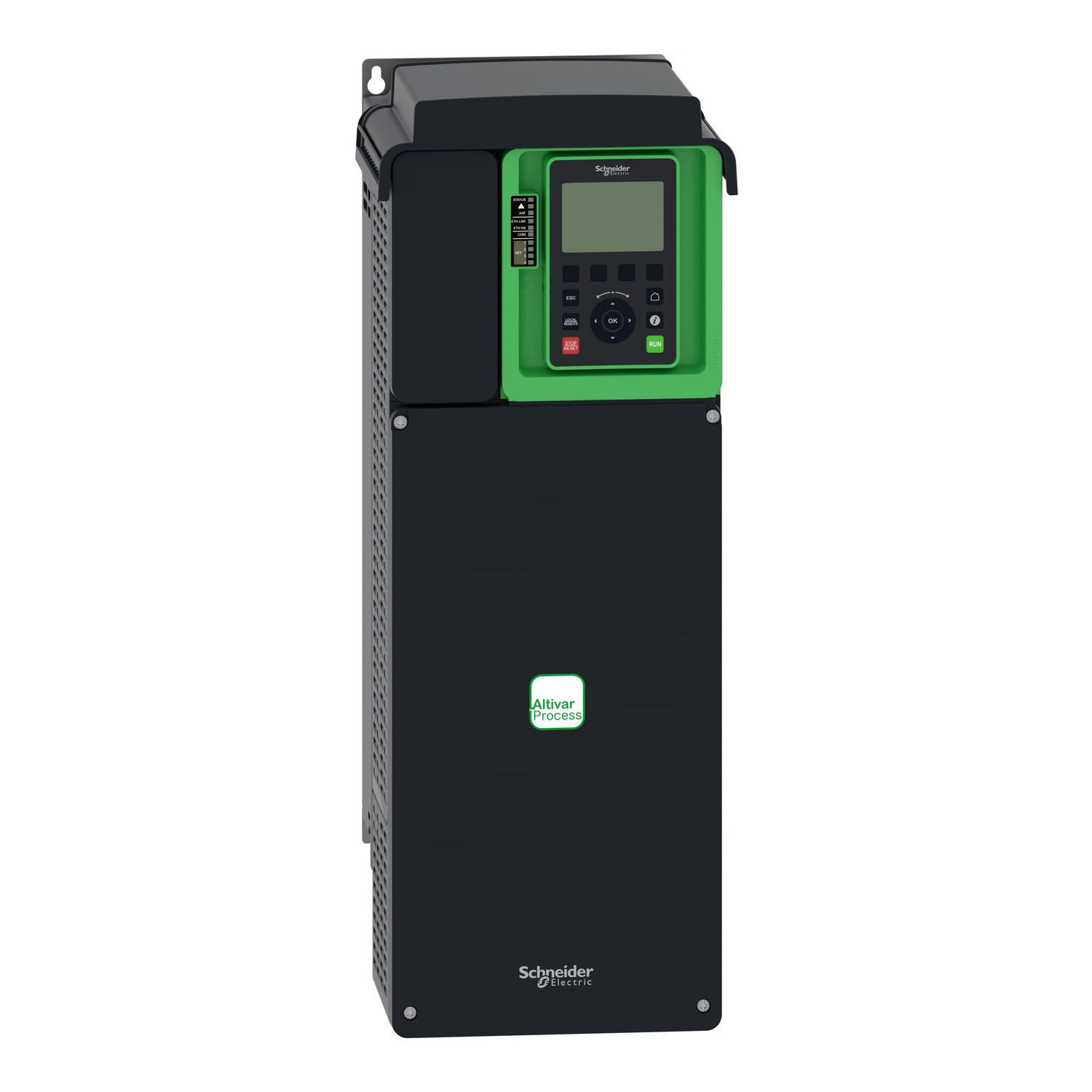

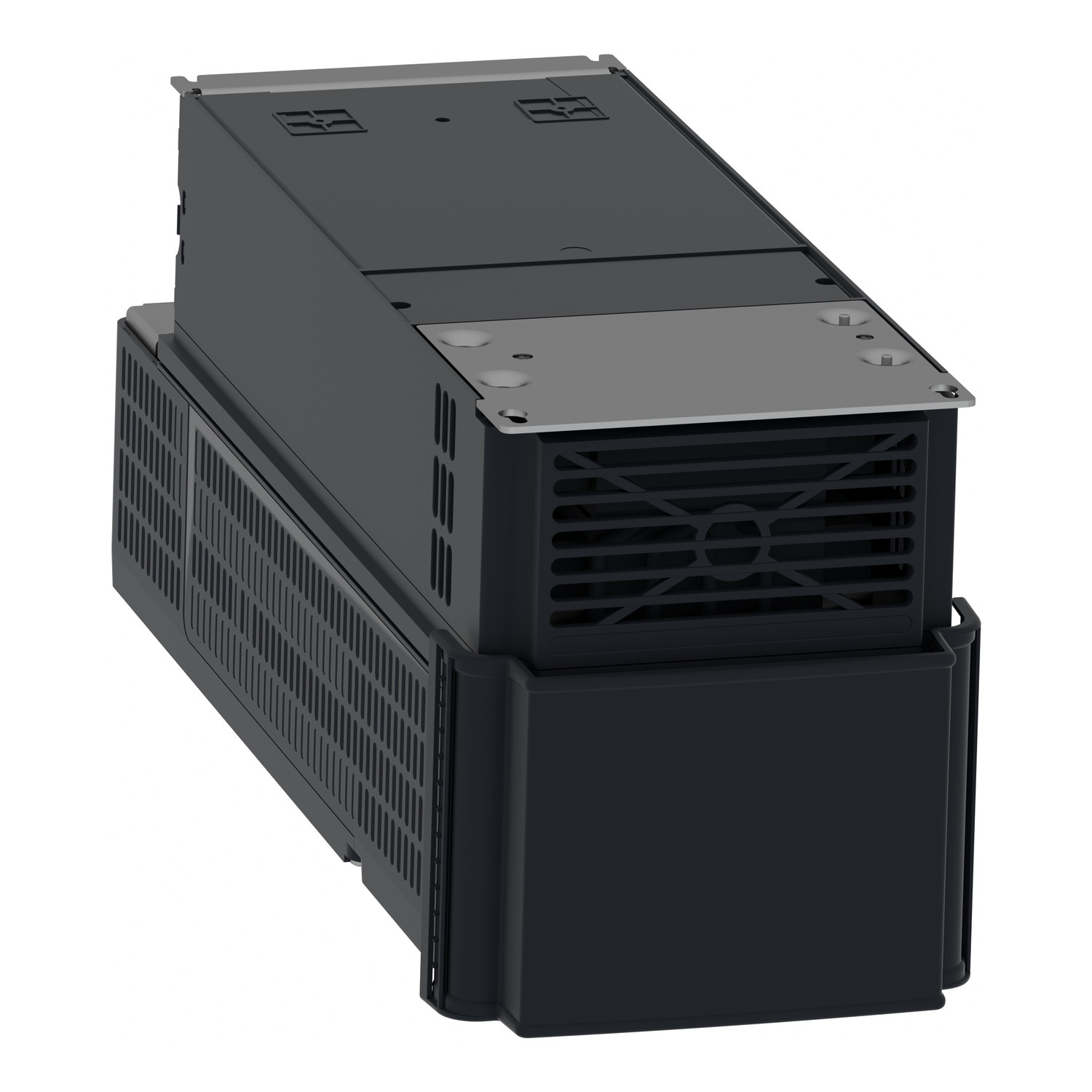

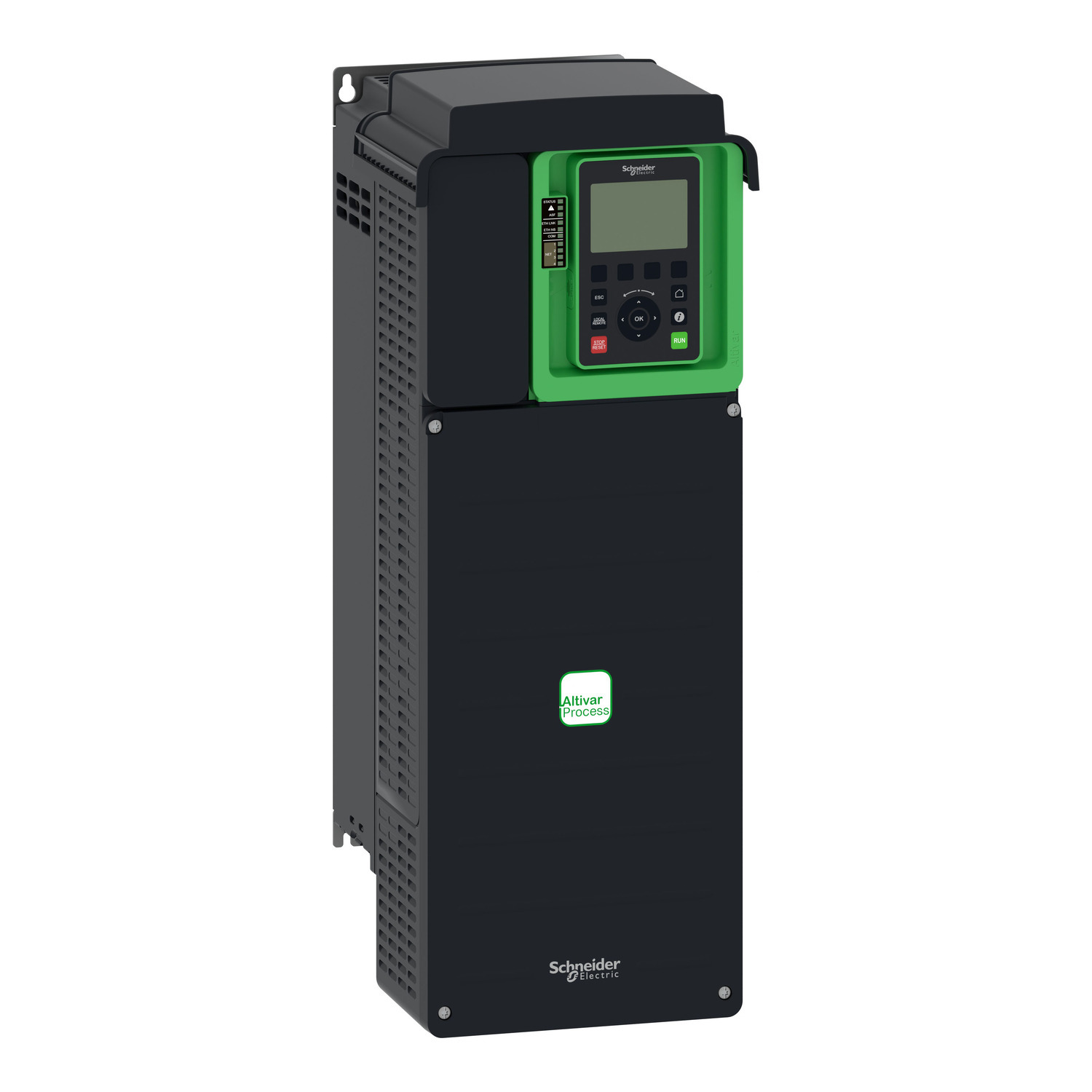

ATV630D11M3 Altivar 3-Phase Variable Speed Drive, 230 V, 32.7 A Heavy Duty/46.8 A Normal Duty, 15 hp, 8.31 in W x 9.13 in D

MFR:
Schneider Electric
MFR #:
ATV630D11M3
Item #:
424832

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 200V to 240V AC. This drive provides up to 30% energy saving when on standby due to the innovative Stop and Gooperation without additional costs. It is suitable for motors with power rating up to 11kW / 15hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 7.5kW / 10hp for applications requiring significant overload (up to 150%). It weighs 13.8kg and its dimensions are, 211mm wide, 546mm high, 232mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 ) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.

Manuals & Documentation
Catalog Number ATV630D11M3
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Country of Origin India
Made in USA No
Accuracy +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 Degrees C analog input;+/- 1 % AO1, AO2 for a temperature variation 60 Degrees C analog output
Connector Type RJ45 on the remote graphic terminal)Ethernet/Modbus TCP;RJ45 on the remote graphic terminal)Modbus serial
Degree of Protection UL type 1 UL 508C
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=415884296&lang=en-us
GTIN 03606480701474
