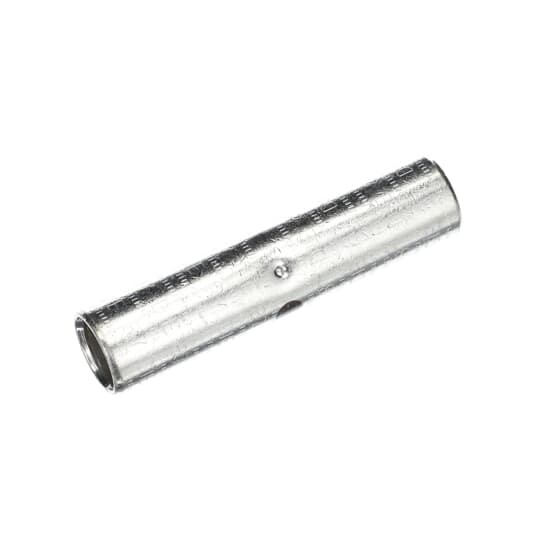

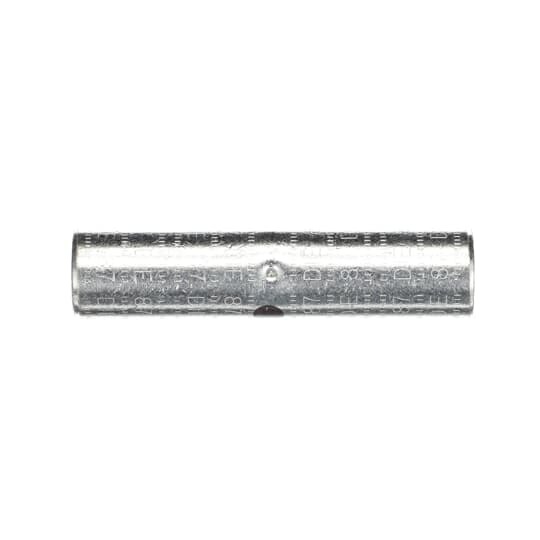

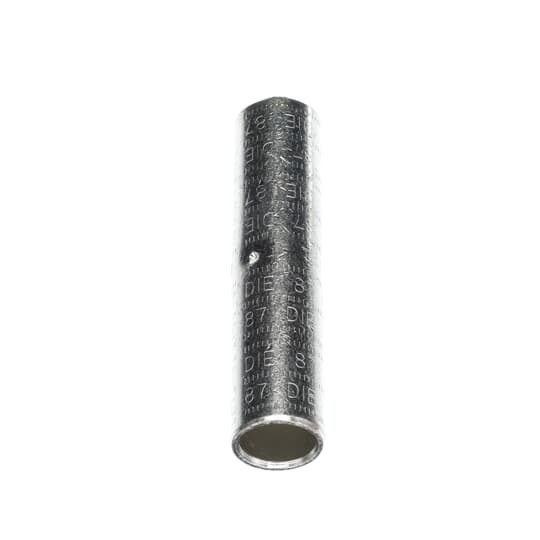

54818 Color-Keyed 2-Way Long Barrel Splice Connector, 500 kcmil Copper Conductor, Die Code: 87, 4-3/4 in L, Copper
- MFR:
- ABB - Installation Products
- MFR #:
- 54818
- UPC:
- 786210548180
- Item #:
- 42466
54818 Color-Keyed 2-Way Long Barrel Splice Connector, 500 kcmil Copper Conductor, Die Code: 87, 4-3/4 in L, Copper
- MFR #:
- 54818
- UPC:
- 786210548180
- Item #:
- 42466
Manuals & Documentation
| Catalog Number | 54818 |
| Manufacturer | ABB - Installation Products |
| Brand | Color-Keyed |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Applications certified to 600 V and recommended up to 35 kV¥ |
| Color | Brown |
| Finish | Tin-Plated |
| Material | Copper |
| Special Features | Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost |
| Standard | UL E9809, CSA 4503 |
| UPC | 786210548180 |
| GTIN | 00786210548180 |
| Item Type | Splice Connector |
| Voltage Rating | 600 V |
| Cross Reference Products | ABBInstall 54018|ABBInstall 54818|ABBInstall CU500|ABBInstall TC-500|Amprobe 53089|Appleton OZG XW5050|Burndy YS34|Burndy YS34T|Dossert DPC-50|Dossert DPC50T |
