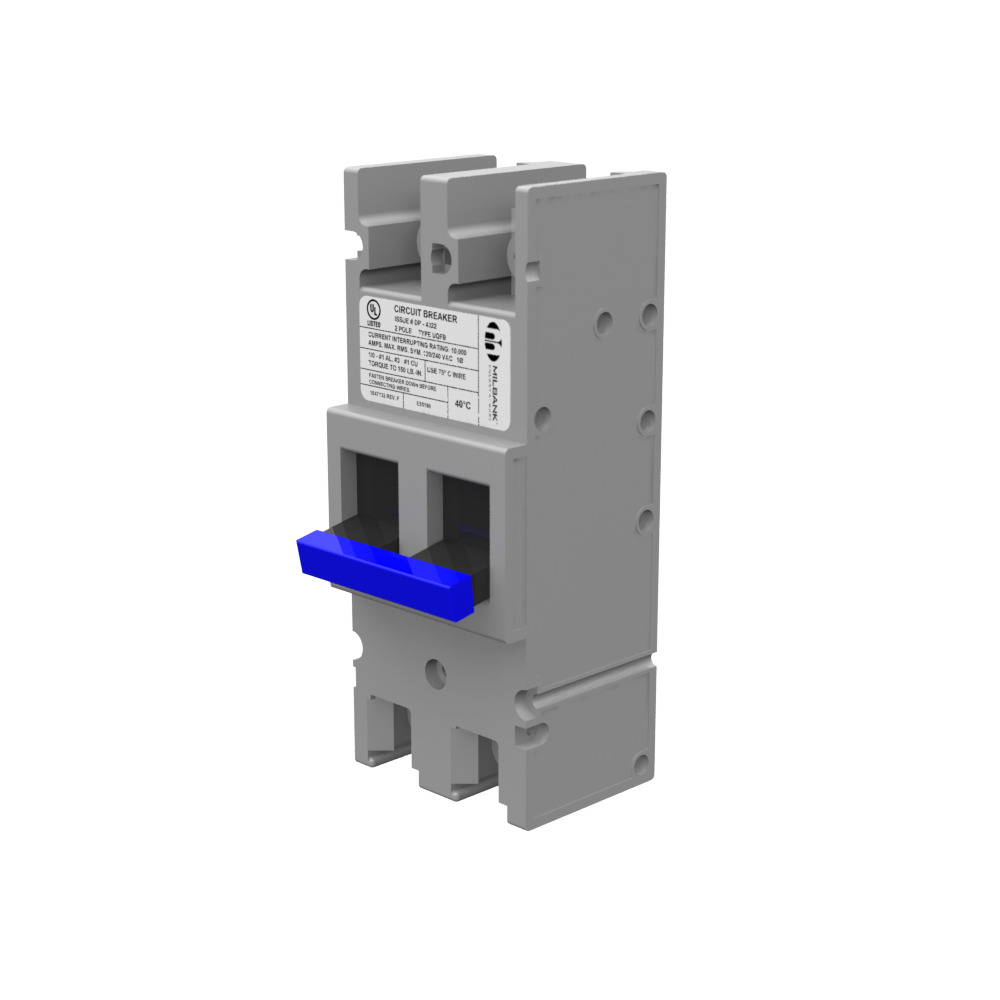

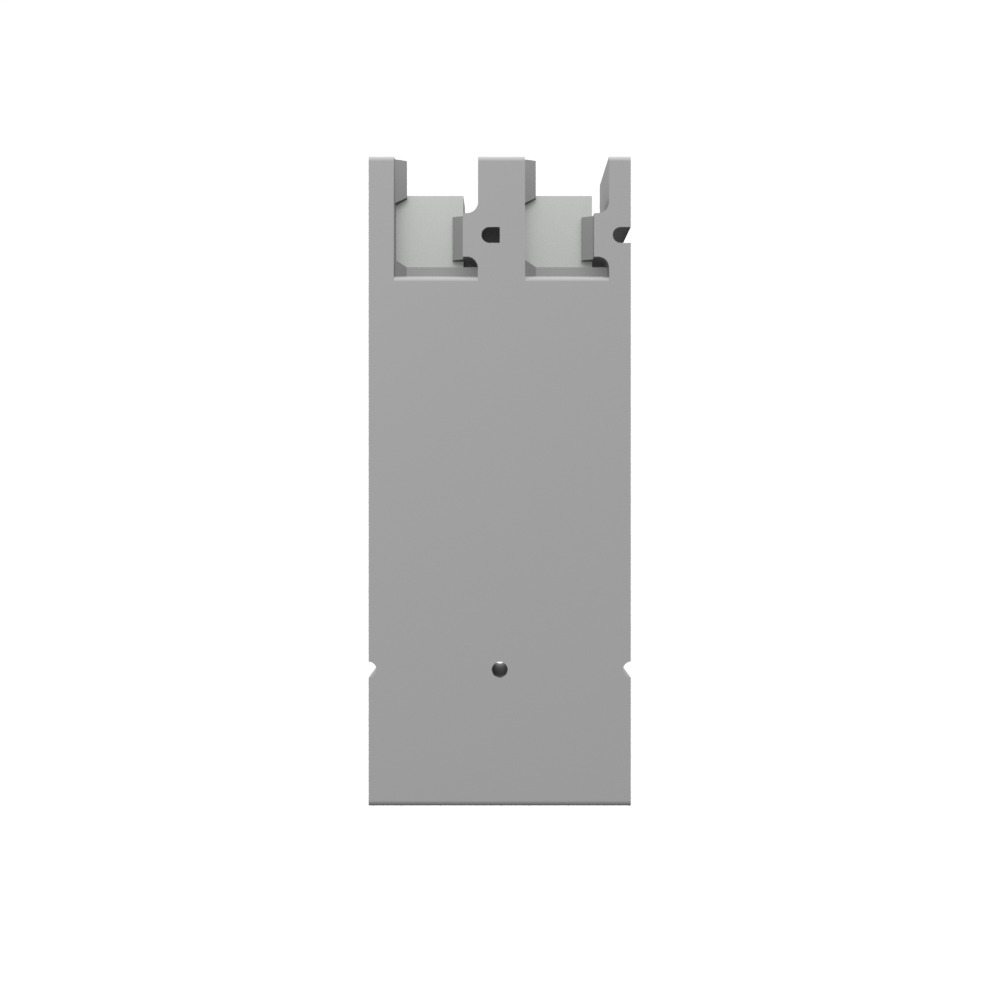

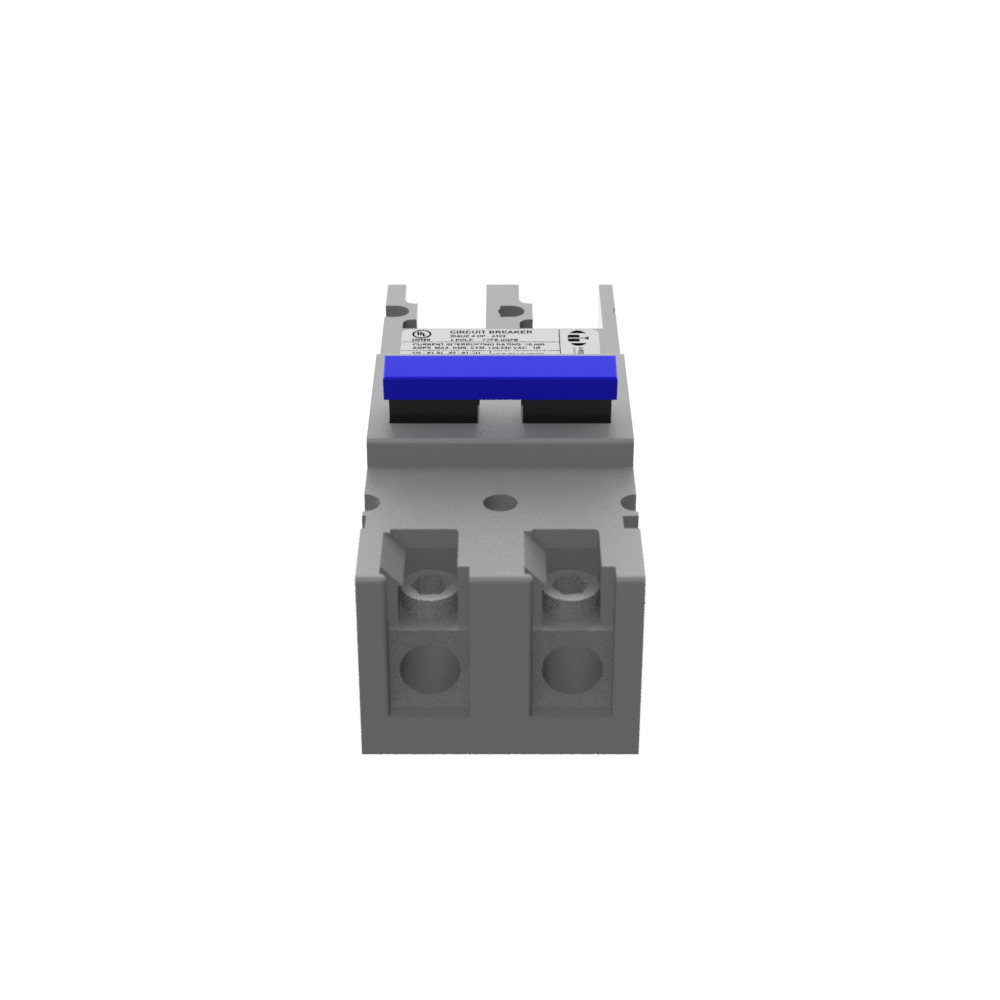

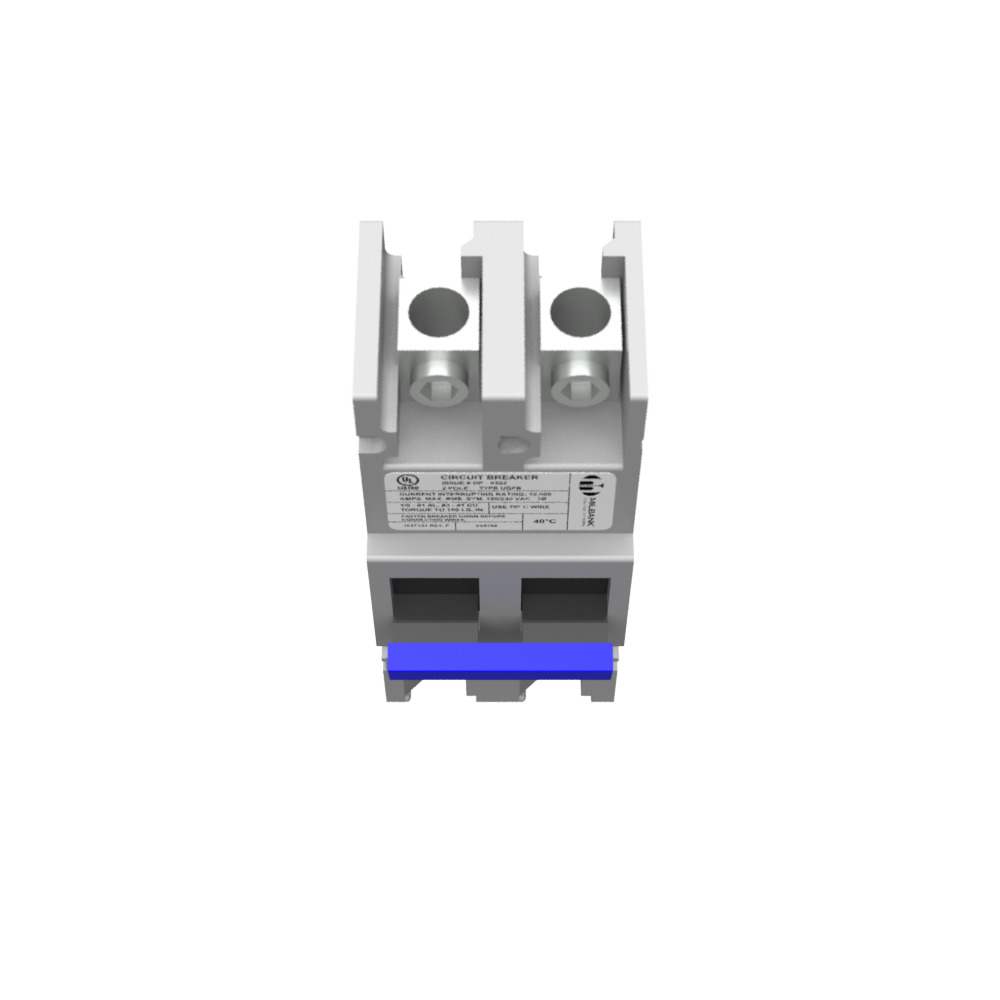

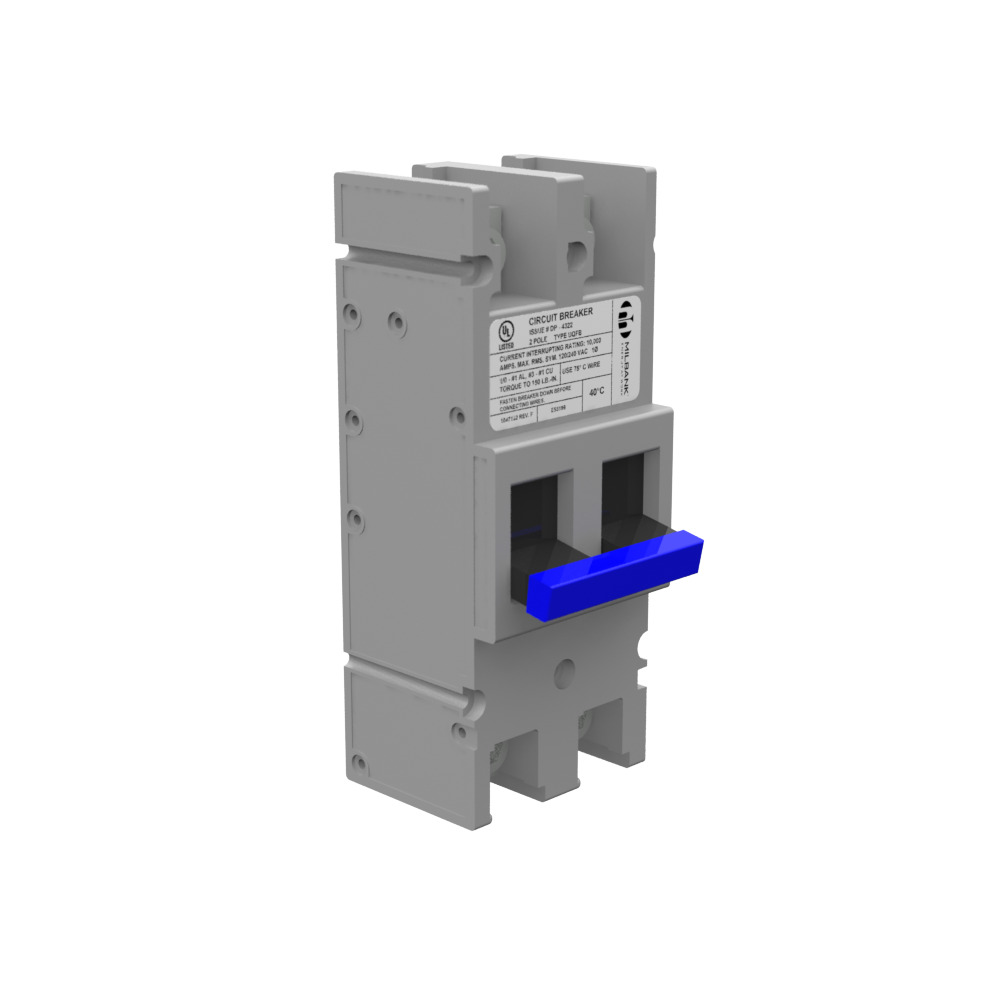

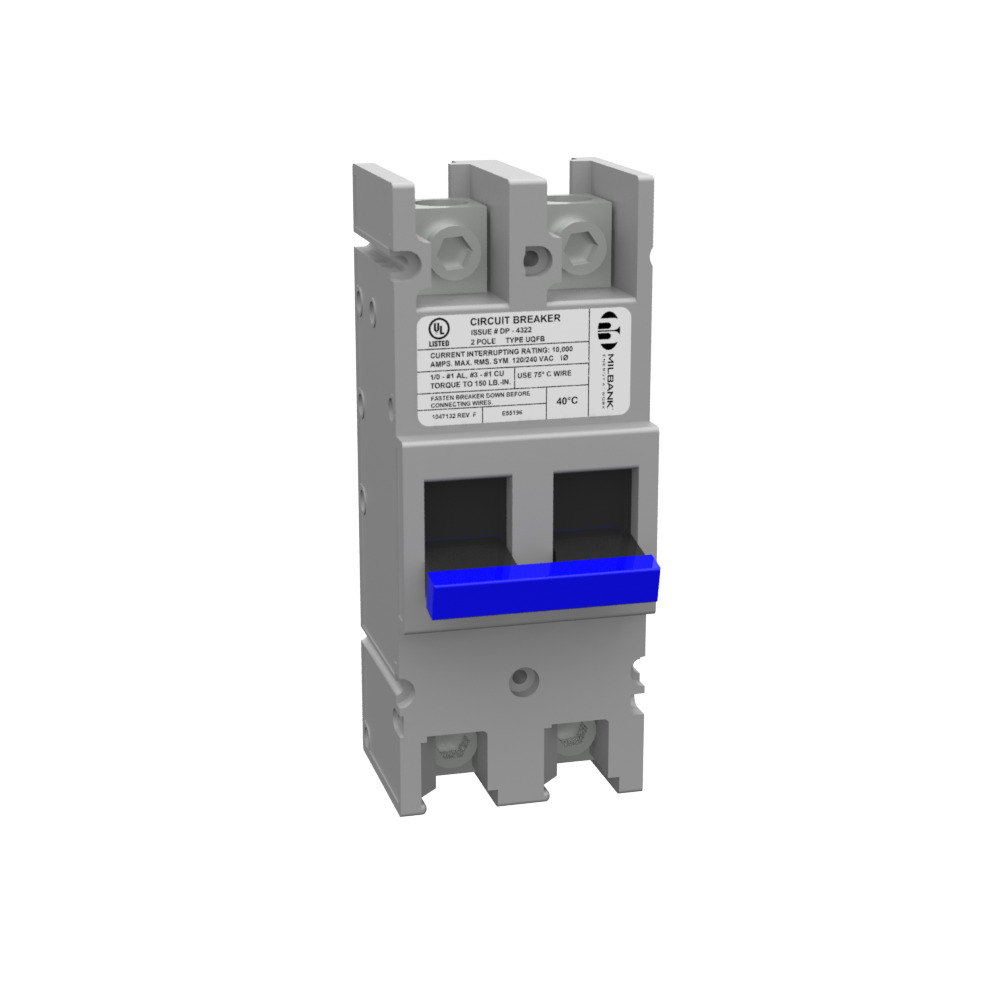

MILBANK 100 AMP 2 POLE 240 VOLT BOLT-ON 22K AIC
Manuals & Documentation
| Catalog Number | UQFBH-100 |
| Manufacturer | Milbank |
| Brand | Milbank |
| Country of Origin | United States |
| Made in USA | Yes |
| Actuator | Lever |
| Amperage Rating | 100 |
| Application | Metering Accessory |
| Auxiliary Contacts | No Auxiliary Contacts |
| Connection | Lug to Lug |
| Current Rating | 100 Ampere |
| Display | UQFBH-100 100A 2P BOLT-ON CB 22K 20153 |
| Frame | F-Frame |
| Frequency Rating | 60 Hertz |
| Interrupt Rating | 22,000 Ampere Interrupting Capacity |
| Material | Non Metallic |
| Number of Poles | 2 |
| Phase | 1 |
| Special Features | Bolt On |
| Standard | UL Listed |
| UPC | 784572201538 |
| GTIN | 00784572201538 |
| Item Type | Current Interrupting Device |
| Length | 3.281 |
| Length UOM | Inch |
| Width | 3 |
| Width UOM | Inch |
| Height | 7.438 |
| Height UOM | Inch |
| Operating Temperature | 40 Degrees Celsius |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 240 Volts Alternating Current |
