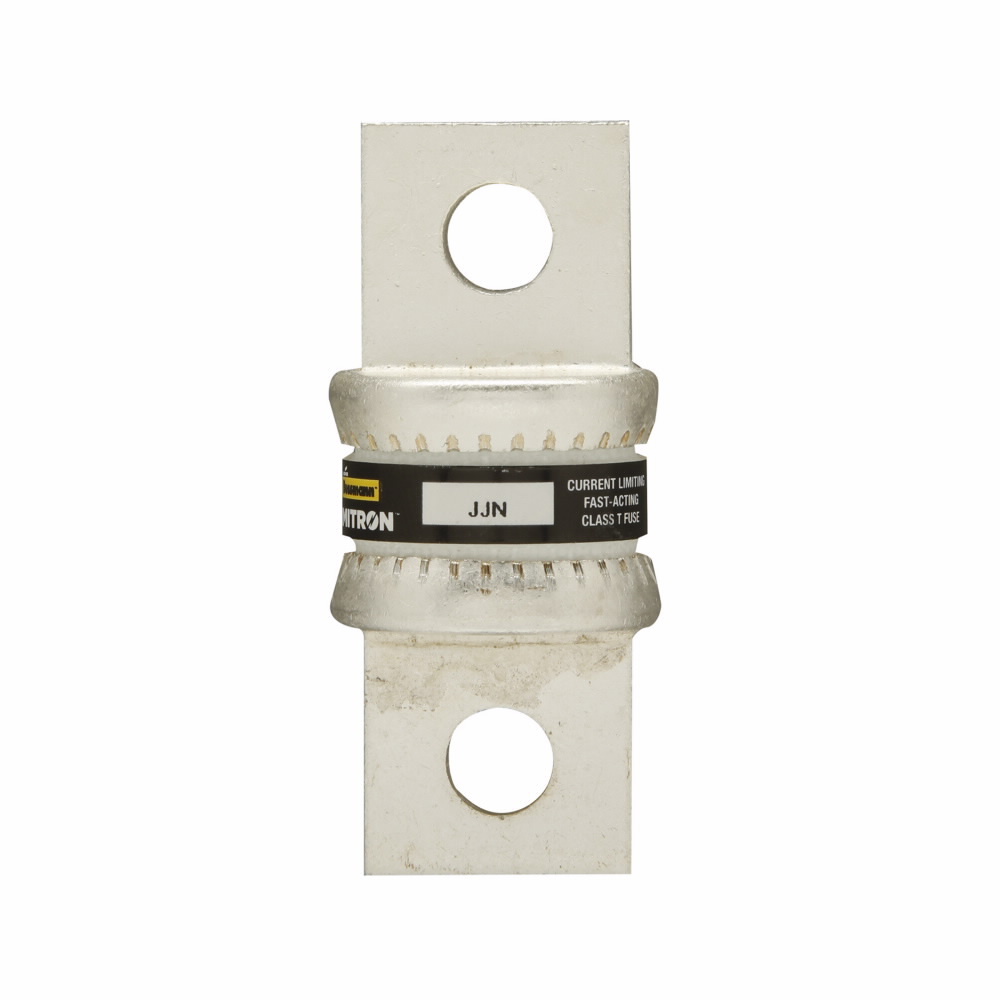

JJN-125 Limitron T-Tron Current Limiting Very Fast Acting Fuse, 125 A, 300 V AC/160 V DC, 200/20 kAIC Interrupt, T Class, Cartridge Body
- MFR:
- Eaton Bussmann
- MFR #:
- JJN-125
- UPC:
- 051712627122
- Item #:
- 422886
JJN-125 Limitron T-Tron Current Limiting Very Fast Acting Fuse, 125 A, 300 V AC/160 V DC, 200/20 kAIC Interrupt, T Class, Cartridge Body
- MFR #:
- JJN-125
- UPC:
- 051712627122
- Item #:
- 422886
Bussmann's Class T current-limiting, fast-acting fuses. Provides 10X better current limitation to help prevent equipment damage caused by short-circuit events. 200 kA Interrupting rating complies with NEC Section 110.9 for todays large capacity systems. Small, space-saving fuses provide a high degree of current limitation on short-circuits for excellent component protection.
Manuals & Documentation
| Catalog Number | JJN-125 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Multiple |
| Made in USA | No |
| Amperage Rating | 125 |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Bolted blade end x bolted blade end |
| Interrupt Rating | 20 kAIC at 160 Vdc|200 kAIC at 300 Vac |
| Standard | RoHS Compliant,CE Marked |
| UPC | 051712627122 |
| GTIN | 00051712627122 |
| Item Type | Fuse |
| Weight UOM | Pounds |
| Size | 0.88 In Diameter X 2.44 In Length |
| Voltage Rating | 300 Vac, 160 Vdc |
