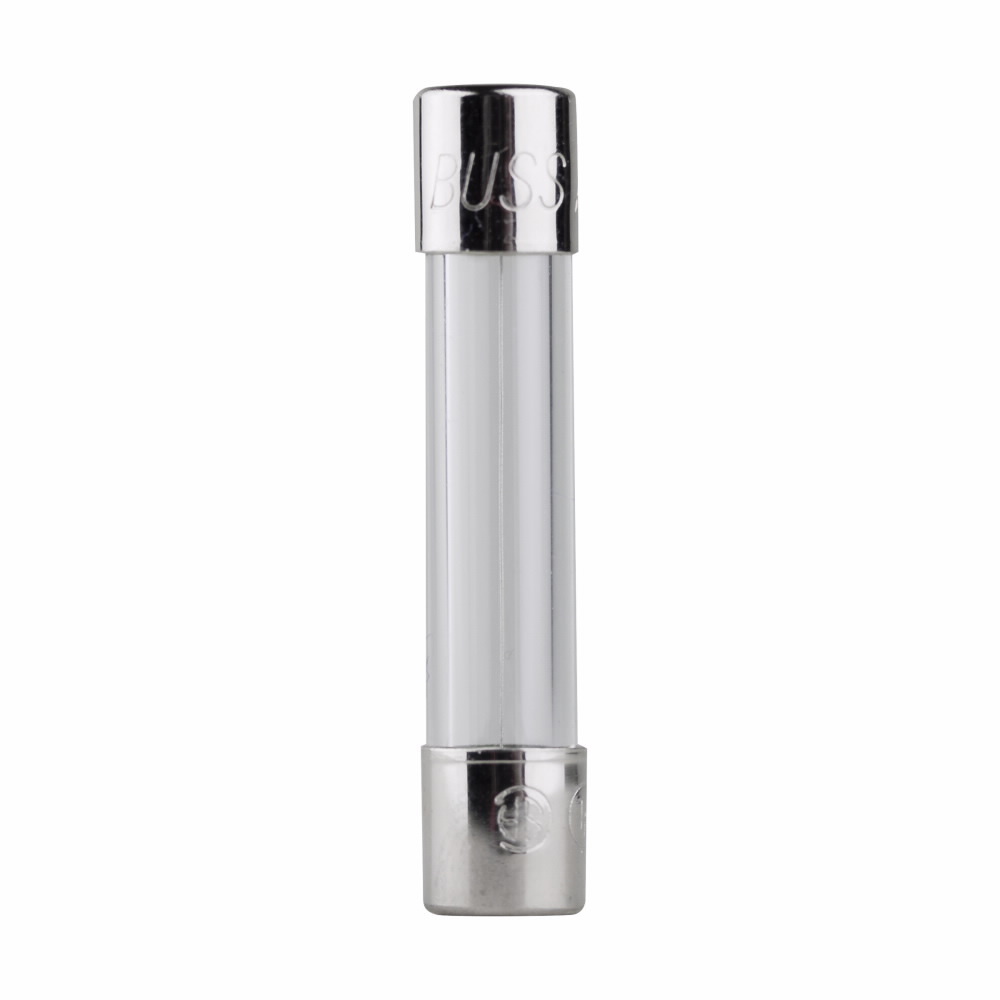

AGC-3/4-R Small Dimension Fast Acting Fuse With Nickel Plated Brass End Cap, 0.75 A, 250 V AC, 35 A, 10 kA Interrupt, Cylindrical Body
- MFR:
- Eaton Bussmann
- MFR #:
- AGC-3/4-R
- UPC:
- 051712655163
- Item #:
- 422575
AGC-3/4-R Small Dimension Fast Acting Fuse With Nickel Plated Brass End Cap, 0.75 A, 250 V AC, 35 A, 10 kA Interrupt, Cylindrical Body
- MFR #:
- AGC-3/4-R
- UPC:
- 051712655163
- Item #:
- 422575
Fast-acting, glass tube 1/4" x 1-1/4" ferrule fuse designed to UL 248-14 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation. Eaton's AGC fast-acting, glass tube 1/4" x 1-1/4" ferrule fuses are designed to UL 248-14 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.
| Catalog Number | AGC-3/4-R |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Taiwan, Province Of China |
| Made in USA | No |
| Application | Ind Facilities & Factories - Facility: Safety and Security Systems |
| Connection | Ferrule end x ferrule end |
| Interrupt Rating | 35 AIC at 250 Vac|10 kAIC at 125 Vac |
| Material | Glass tube|Nickel-plated brass end cap construction |
| Response Time | 60 min at 135%, 120 sec at 200% |
| Special Features | Interrupt Rating 35 Amp at 250 Vac, 10000 Amp at 125 Vac, Material Glass Tube, Nickel Plated Brass Endcap, ROHS Compliant |
| Standard | CE Marked,RoHS Compliant |
| UPC | 051712655163 |
| GTIN | 00051712655163 |
| Item Type | Fast-acting glass tube fuse |
| Size | 1/4 In Diameter X 1-1/4 In Length |
| Voltage Rating | 250 Vac, 32 Vdc (self certified) |
