SQUARE D

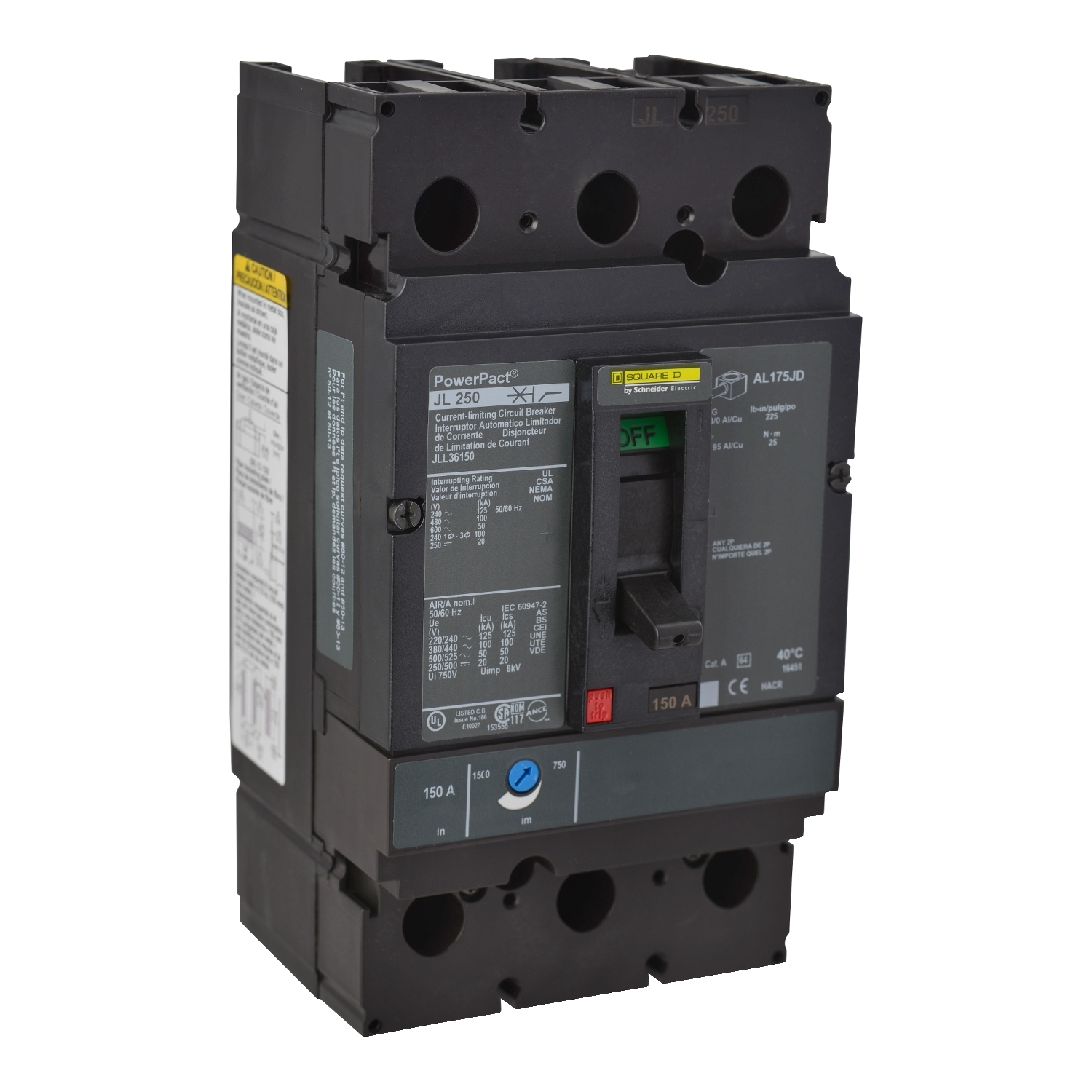

JLL36175 PowerPact Type JLL Molded Case Circuit Breaker, 600 V AC/500 V DC, 175 A, 20 kA at 250 VDC/125 kA at 240 VAC/100 kA at 480 VAC/50 kA at 600 VAC/50 kA at 500 VDC/500 VDC/600 VAC Interrupt, 3 Poles, Thermal Magnetic Trip

MFR:
Schneider Electric
MFR #:
JLL36175
UPC:
785901883838
Item #:
42238

PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 50kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 175A, 3 pole, circuit breaker has a breaking capacity of 50kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals & Documentation
Catalog Number JLL36175
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Actuator Toggle
Application HACR rated
Connection Lugs, line;lugs, load; AWG 4...AWG 4/0 aluminium/copper terminal
Frequency Rating 50/60 Hz
Number of Poles 3
Special Features Modbus;Overload protection;short-circuit protection
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=426397&lang=en-us
UPC 785901883838
GTIN 00785901883838
Item Type Circuit breaker
Width 4.09450
Width UOM Inch
Height 7.51970
Height UOM Inch
Trip Type Thermal-magnetic
