Discontinued
Schneider Electric

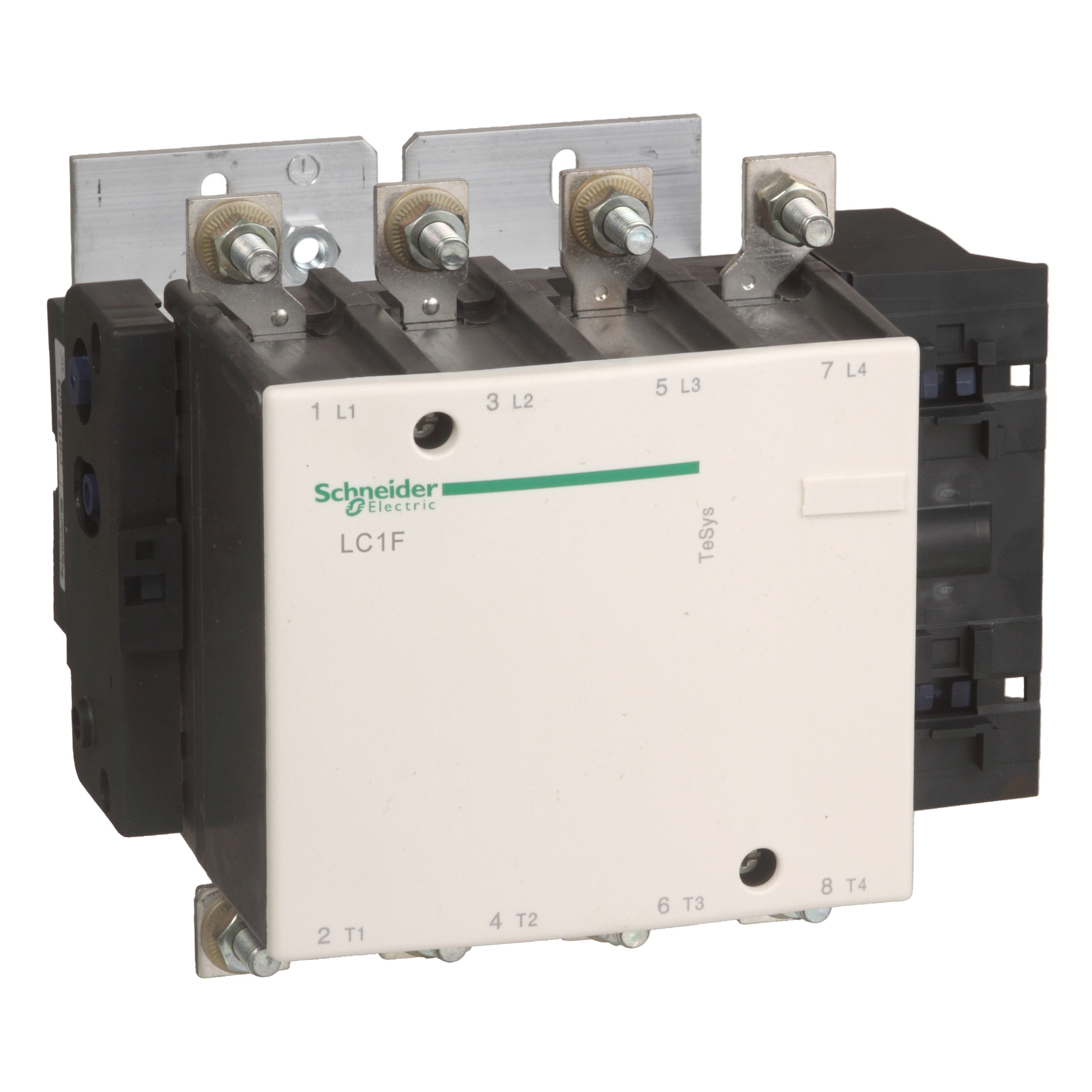

LC1F1154 TeSys F LC1F Non-Reversing IEC Contactor, 200 A, 4NO Contact, 4 Poles

MFR:
Schneider Electric
MFR #:
LC1F1154
Item #:
422083

TeSys F contactor, 4 poles (4NO), 200A/690V AC-1, for non-inductive load applications. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Manuals & Documentation
Catalog Number LC1F1154
Manufacturer Schneider Electric
Brand Schneider Electric
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Application Resistive load
Coil Voltage 24...575 V AC 40...400 Hz with LX9 coil;24...460 V DC with LX4 coil;100...250 V AC 50/60 Hz with LXE coil;100...380 V DC with LXE coil
Standard CB;UL;RINA;DNV;LROS (Lloyds register of shipping);RMRoS;CSA;ABS;BV;UKCA
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=620894&lang=en-us
GTIN 03389110122237
Item Type Contactor;LC1F
