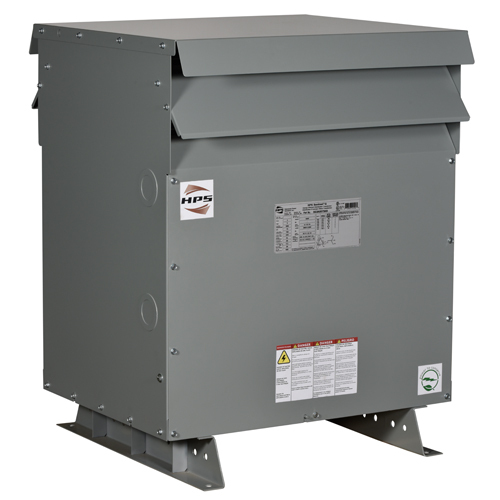

SG3A0075KY Sentinel G Energy Efficient General Purpose Distribution Transformer, 480 Delta V AC Primary, 430Y/248 VAC Secondary, 75 kVA Power Rating, 60 Hz, 3 Phase
- MFR:
- Hammond Power Solutions
- MFR #:
- SG3A0075KY
- UPC:
- 803423127961
- Item #:
- 418633
SG3A0075KY Sentinel G Energy Efficient General Purpose Distribution Transformer, 480 Delta V AC Primary, 430Y/248 VAC Secondary, 75 kVA Power Rating, 60 Hz, 3 Phase
- MFR #:
- SG3A0075KY
- UPC:
- 803423127961
- Item #:
- 418633
Optional infrared windows available
Manuals & Documentation
| Catalog Number | SG3A0075KY |
| Manufacturer | Hammond Power Solutions |
| Brand | HPS |
| Country of Origin | Multiple |
| Made in USA | No |
| Application | General purpose for supplying appliance, lighting, motorized machine and power loads from electrical distribution systems. |
| Enclosure | DH3-N3R - Indoor or Outdoor |
| Frequency Rating | 60 HZ |
| Mounting | Ceiling |
| Number of Taps | ST-20 compliant |
| Phase | 3 |
| Primary Voltage | 480D V |
| Secondary Voltage | 380Y/220, 400Y/231, 416Y/240, 430Y/248 V |
| Special Features | Meets current DOE 10 CFR part 431 (2016) and C802.2 efficiencies in an outdoor type enclosure. Smaller kVA sizes have standard input and/or output lugs, knockouts, and wall mounting brackets to save installation costs. |
| Standard | CSA, UL |
| RoHS URL | https://www.ideadigitalcontent.com/files/11516/HPS_Declaration_of_RoHs_Compliance.pdf |
| UPC | 803423127961 |
| GTIN | 00803423127961 |
| Item Type | Transformer > Distribution > DOE 2016 Energy Efficient > General Purpose > Three Phase |
| Length | 27 |
| Length UOM | Inch |
| Width | 28.3 |
| Width UOM | Inch |
| Height | 36 |
| Height UOM | Inch |
| Temperature Rating | Typical 30 Average/ 40 Maximum DEG C |
