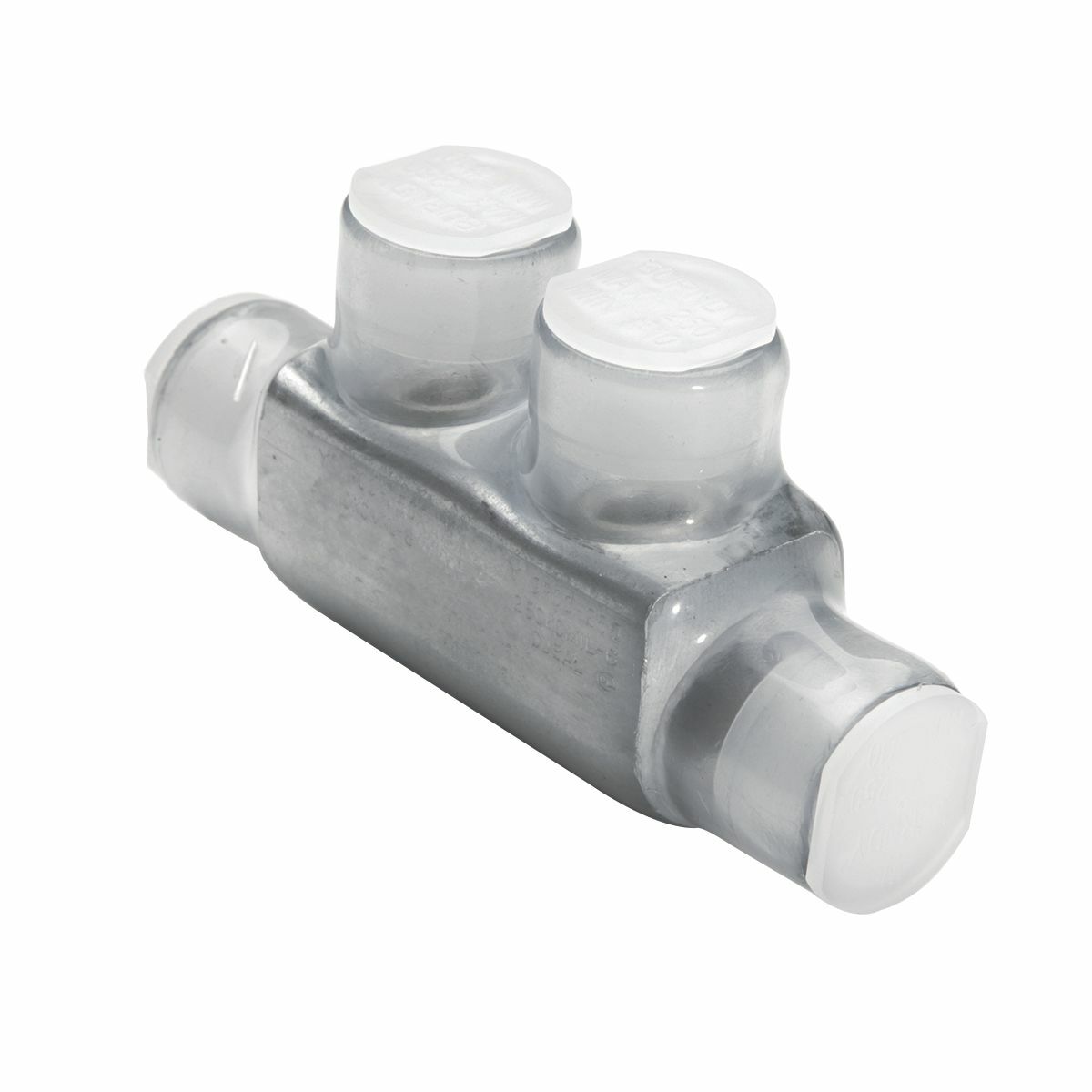

BISR500 2-Port Dual Rated In-Line Splice/Reducer, 6 AWG, 4 AWG, 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG Run, 250 kcmil, 500 kcmil, 350 kcmil Aluminum/Copper Conductor, 2 Screws, Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- BISR500
- UPC:
- 781810134085
- Item #:
- 418406
BISR500 2-Port Dual Rated In-Line Splice/Reducer, 6 AWG, 4 AWG, 2 AWG, 1 AWG, 1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG Run, 250 kcmil, 500 kcmil, 350 kcmil Aluminum/Copper Conductor, 2 Screws, Aluminum
- MFR #:
- BISR500
- UPC:
- 781810134085
- Item #:
- 418406
Manuals & Documentation
| Catalog Number | BISR500 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | For Indoor Use Only |
| Material | Aluminum |
| Special Features | Features: Clear Plastisol Covered Al6061-T6 Aluminum Body: Saves Time, Lowers Installation Costs, Eliminates Taping, Clear Plastisol: Allows Visual Confirmation That Conductor Is Properly Inserted, Oxide Inhibitor Pre-Installed: Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking: Reduces Number Of Connectors Carried In Inventory, In-Line Splice/Reductions Are Made Quickly And Easily With The Unitap Line Of Connectors, UL486B Listed, Dual-Rated AL9CU For Any Stranded Copper Or Stranded Aluminum Applications, 600 Volt, 90 DEG C, Conductor Type: Run: Stranded Copper Or Stranded Aluminum, Conductor Size (run - Range): 6 AWG - 500 KCMIL, Wire Strip Length: 1-1/2 IN, Hex Size (key): 1/2 IN, Number Of Ports: 2, Type Of Insulation: Clear Plastisol, Torque: 375 IN-LB |
| Standard | UL 486A-486B |
| UPC | 781810134085 |
| GTIN | 00781810134085 |
| Item Type | BISR, In-Line |
| Temperature Rating | 90 Degrees C |
| Cross Reference Products | ISR-500C, CSR-500 |
