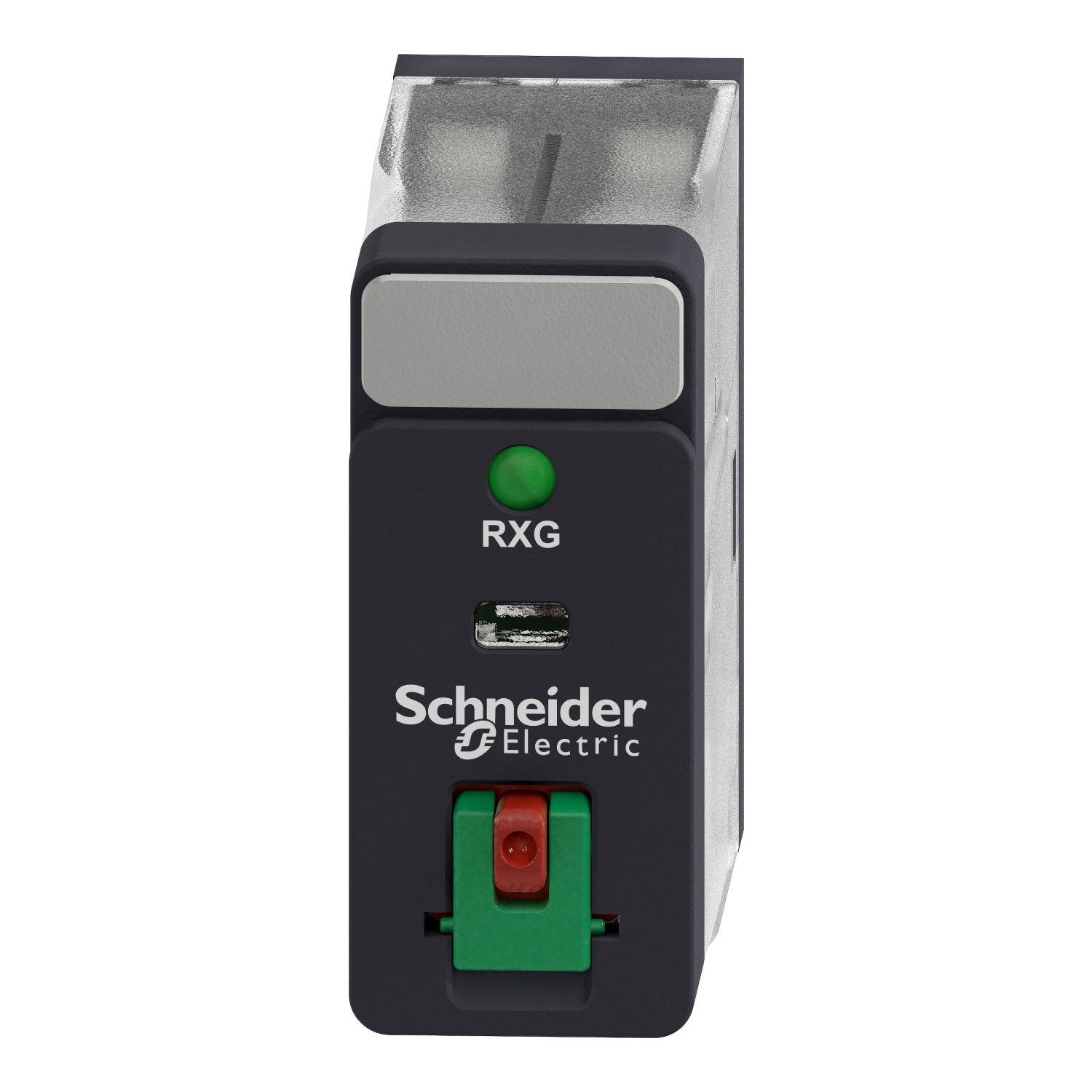

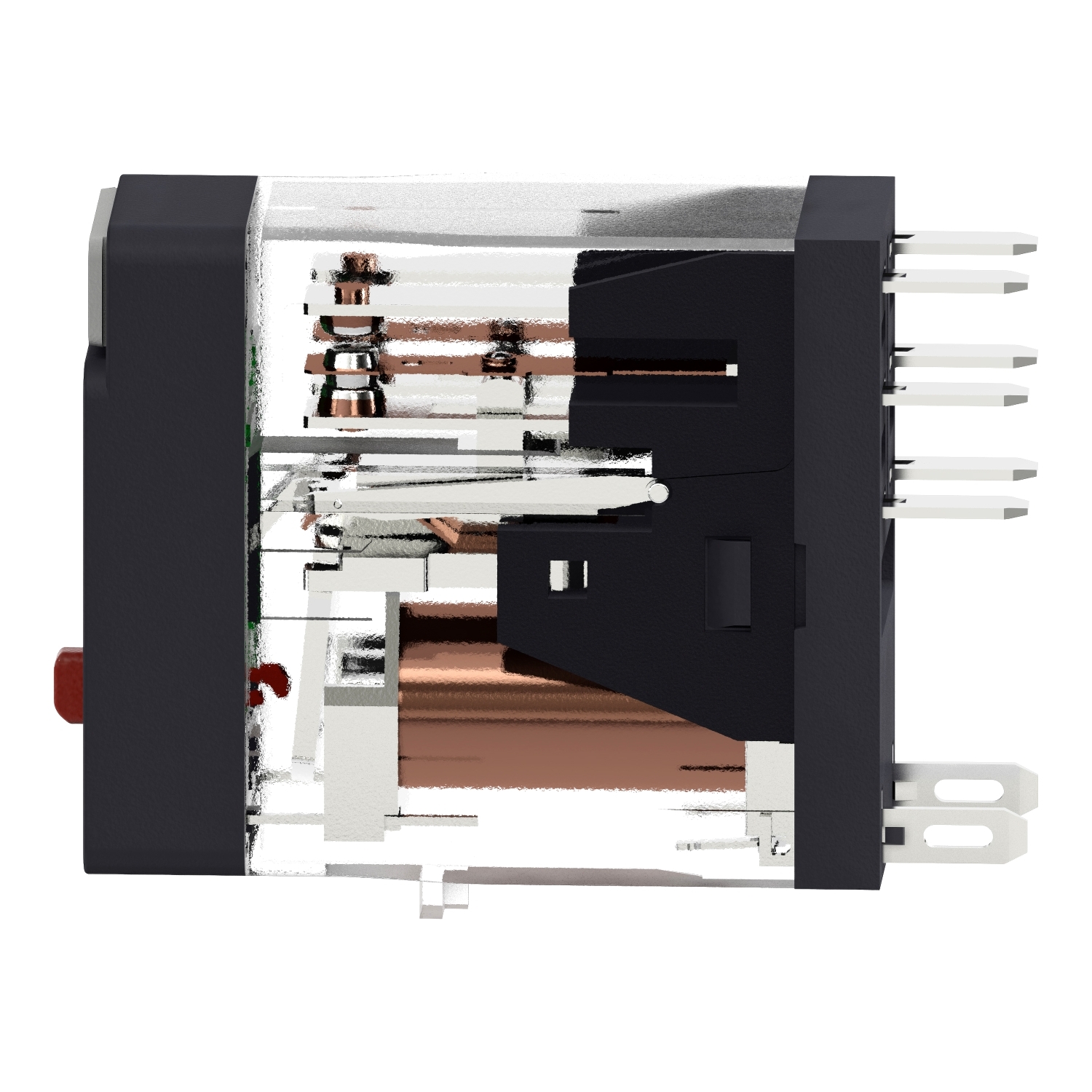

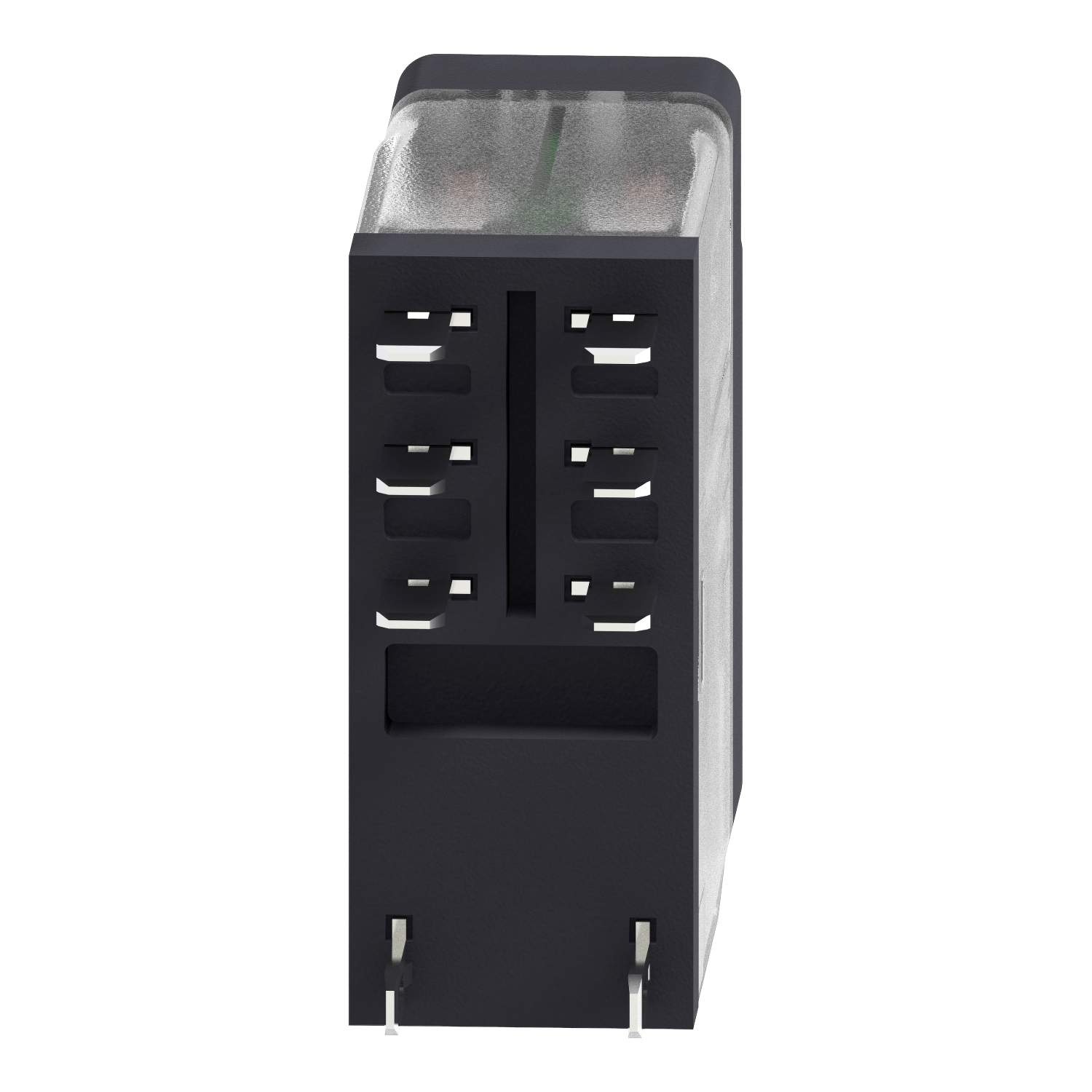

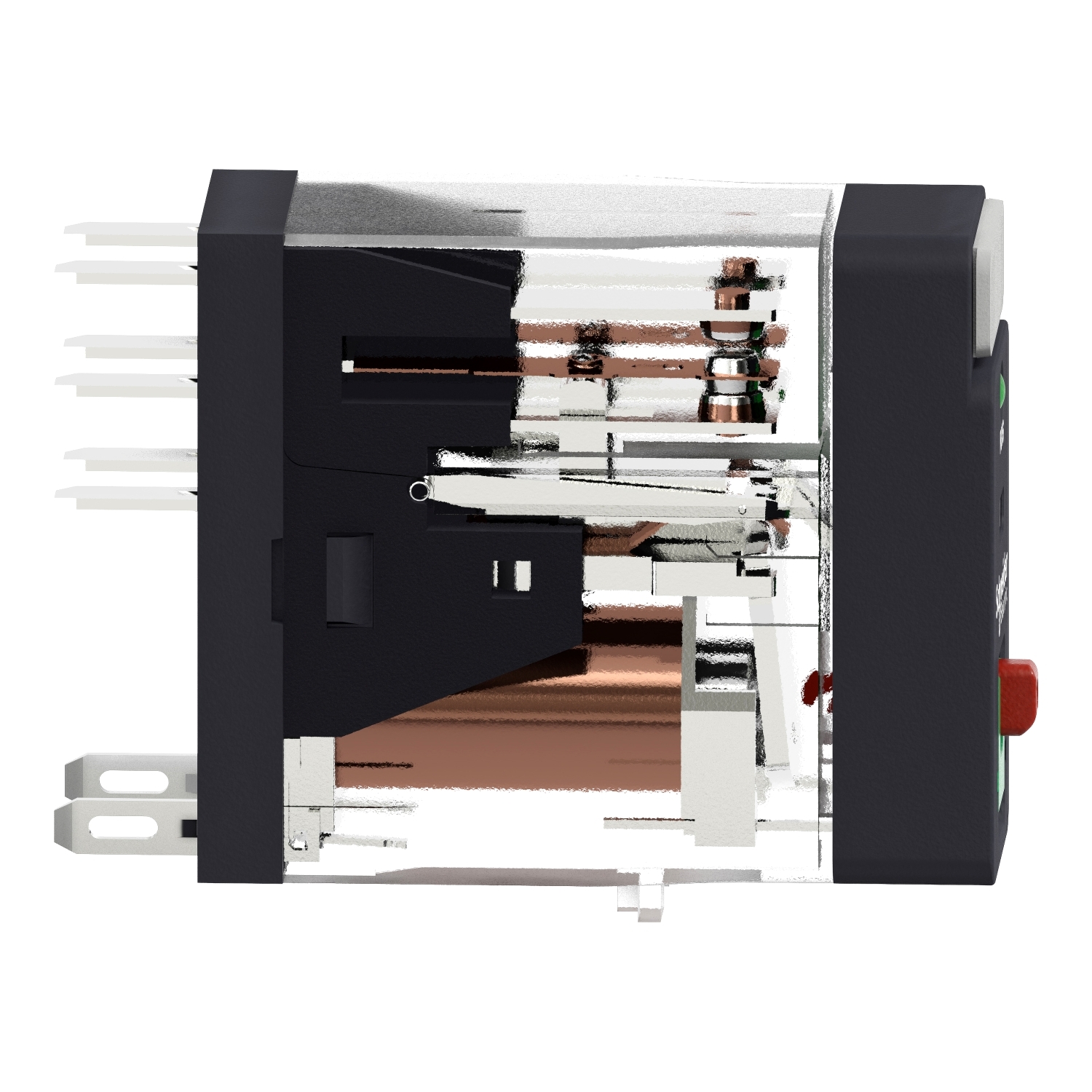

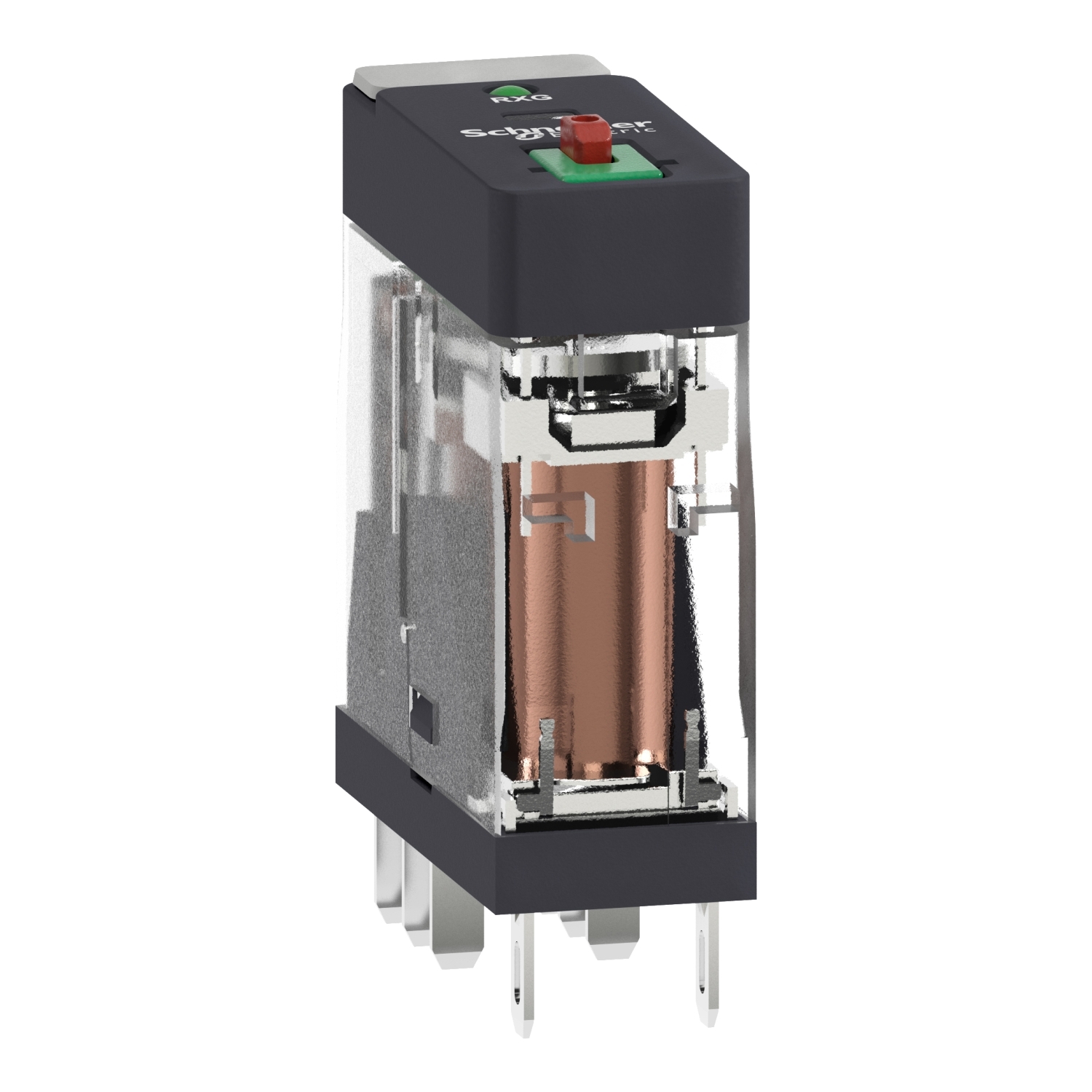

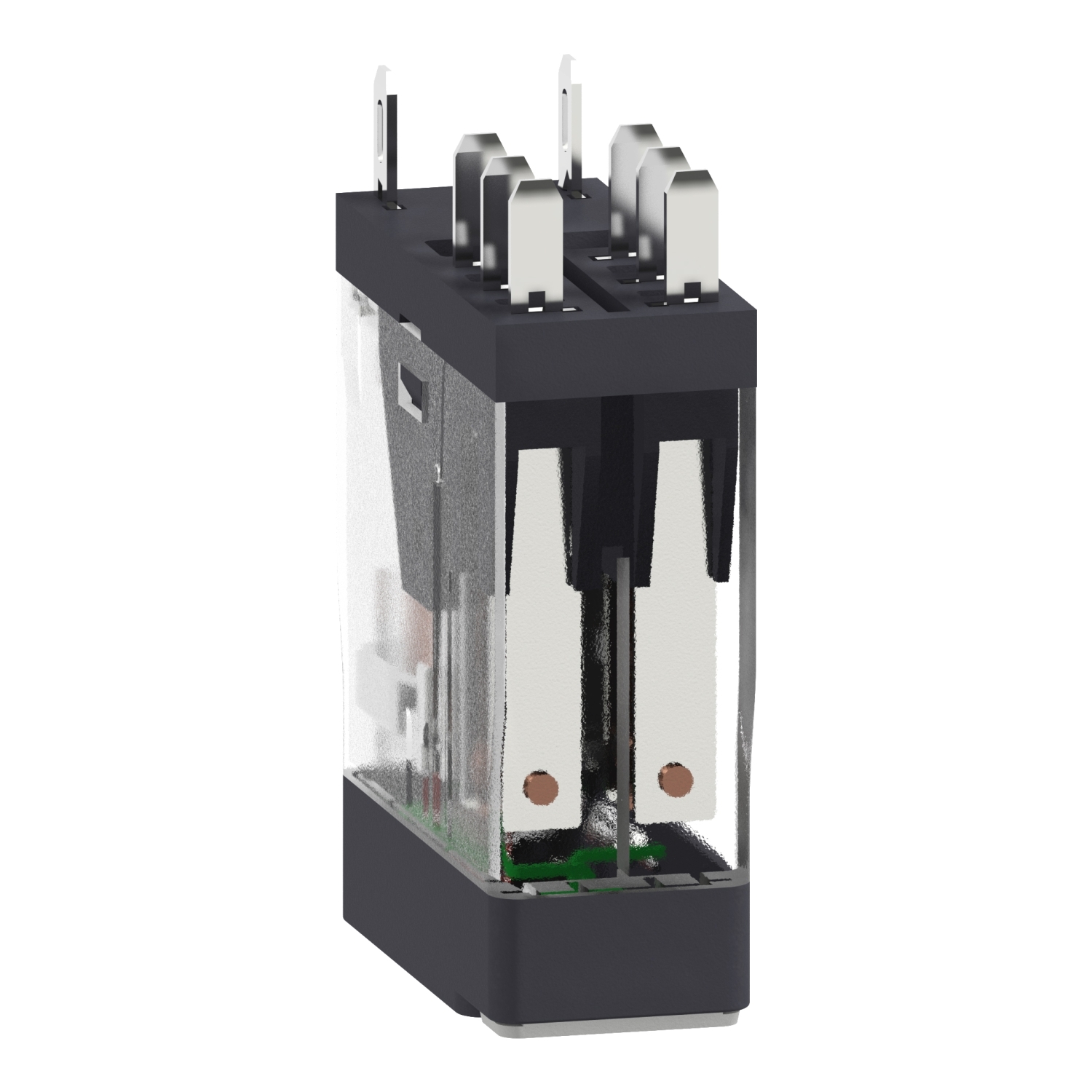

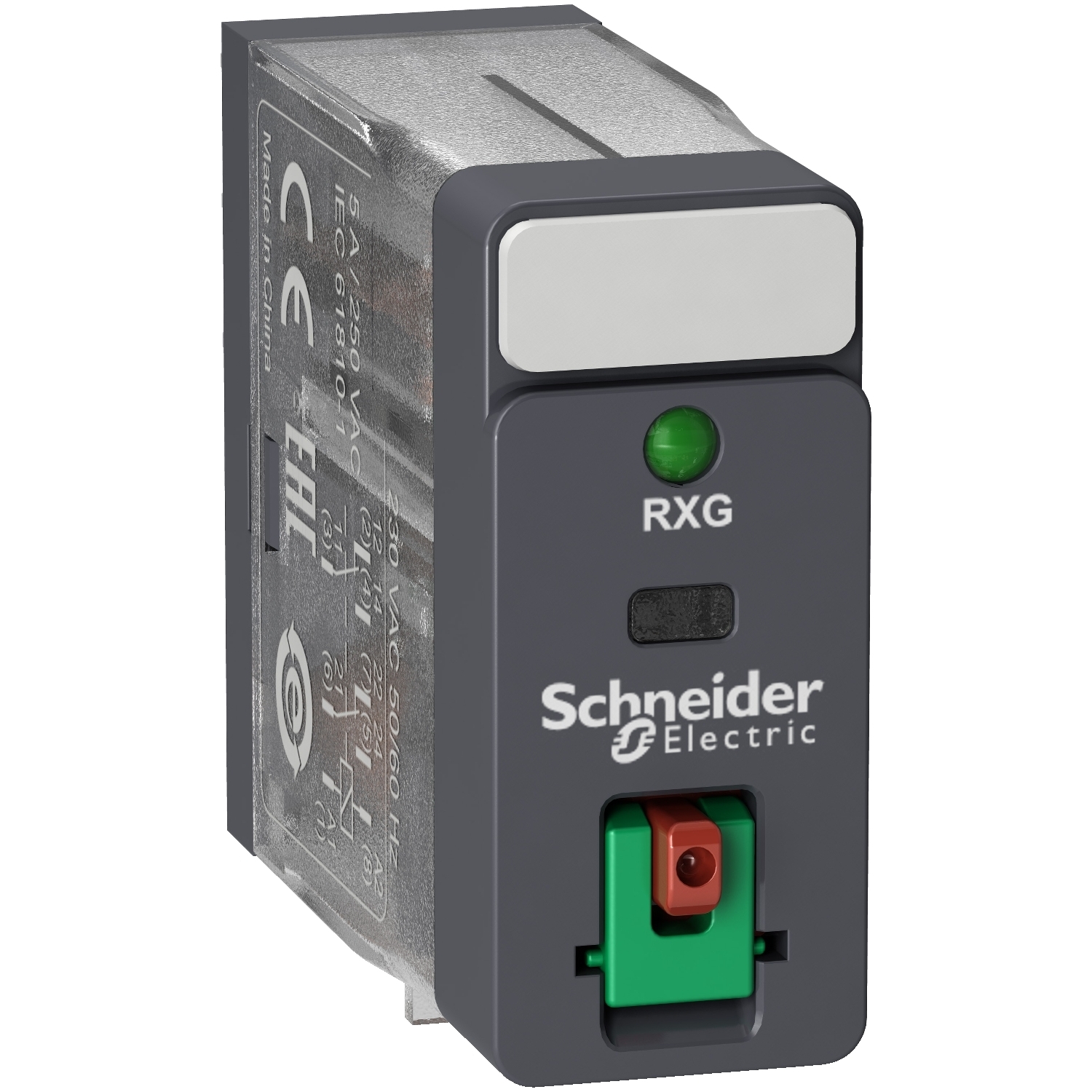

RXG22F7 Zelio RXG Series Interface Plug-In Relay With Test Button and Lock-Down Door, 5 A, 2CO 2 Form C DPDT Contact, 120 VAC V Coil
- MFR:
- Schneider Electric
- MFR #:
- RXG22F7
- Item #:
- 417882
RXG22F7 Zelio RXG Series Interface Plug-In Relay With Test Button and Lock-Down Door, 5 A, 2CO 2 Form C DPDT Contact, 120 VAC V Coil
- MFR #:
- RXG22F7
- Item #:
- 417882
This Harmony RXG plug-in relay socket has a coil control voltage of 120V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A. """"""""""""
Manuals & Documentation
| Catalog Number | RXG22F7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | United States |
| Made in USA | Yes |
| Contact Configuration | 2 C/O |
| Operating Cycles | <= 1800 cycles/hour under load;<= 18000 cycles/hour no-load |
| Resistance | 6300 Ohm +/- 10 % |
| Standard | 20 gn in operation;100 gn not in operation |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=395923131&lang=en-us |
| GTIN | 03606480689123 |
| Item Type | Plug-in relay |
