SQUARE D

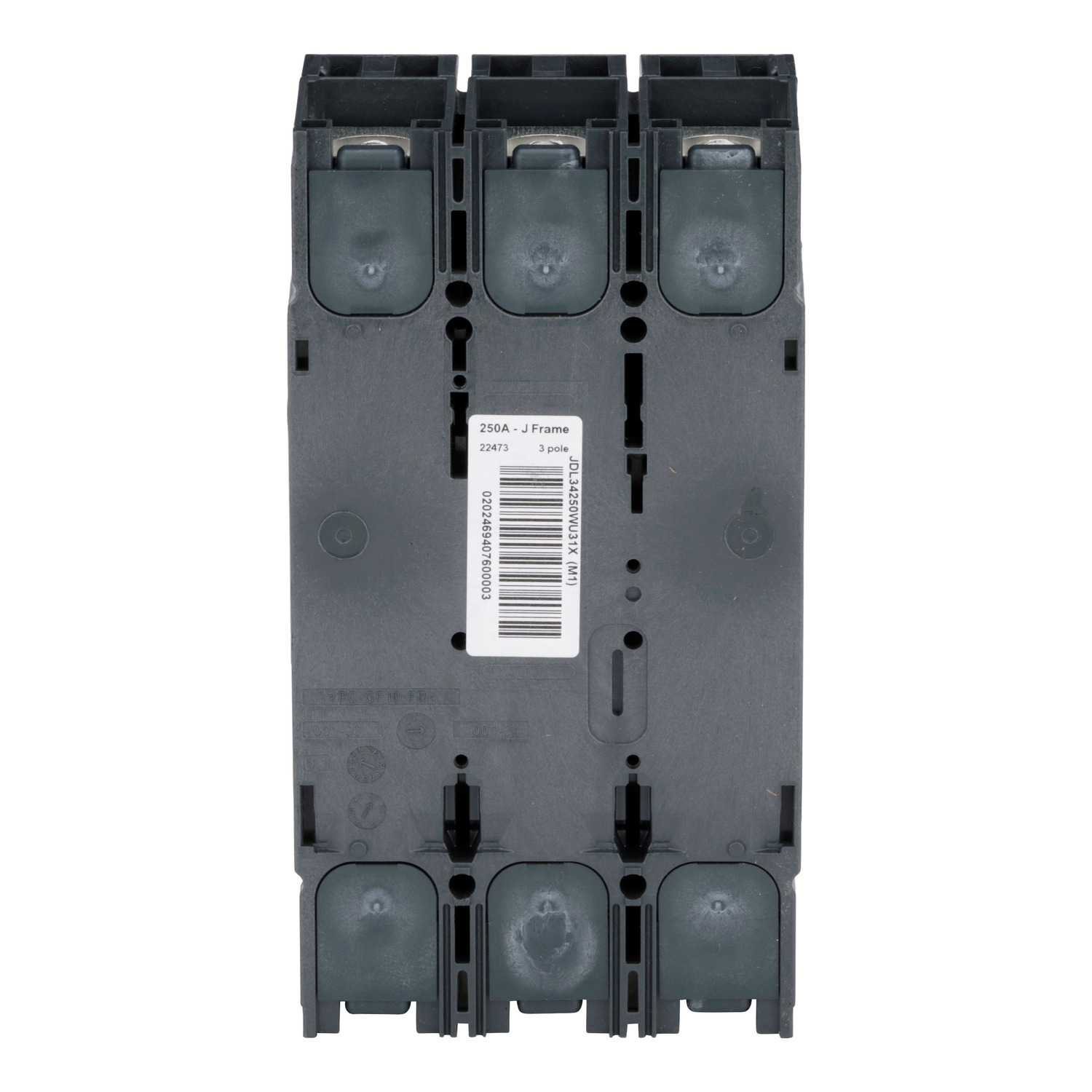

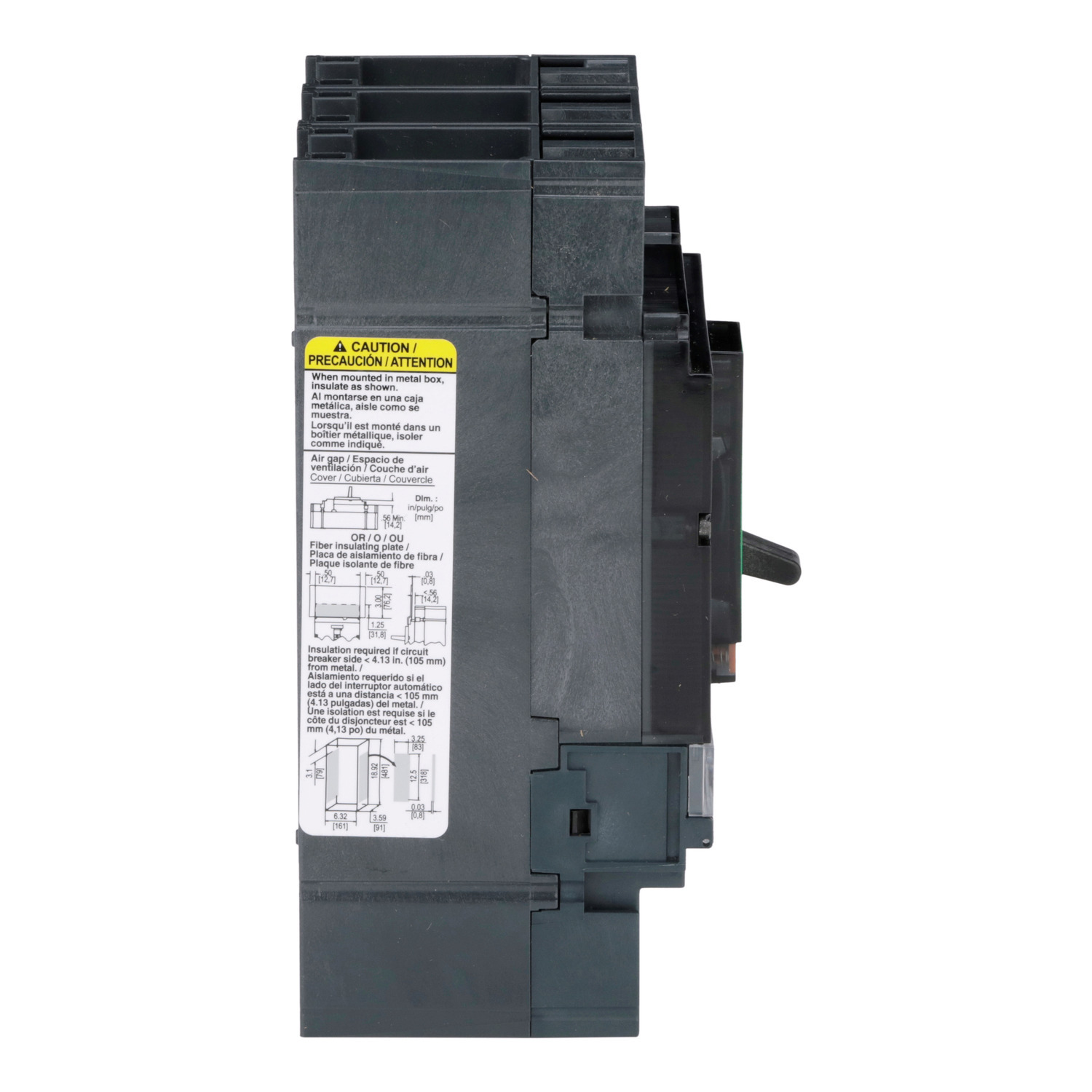

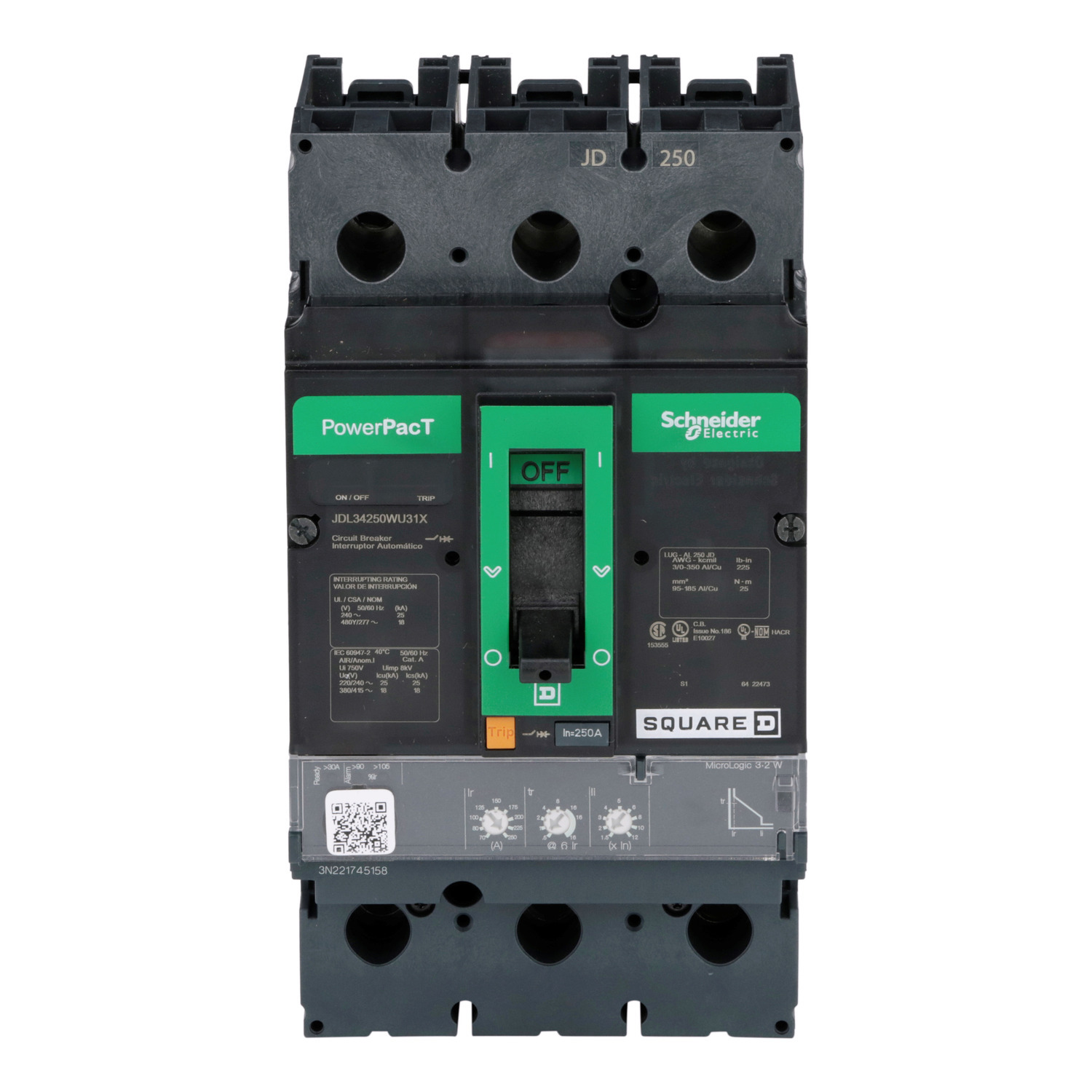

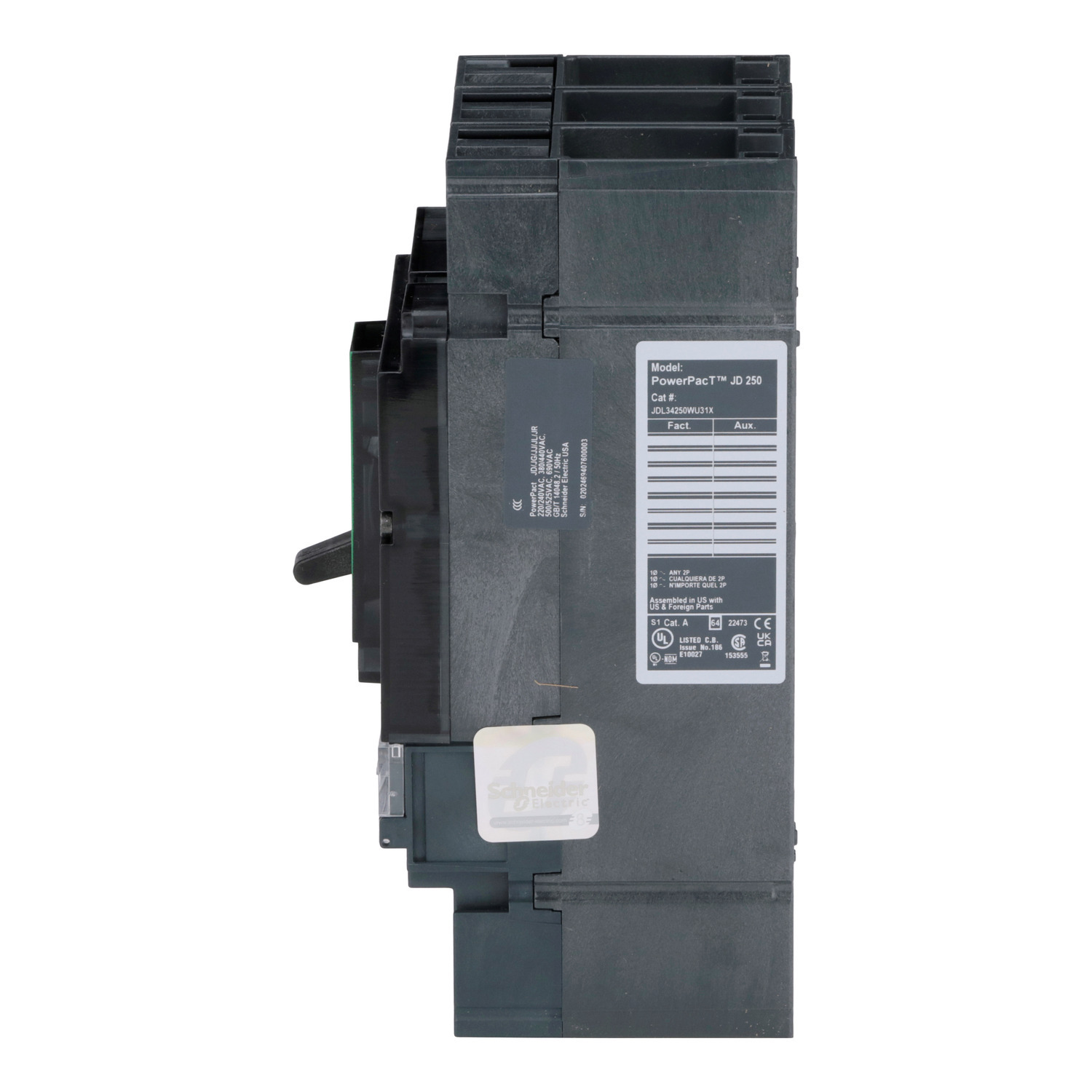

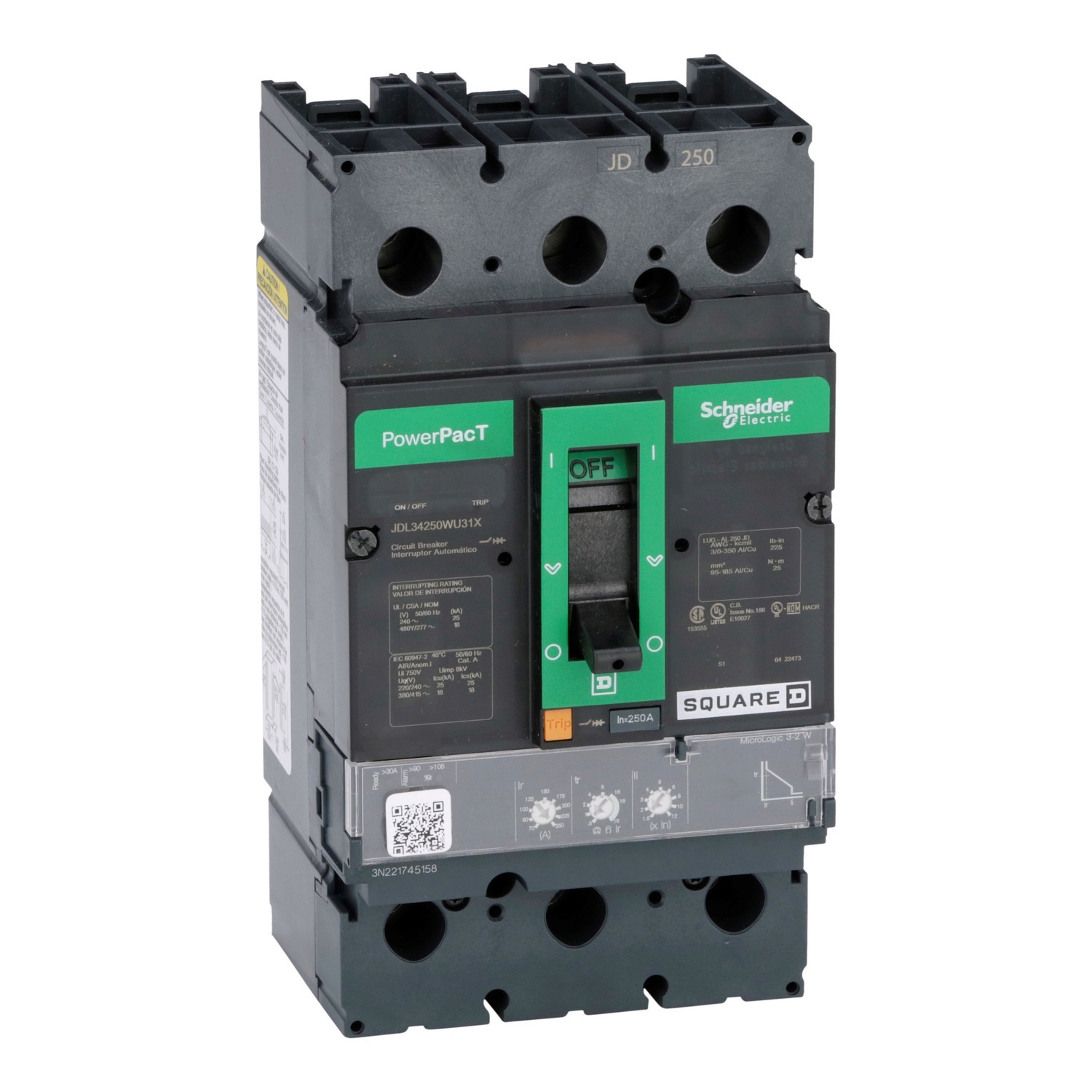

JDL34250WU31X PowerPact Molded Case Circuit Breaker, 480 V AC, 250 A, 25 kA at 240 V AC/18 kA at 480 V AC/14 kA at 600 V AC/20 kA at 250 VDC Interrupt, 3 Poles, Electronic Trip

MFR:
Schneider Electric
MFR #:
JDL34250WU31X
UPC:
785901717102
Item #:
416924

PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 18kA at 480VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 250A, 3 pole, circuit breaker has a breaking capacity of 18kA at 480VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Manuals & Documentation
Catalog Number JDL34250WU31X
Manufacturer Schneider Electric
Brand SQUARE D
Country of Origin United States
Made in USA Yes
Application Distribution
Connection Lugs, line;lugs, load; AWG 3/0...350 kcmil aluminium/copper terminals
Number of Poles 3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=402918642&lang=en-us
UPC 785901717102
GTIN 00785901717102
Item Type Circuit breaker
Trip Type Electronic, standard, MicroLogic 3.2, LI
