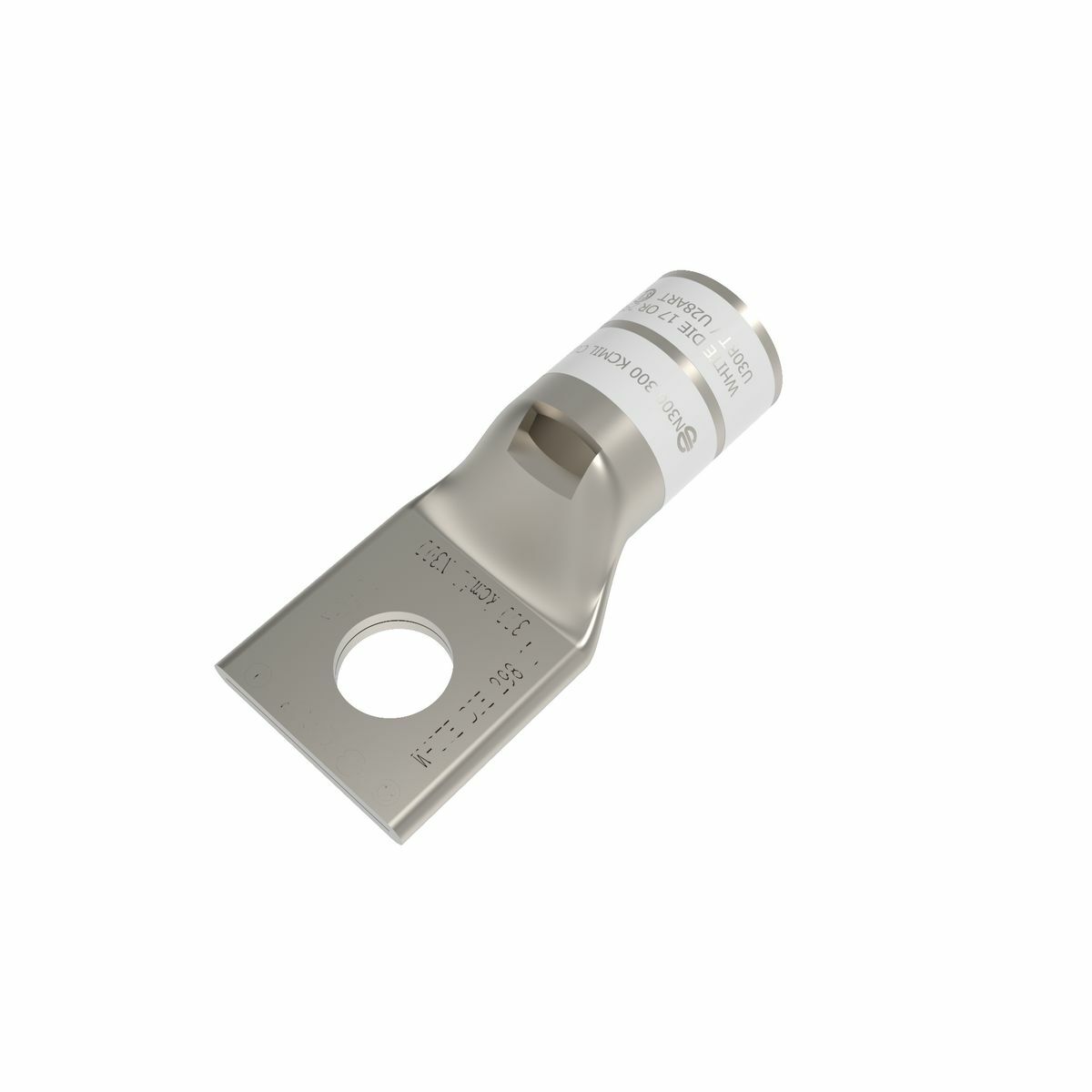

YA30L24 YA-L 1-Hole Compression Lug With Inspection Window, 300 kcmil Stranded Copper Conductor, Die Code: 17, 3/8 in Stud, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YA30L24
- UPC:
- 781810504895
- Item #:
- 416000
YA30L24 YA-L 1-Hole Compression Lug With Inspection Window, 300 kcmil Stranded Copper Conductor, Die Code: 17, 3/8 in Stud, Copper
- MFR #:
- YA30L24
- UPC:
- 781810504895
- Item #:
- 416000
Manuals & Documentation
| Catalog Number | YA30L24 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 1-1/8 IN, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Finish: Electro-Tin Plated, Die Index: 17, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W30VT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W30VT, W30RT Die, (2), Y35, Y39, Y750, PAT750 Tool, U30RT, U28ART Die, (2), Y46 Tool, U30RT, U28ART Die With PUADP-1 Adapter, (2), Color Code: White, Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2) |
| Standard | UL 486A-486B |
| UPC | 781810504895 |
| GTIN | 00781810504895 |
| Item Type | Standard Barrel, Tin Plated |
| Voltage Rating | 35 |
