Appleton

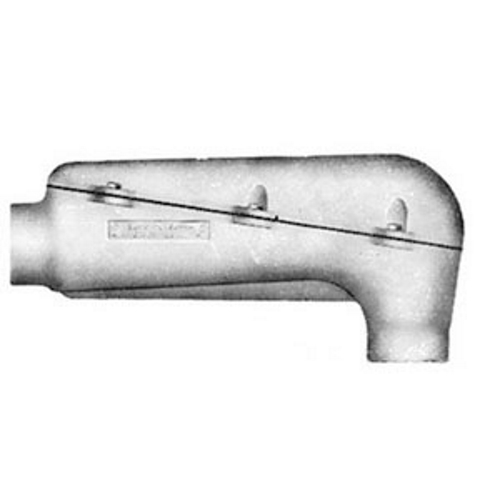

Mogul Unilet; Type LB Conduit Body With Cover and Gasket Assembly; 3-1/2 Inch, Malleable Iron, Triple-Coat (Zinc Electroplate, Chromate and Epoxy Powder Coat)

MFR:
Appleton Electric
MFR #:
BLB350-M
UPC:
781381474320
Item #:
415923

Mogul UNILETS Type LB NEC 6X Conduit Outlet Body With Assembled Cover And Gasket, Hub Size: 3-1/2 IN, Length: 24.31 IN, Width: 7 IN, Height: 10-1/4 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy

Manuals & Documentation
Catalog Number BLB350-M
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Rigid Metal Conduit And IMC
Connection Tapered Female Threaded
Finish Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)
Hub Size 3-1/2 IN
Material Malleable Iron
Special Features Exclusive built-in rollers facilitate cable pulling; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Covers have captive stainless steel screws to speed installation, prevent freezing of screws; Length Requirement: distance between centerline of each hub bushing (conduit stop) exceeds six times the trade diameter of the conduit per NEC 314.28(A)(2); Bending space requirement: These moguls also meet the NEC 314.28(A)(2) exception requirement spelled out in NEC 312.6(A) table; Furnished with rollers for easier cable pulling; Larger body size facilitates pulling of large and heavy conductors; Specially designed raised cast covers provide additional wiring area; Wiring capacity: 500 CU-IN
Standard UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
UPC 781381474320
GTIN 00781381474320
Item Type Type LB NEC 6X Conduit Outlet Body With Assembled Cover And Gasket
Length 24.31
Length UOM Inch
Width 7
Width UOM Inch
Height 10-1/4
Height UOM Inch
