SCHNEIDER ELECTRIC

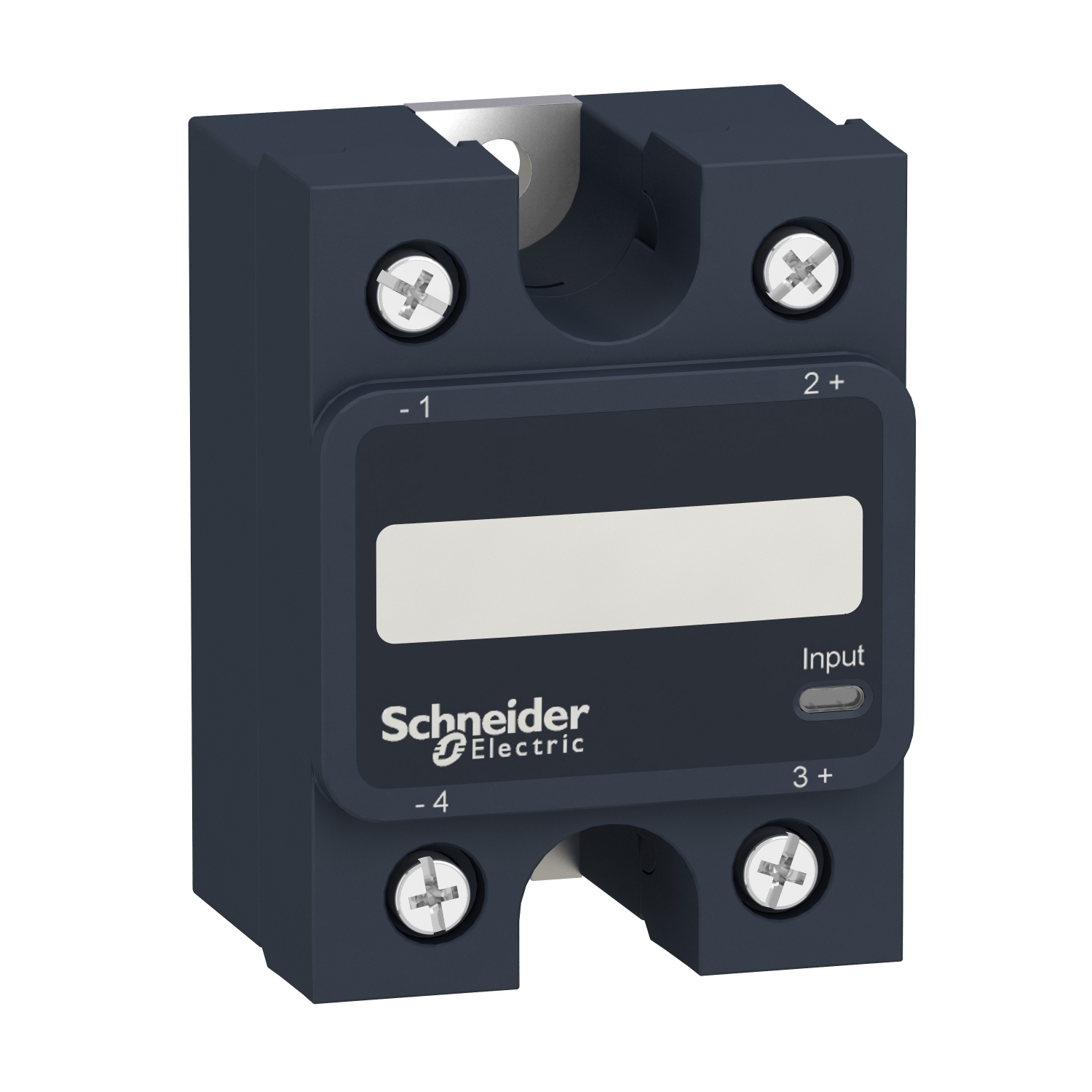

SSP1A475BDT Zelio 1-Phase Zero Voltage Switching Solid State Relay With Embedded Thermal Pad, 75 A, 1NO 1 Form A Contact, 4 to 32 V DC V Coil

MFR:
Schneider Electric
MFR #:
SSP1A475BDT
Item #:
415904

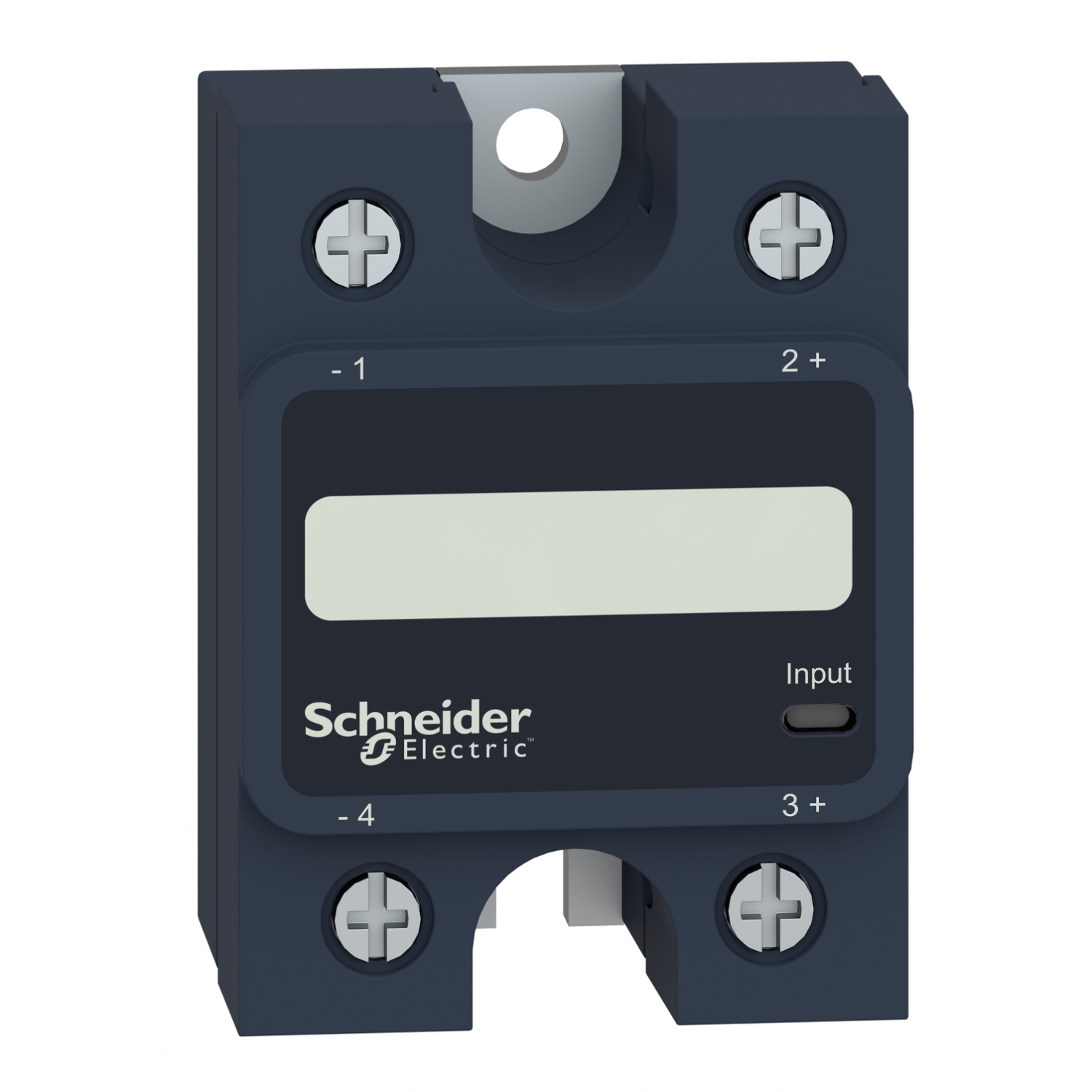

This Harmony SSP solid state panel mount single-phase relay is rated 75A, is controlled with a 4V to 32V DC input, has a rated load voltage of 48V to 660V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Manuals & Documentation
Catalog Number SSP1A475BDT
Manufacturer Schneider Electric
Brand SCHNEIDER ELECTRIC
Country of Origin Mexico
Made in USA No
Connection Screw terminals 0.2...3.3 mm², AWG 24...AWG 12) with cable end input;screw terminals 0.5...5.26 mm², AWG 20...AWG 10) with cable end output;screw terminals 0.2...3.3 mm², AWG 24...AWG 12) without cable end input;screw terminals 0.5...8.26 mm², AWG 20...AWG 8) without cable end output;forked type tag connectors 9.2 x 4 mm input;ring lugs 9.2 x 4 mm input;forked type tag connectors 11.7 x 4.5 mm output;ring lugs 11.7 x 4.5 mm output
Mounting Panel Mount
Phase 1
Response Time 0.5 cycle (turn-on);0.5 cycle (turn-off)
Special Features LED, green input
Standard IP20
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423419653&lang=en-us
GTIN 03606485442082
Item Type Panel mount relay
Cross Reference Products Klockner DIUL2AM11 110V/50HZ|Klockner DIUL2AM11 110V/60HZ|Rockwell 104C60D10E|Rockwell 104C60KD02|Rockwell 104C60KD10E|Rockwell 104C60KD22|Rockwell 104C60KP10E|Schneider LC2D6511F5|Schneider LC2D6511F6|Schneider LC2D65AF7
