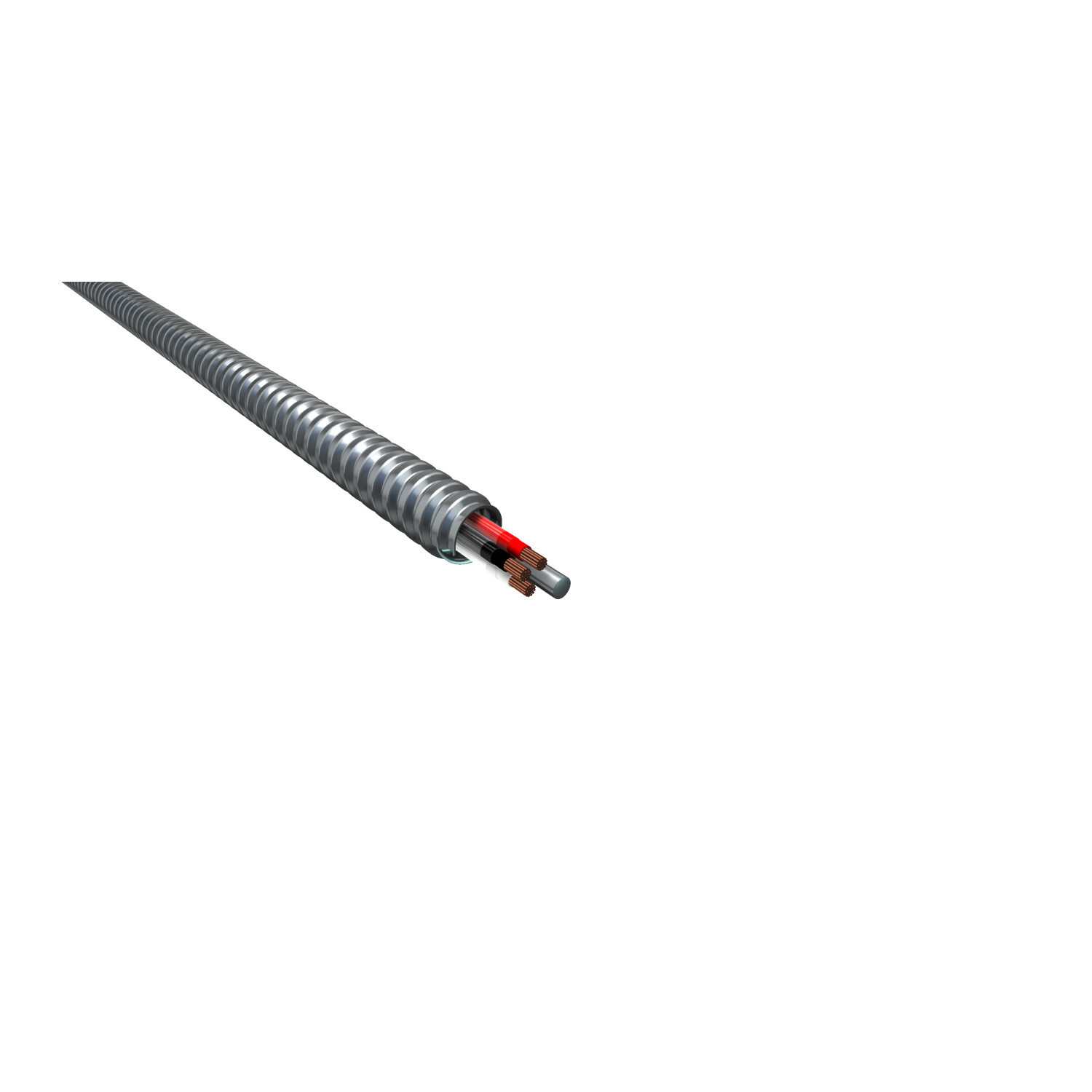

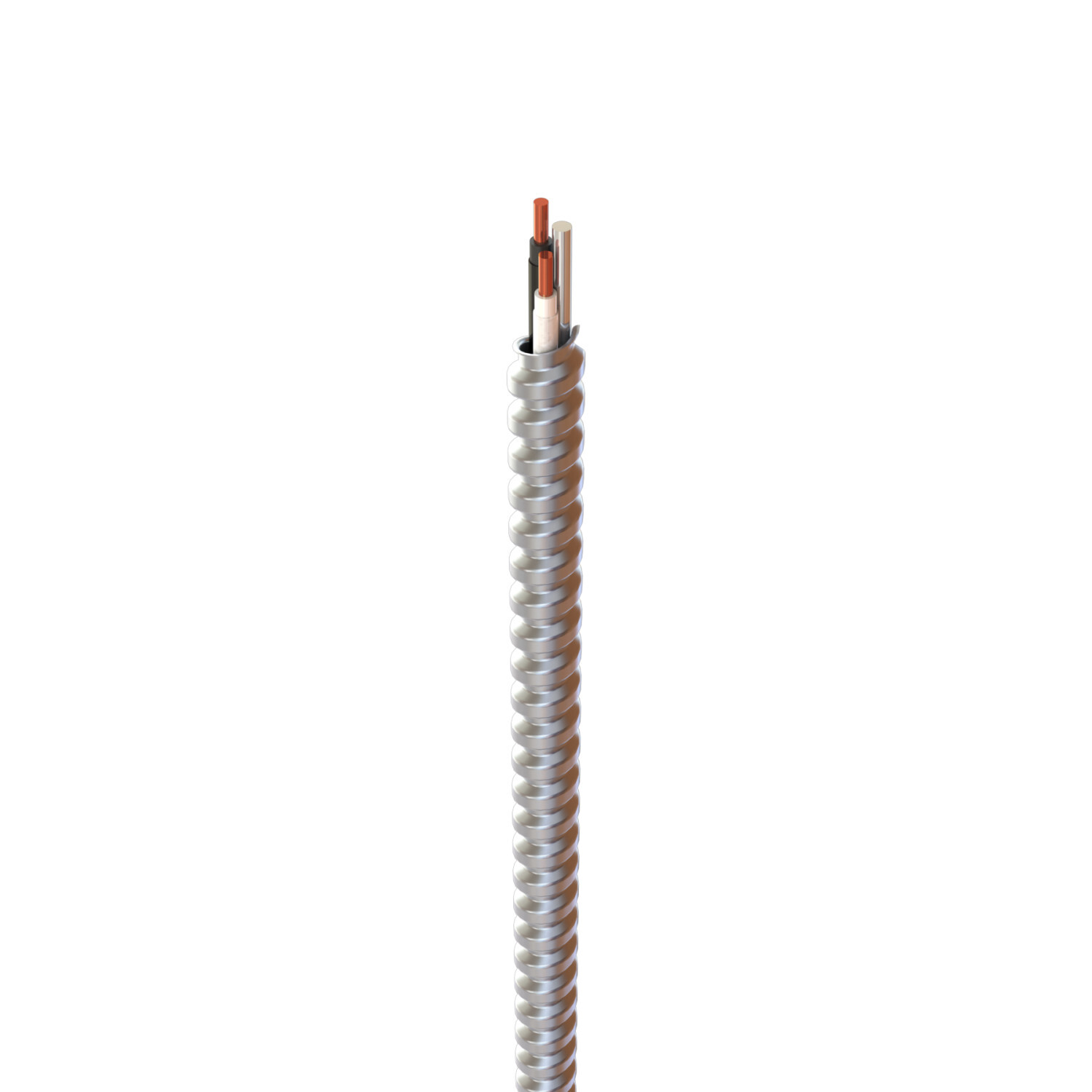

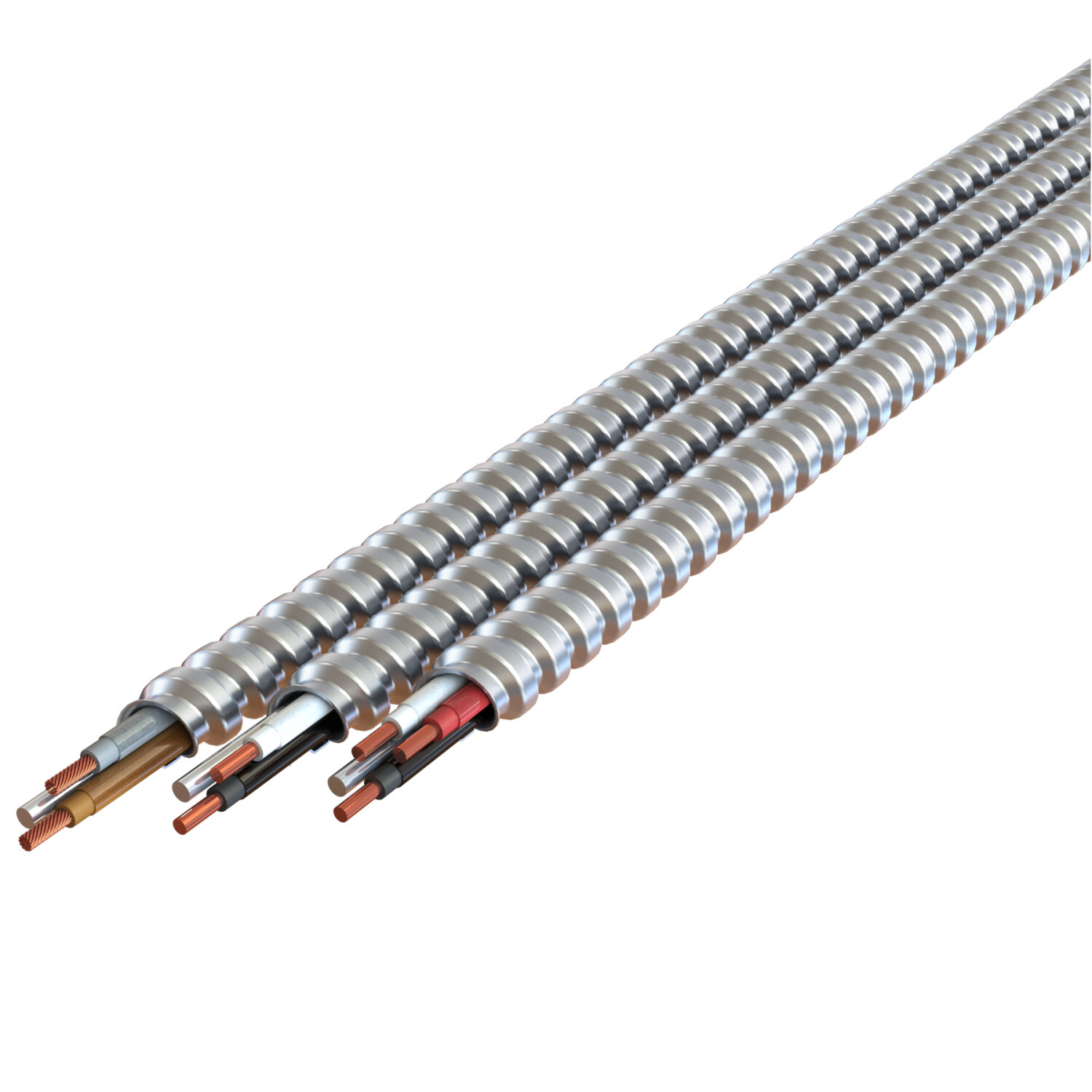

12-2 Solid Yellow, Gray - MC Quik Lite, Plain Interlocked Aluminum Armor - Type MCI-A - 250' Coil
- MFR:
- ATKORE - AFC CABLE
- MFR #:
- 3104Z42-03
- UPC:
- 077680313683
- Item #:
- 415797
12-2 Solid Yellow, Gray - MC Quik Lite, Plain Interlocked Aluminum Armor - Type MCI-A - 250' Coil
- MFR #:
- 3104Z42-03
- UPC:
- 077680313683
- Item #:
- 415797
MC Quik Lite eliminates the need for an insulated green copper ground conductor with its armor in combination with full-sized aluminum ground/bonding conductor serving as the grounding means. Its wrap-free design and patented protective polypropylene covering reduce installation time and waste. This branch circuit MC meets UL Standard 1569 and NEC 330 with no conductor count limit and THHN/THWN rated conductors.
Manuals & Documentation
| Catalog Number | 3104Z42-03 |
| Manufacturer | ATKORE - AFC CABLE |
| Brand | AFC Cable Systems |
| Sub Brand | MC Quik |
| Country of Origin | United States |
| Made in USA | Yes |
| Armour | Interlocked Aluminum Strip |
| Bend Radius | 6.945 |
| Color | Plain |
| Conductor Material | Copper |
| Conductor Size | 12 AWG |
| Material | Aluminum |
| Number of Conductors | 3 |
| Standard | UL 1569, UL 83, UL 1479, UL 1581, UL 2556, E80042 NEC® 330, 300.22(C), 230.43, 250.118, 392, 396, 501, 502, 503, 530, 518, 520, 645, 690.31(E) Meets all OSHA and HUD UL Classified 1, 2, and 3 hour through (Fire) penetration product, R–14141 NEC® 300.22(C) Environmental Air Handling Spaces |
| UPC | 077680313683 |
| GTIN | 00077680313683 |
| Item Type | MC-Quik® Lite Aluminum Armored Cable |
| Length | 250 |
| Length UOM | Foot |
| Weight | 0.0905 LB/FT |
| Inside Diameter | 0.283 IN |
| Outside Diameter | 0.463 IN |
| Temperature Rating | 194 |
| Trade Size | 12-2 |
| Voltage Rating | 600V |
