Appleton®
Emerson Electric

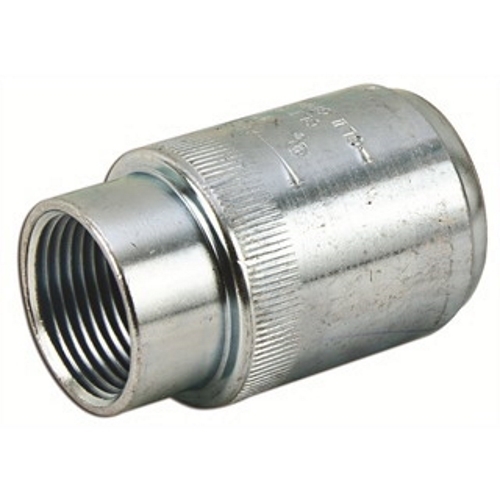

UNF-100 Unilets Dust-Ignitionproof Explosionproof Standard Conduit Union, 1 in, Steel, Zinc Electroplated
- MFR #:
- UNF-100
- UPC:
- 781381694209
- Item #:
- 415624
Appleton®
Emerson Electric
UNF-100 Unilets Dust-Ignitionproof Explosionproof Standard Conduit Union, 1 in, Steel, Zinc Electroplated
- MFR #:
- UNF-100
- UPC:
- 781381694209
- Item #:
- 415624
Product Details
Appleton® UNY, UNF, and UNL explosionproof and dust-ignitionproof unions are used for joining conduit and connecting conduit to enclosures. They facilitate modifications and permit the removal of enclosures without turning or removing conduit. They are also available as expansion unions, which compensate for the expansion and contraction of conduit.
Manuals & Documentation
Features
- Smooth, rounded integral bushing in each hub to protect conductor insulation
- Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
- One piece design eliminates need for disassembly during installation
- Telescoping cylinder within cylinder design permits expansion or contraction
- Small external diameters excellent in restricted areas in wiring of pumps, motors and other equipment
- Internal phosphor bronze bonding jumper ring assures positive ground between telescoping cylinders
- Expansion unions compensate for expansion and contraction of conduit
- Female threaded connection
Specifications
Identifiers
| Manufacturer Part Number |
UNF-100
|
|---|---|
| GTIN |
00781381694209
|
| UPC |
781381694209
|
|---|
General Information
| Manufacturer |
Emerson Electric
|
|---|---|
| Brand |
Appleton®
|
| Country Of Origin |
MX
|
| Warranty |
Limited
|
|---|---|
| Standards Approvals |
UL 886 | UL 1203 | UL File No. E10444 | Class I, Div 1 and 2 Groups C, D | Class II, Div 1 and 2 Groups E, F, G | Class III | CSA C22.2 No. 25/30 | CSA 065181
|
| Application |
For connecting conduit to conduit
|
Dimensions
| Dimensions |
1.75 in OD x 3.38 in L
|
|---|
| Size |
1 in
|
|---|
Technical Information
| Finish |
Zinc Electroplated
|
|---|---|
| Material |
Steel
|
| Series |
UNF
|
| Stripped Manufacturer Part Number |
UNF100
|
|---|---|
| Suitable For Use With |
IMC/Threaded Rigid Metallic Conduit
|
| Type |
Dust-Ignitionproof Explosionproof Standard
|
