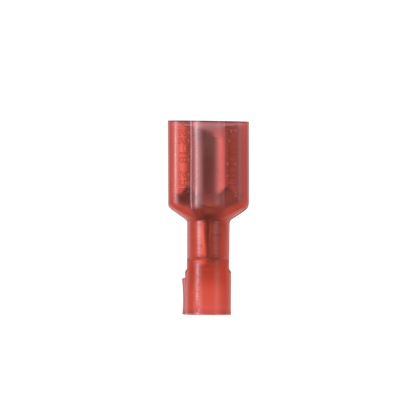

DNF18-206FIB-L Pan-Term Type DNF-FIB Loose Piece Vibration-Resistant Female Disconnect, 22 AWG Conductor, 0.187 to 0.205 in W x 0.02 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Red, Fully Barrel Insulated
- MFR:
- Panduit
- MFR #:
- DNF18-206FIB-L
- UPC:
- 074983122202
- Item #:
- 41424
DNF18-206FIB-L Pan-Term Type DNF-FIB Loose Piece Vibration-Resistant Female Disconnect, 22 AWG Conductor, 0.187 to 0.205 in W x 0.02 in THK Tab, Butted Seam/Funnel Entry Barrel, Brass, Red, Fully Barrel Insulated
- MFR #:
- DNF18-206FIB-L
- UPC:
- 074983122202
- Item #:
- 41424
The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a red, nylon housing. It has a tab size of 0.205/0.187 x 0.020 (5.2/4.7 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm). It is 0.78 (19.8 mm) long and 0.31 (7.9 mm) wide. The disconnect has a funnel entry configuration and a butted seam barrel. It comes in bottles of 50.
Manuals & Documentation
| Catalog Number | DNF18-206FIB-L |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Red |
| Connection | Funnel Entry |
| Finish | Tin-Plated |
| Insulation | Nylon |
| Material | Brass |
| Standard | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| UPC | 074983122202 |
| GTIN | 00074983122202 |
| Item Type | Disconnect |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #18 AWG |
| Cross Reference Products | 3M 71F-187-20-NBL|3M 71F-187-20-NL|3M FDI18-187|3M MNI18-187DFI|3M MNI18-187DFIX|ABBInstall 18RAD-20277|Panduit DNF18-206FIB-L|TEConnect 1ELETE82-2|ThomasBett 18RAD-20277|Tyton NY22EFIQD |
