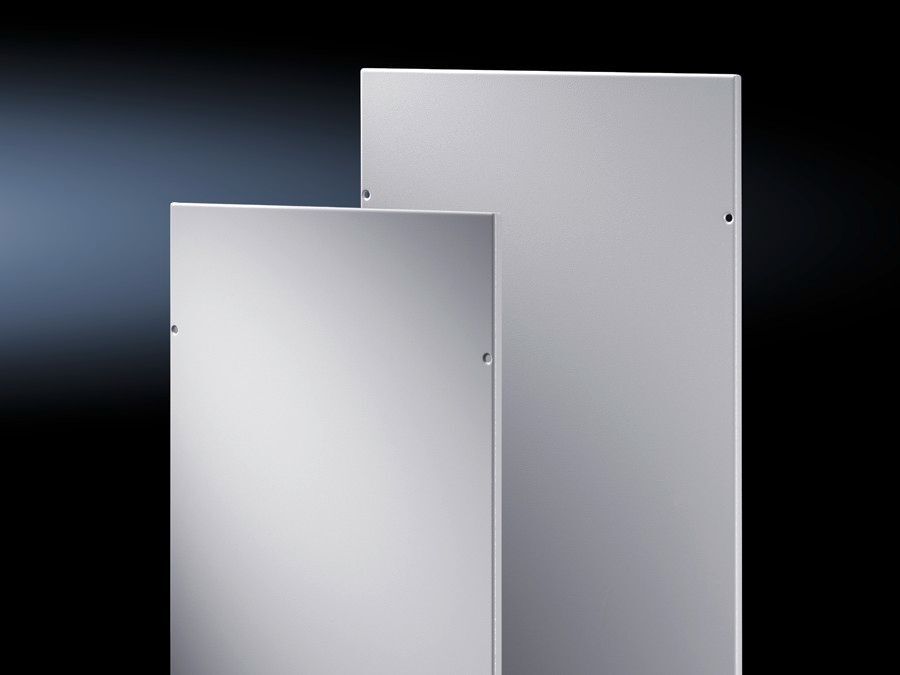

8100235 Side Wall Panel, 2000 mm H 1000 mm D, For Use With TS, TS IT Series IP55 Enclosure, Sheet Steel
- MFR:
- Rittal
- MFR #:
- 8100235
- UPC:
- 639889367258
- Item #:
- 41312
8100235 Side Wall Panel, 2000 mm H 1000 mm D, For Use With TS, TS IT Series IP55 Enclosure, Sheet Steel
- MFR #:
- 8100235
- UPC:
- 639889367258
- Item #:
- 41312
TS Side panel, screw-fastened, for TS, TS IT, for WD: 2000x1000 mm, carbon steel
Manuals & Documentation
Features
- Easy positioning on the frame with the location aid
- Six or eight enclosure panel fasteners with earthing insert ensure automatic potential equalisation and higher EMC protection
- Earthing bolts with contact surface are integrated
- To maintain UL Type 12 or Type 3R rating, one pair of sidewalls is required per TS8 freestanding enclosure or bayed TS8
| Catalog Number | 8100235 |
| Manufacturer | Rittal |
| Brand | Rittal |
| Country of Origin | United States |
| Made in USA | Yes |
| Color | RAL 7035 |
| Consist of | Assembly Components |
| Material | Sheet Steel |
| Special Features | Features: Automatic Potential Equalization and Higher EMC Protection, Easy Positioning with the Location Aid, Grounding Bolt with Contact Surface |
| RoHS Indicator | Yes |
| UPC | 639889367258 |
| GTIN | 00639889367258 |
| Item Type | Side Panel |
| Length | 2.9530 |
| Length UOM | Inch |
| Width | 41.7320 |
| Width UOM | Inch |
| Height | 82.6770 |
| Height UOM | Inch |
| Weight | 52.910 |
| Weight UOM | Pounds |
