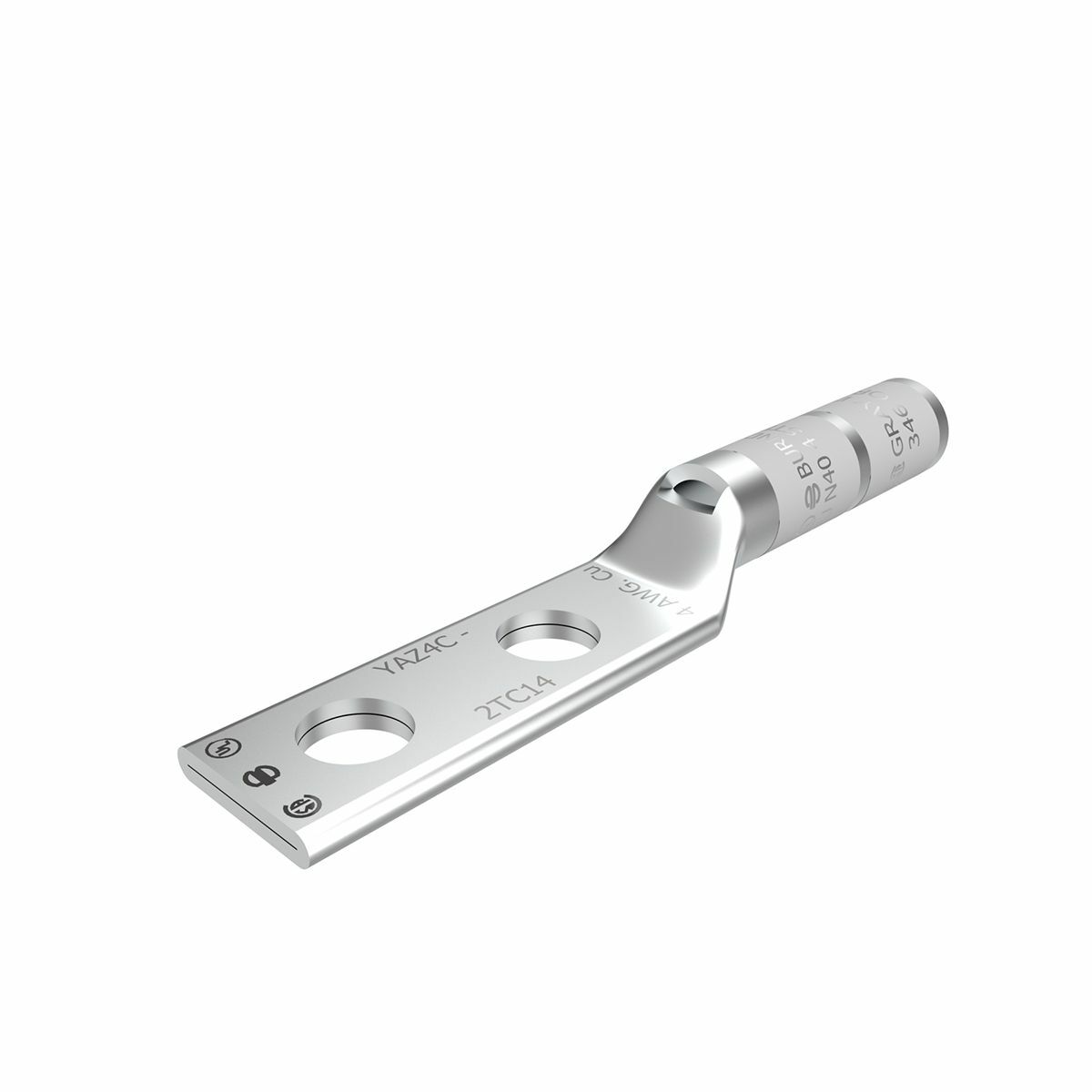

YAZ4C2TC14 YAZ-2TC 2-Hole Compression Lug With Inspection Window, 4 AWG Stranded Copper Conductor, Die Code: 8/346, 1/4 in Stud, Tin Plated Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YAZ4C2TC14
- UPC:
- 781810227107
- Item #:
- 412331
YAZ4C2TC14 YAZ-2TC 2-Hole Compression Lug With Inspection Window, 4 AWG Stranded Copper Conductor, Die Code: 8/346, 1/4 in Stud, Tin Plated Copper
- MFR #:
- YAZ4C2TC14
- UPC:
- 781810227107
- Item #:
- 412331
Manuals & Documentation
| Catalog Number | YAZ4C2TC14 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, With Inspection Window, Tongue Angle: Straight, Temperature Rating: 90 DEG C, Die Index: 8, Finish: Electro-Tin Plated, Wire Strip Length: 1-3/16 IN, Color Code: Gray, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W4CVT, W4CRT, X4CRT Die, (2), Hydraulic: BCT500HS, Y500CTHS Tool, W4CVT, W4CRT, X4CRT Die, (2), Y35, Y39, Y750, PAT750 Tool, U4CRT, U6CABT Die, (2), Y46 Tool, U4CRT, U6CABT Die With PUADP-1 Adapter, (2), Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (1), Y644HS, MY29-3, MY29-11, MRC840 Tool, (2), Y1MRTC Tool, (4), Conductor Type: Commercial Stranded Copper |
| Standard | UL 486A-486B |
| UPC | 781810227107 |
| GTIN | 00781810227107 |
| Item Type | Long Barrel, Skive, Tin Plated |
| Voltage Rating | 35 |
