AFC Cable Systems

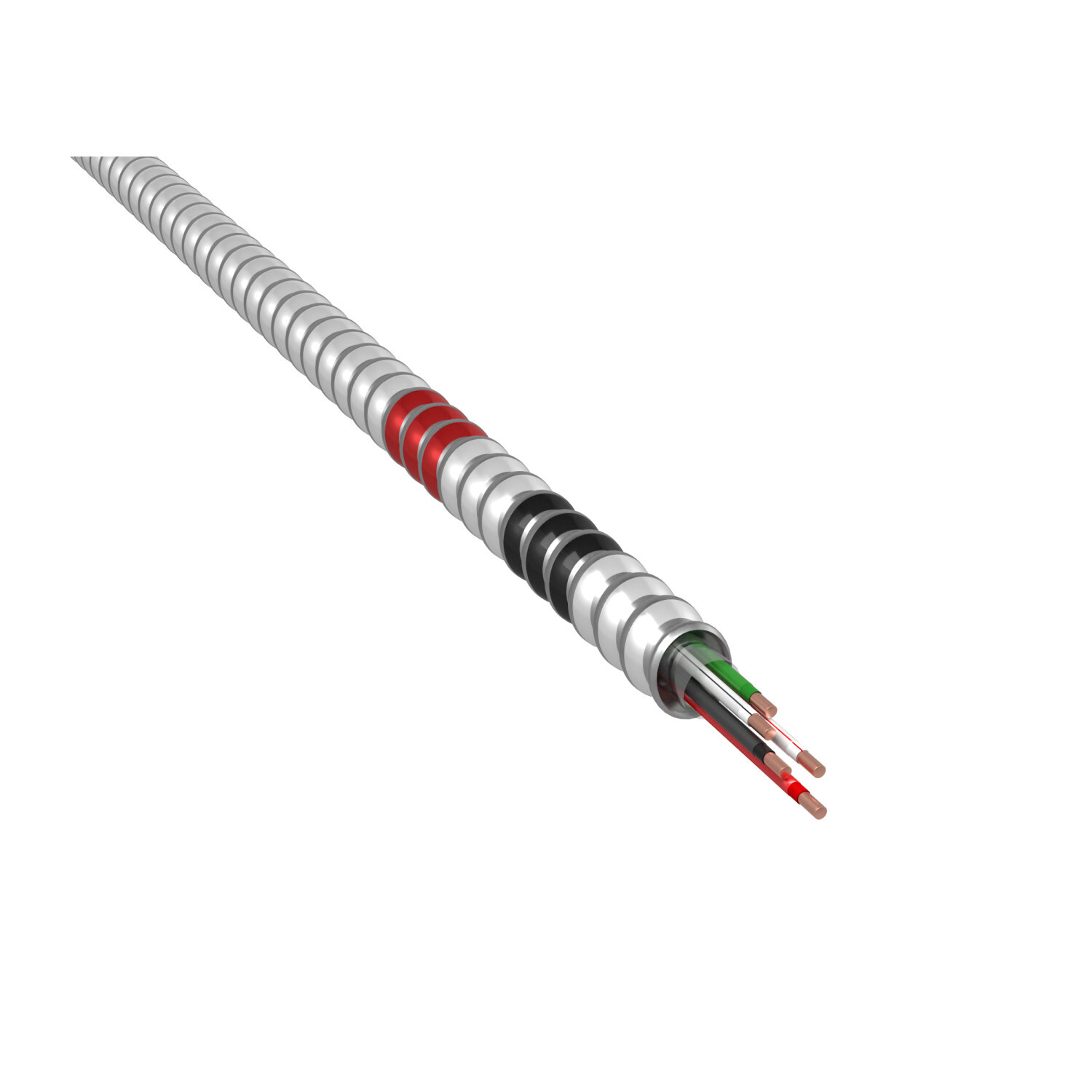

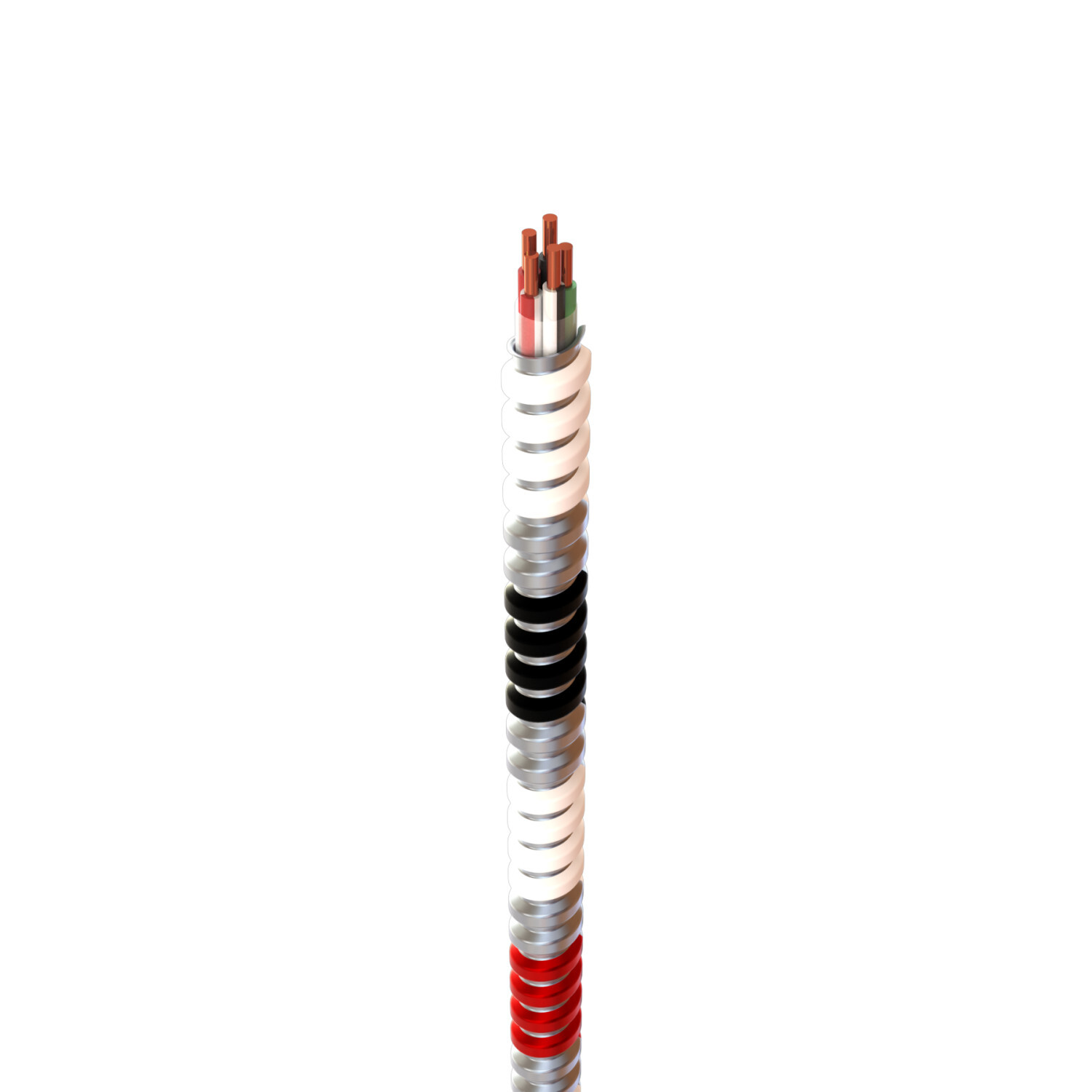

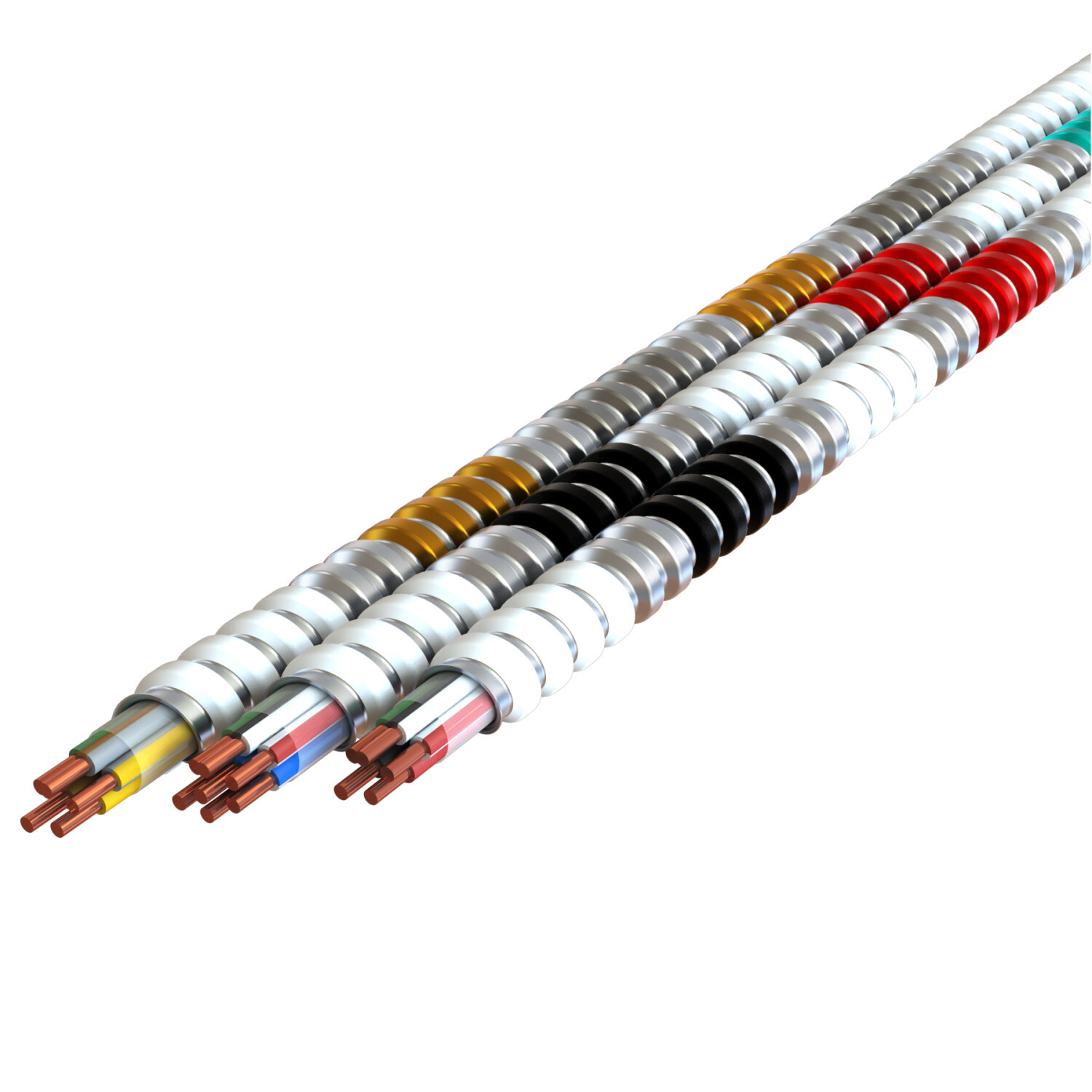

3914-60-00 MC-Plus Traditional Type MC Neutral Per Phase Armored Cable, Reel Packaging, 600 V, (12) 10 AWG Solid Copper Conductor, 250 ft L

MFR:
ATKORE - AFC CABLE
MFR #:
3914-60-00
UPC:
077680260079
Item #:
411394

Atkore's MC Plus is the modern-day Type MC homerun cable that incorporates a neutral per-phase design ideal for multi-wire branch circuit applications and addresses harmonics distortions in power distribution systems. MC Plus's neutral per-phase design eliminates shared neutrals and the risk of overloading. This design also helps quickly identify faulty circuits, reducing outages. The MC Plus cable offers improved safety and efficiency in electrical systems for a range of applications.

Manuals & Documentation
Catalog Number 3914-60-00
Manufacturer ATKORE - AFC CABLE
Brand AFC Cable Systems
Sub Brand MC Plus
Country of Origin United States
Made in USA Yes
Armour Interlocked Galvanized Steel Strip
Bend Radius 14.685
Color White
Conductor Material Copper
Conductor Size 10 AWG
Finish White Paint
Material Galvanized Steel
Number of Conductors 13
Standard UL 83, 1479, 1569, 1581, 2556, File Reference E80042 NEC® 210.4(B), 230.43, 300.22(C), 330, 392, 396.10(A), 645Federal Specification A-A–59544 (formerly J-C–30B) Meets all applicable OSHA and HUD Requirements UL Classified 1, 2, and 3 hour through (Fire) penetration product, R–14141
UPC 077680260079
GTIN 00077680260079
Item Type MC-Plus® Neutral Per Phase Steel Armored Cable
Length 1000
Length UOM Foot
Weight 0.7614 LB/FT
Inside Diameter 0.729 IN
Outside Diameter 0.979 IN
Temperature Rating 194
Trade Size 10-12
Voltage Rating 600V
