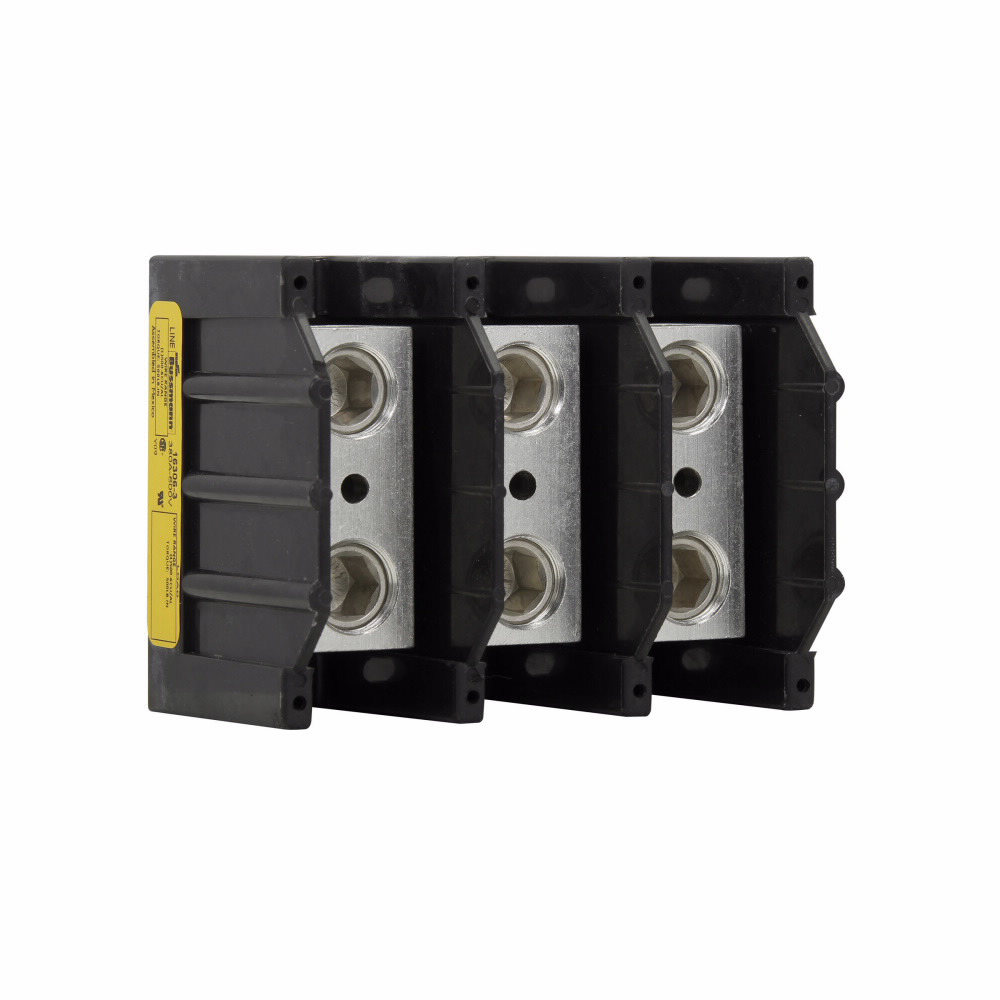

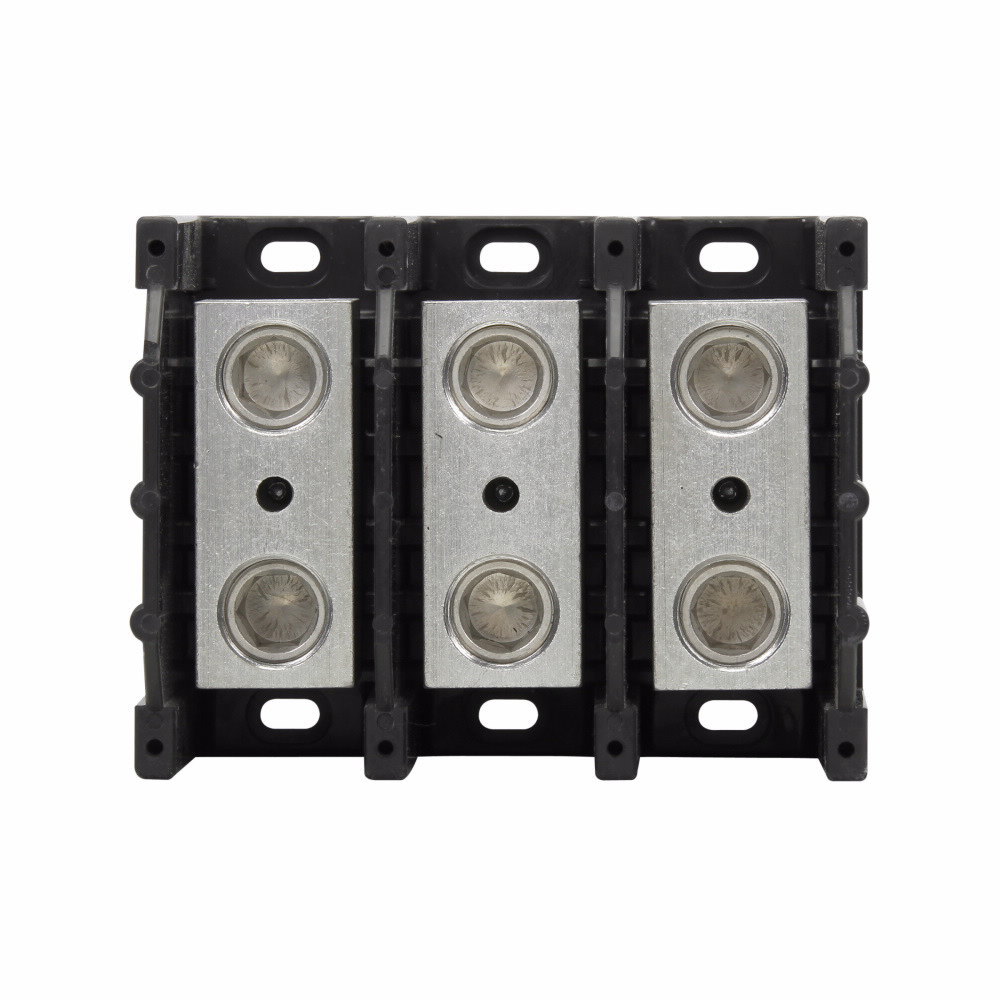

16306-3 Barrier Power Splicer Block, 600 V AC/DC, 380 A, 3 Poles, 6 AWG to 500 kcmil Cu/Al Line Wire, Aluminum/Thermoplastic
- MFR:
- Eaton Bussmann
- MFR #:
- 16306-3
- UPC:
- 051712556378
- Item #:
- 410953
16306-3 Barrier Power Splicer Block, 600 V AC/DC, 380 A, 3 Poles, 6 AWG to 500 kcmil Cu/Al Line Wire, Aluminum/Thermoplastic
- MFR #:
- 16306-3
- UPC:
- 051712556378
- Item #:
- 410953
Bussmann provides the broadest offering of UL listed Cable Limiters, Welder Limiters, Circuit Limiters and accessories. With products rated for AC or DC applications to suit your specific application requirements.
Manuals & Documentation
| Catalog Number | 16306-3 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 380 |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| Color | Black |
| Connection | Splicer |
| Material | Molded thermoplastic base, tin plated aluminum connector |
| Special Features | Short Circuit Current Rating 10 kA |
| Standard | Contact Manufacturer,RoHS Compliant |
| UPC | 051712556378 |
| GTIN | 00051712556378 |
| Item Type | Power splicer block |
| Weight UOM | Pounds |
| Size | 5.21 In Length X 4.00 In Width X 3.32 In Height |
| Voltage Rating | 600 Vac, 600 Vdc |
