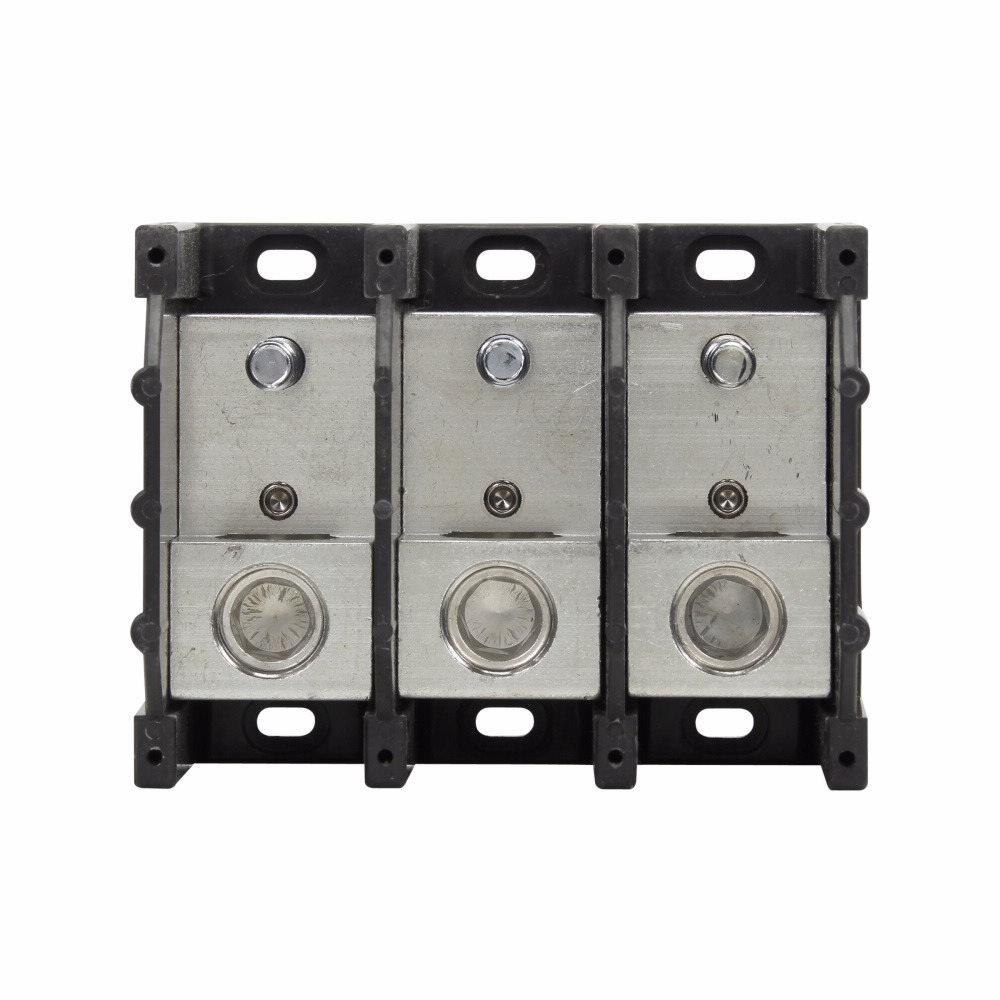

16383-3 Barrier Power Terminal Block, 600 V AC/DC, 380 A, 3 Poles, 6 AWG to 500 kcmil Cu/Al Line Wire, Aluminum/Thermoplastic
- MFR:
- Eaton Bussmann
- MFR #:
- 16383-3
- UPC:
- 051712271455
- Item #:
- 410950
16383-3 Barrier Power Terminal Block, 600 V AC/DC, 380 A, 3 Poles, 6 AWG to 500 kcmil Cu/Al Line Wire, Aluminum/Thermoplastic
- MFR #:
- 16383-3
- UPC:
- 051712271455
- Item #:
- 410950
Bussmann provides the broadest offering of UL listed Cable Limiters, Welder Limiters, Circuit Limiters and accessories. With products rated for AC or DC applications to suit your specific application requirements.
Manuals & Documentation
| Catalog Number | 16383-3 |
| Manufacturer | Eaton Bussmann |
| Brand | Eaton Bussmann Series |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 380 |
| Application | Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs |
| Color | Black |
| Connection | Load: (1) 3/8 - 16 x 1 Stud |
| Material | Thermoplastic base, tin plated aluminum connector |
| Special Features | Short Circuit Current Rating 10 kA |
| Standard | RoHS Compliant,Contact factory |
| UPC | 051712271455 |
| GTIN | 00051712271455 |
| Item Type | Power terminal block |
| Weight UOM | Pounds |
| Size | 5.21 In Length X 4.00 In Width X 3.32 In Height |
| Voltage Rating | 600 Vac/dc maximum |
| Wire Size | #6 AWG-500 kcmil Cu/Al |
