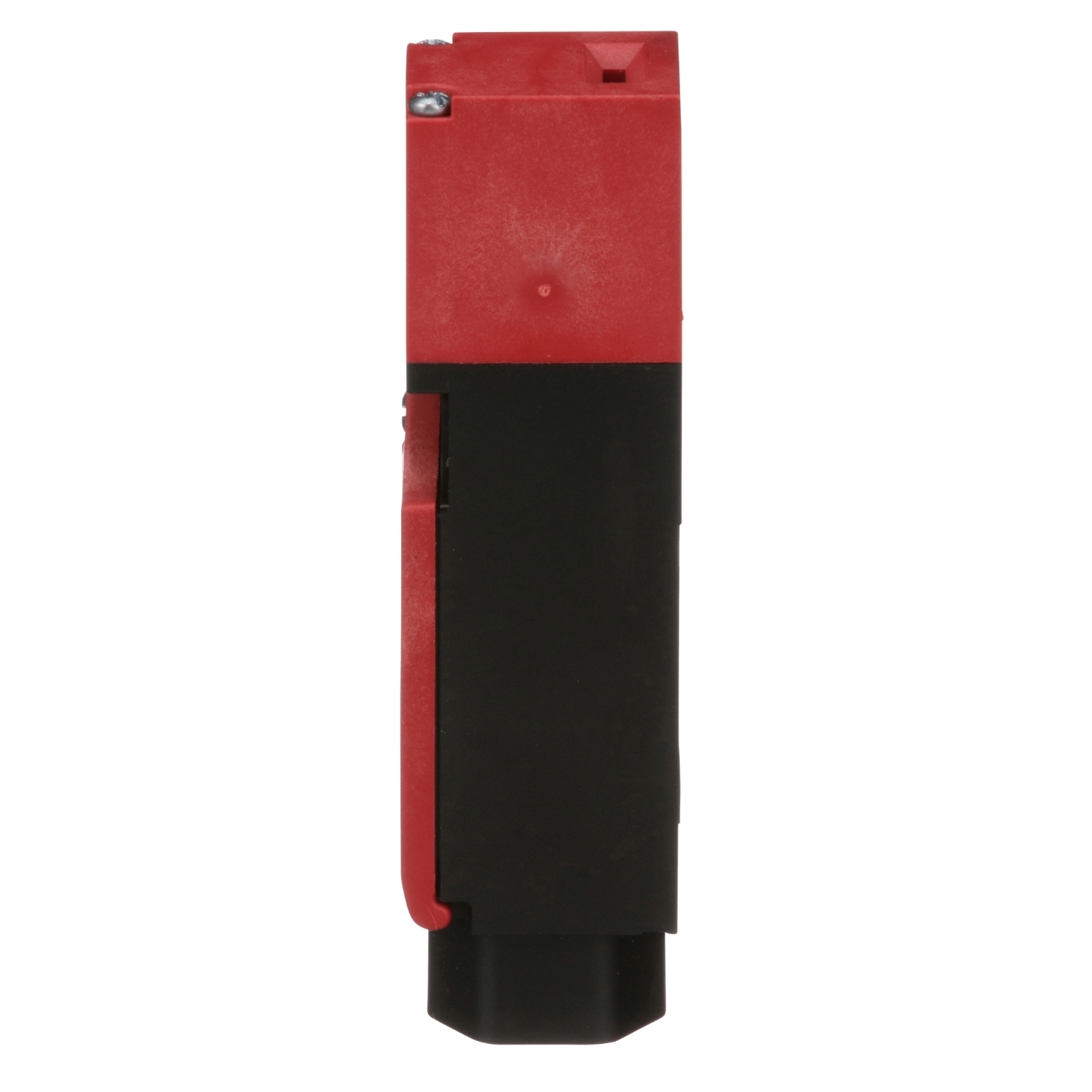

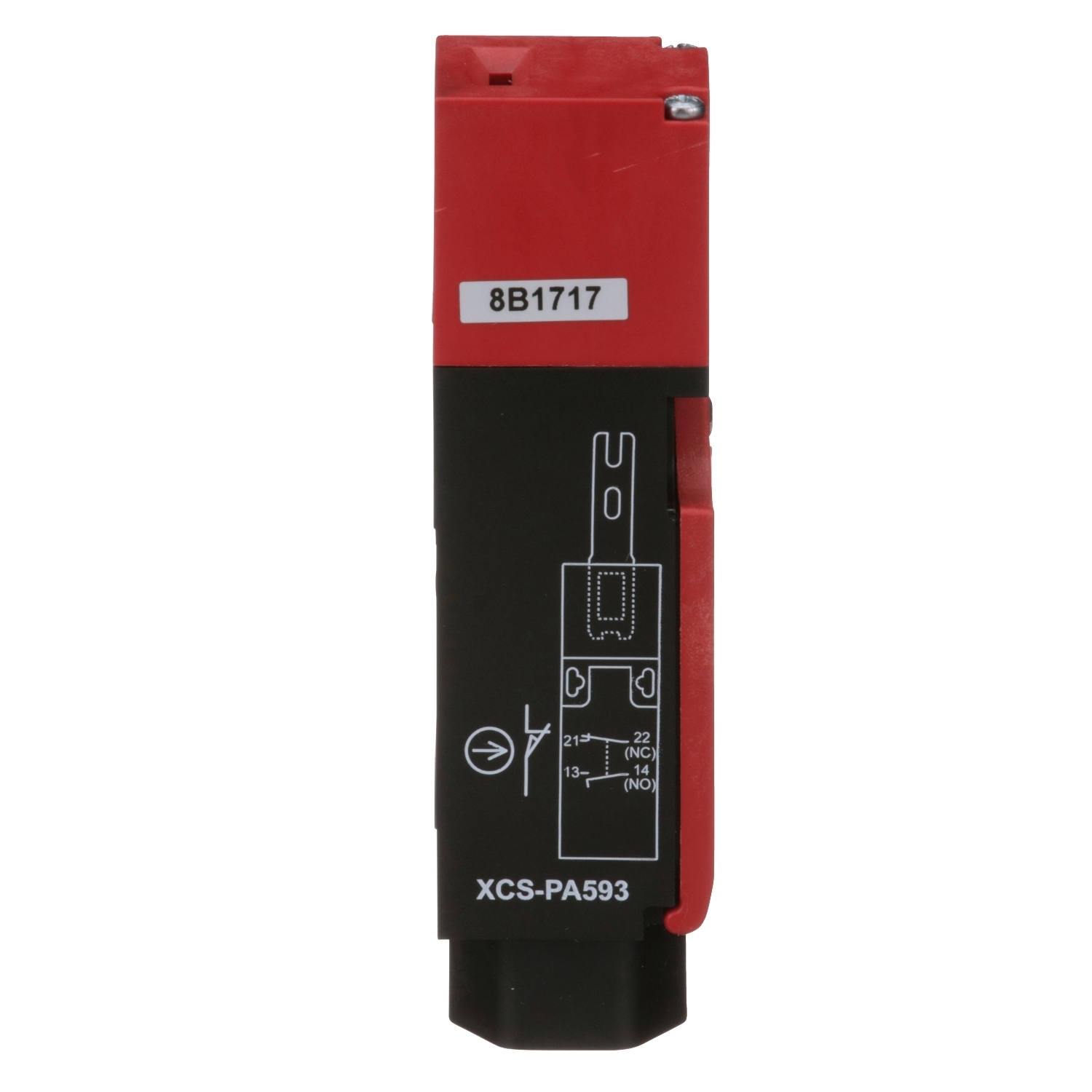

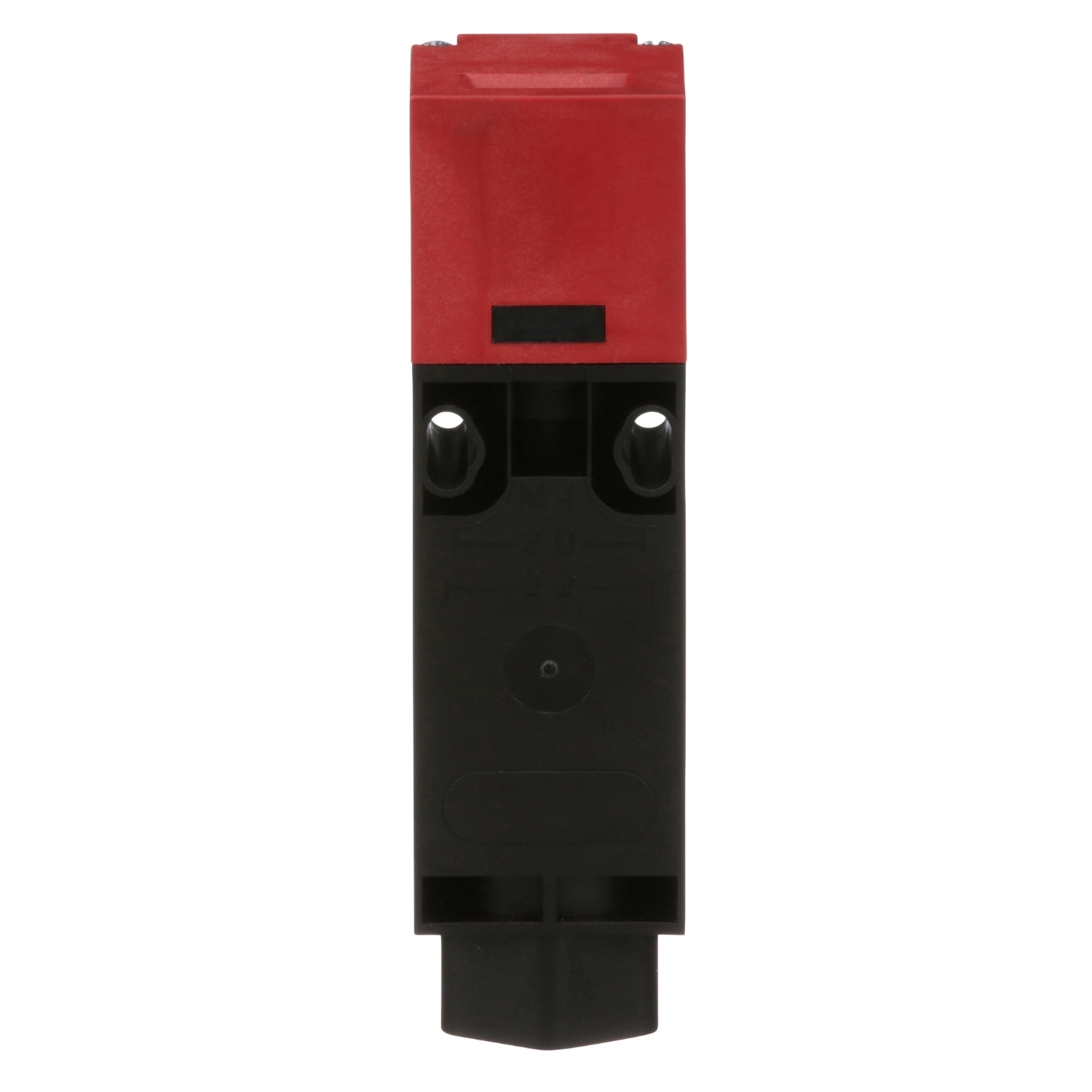

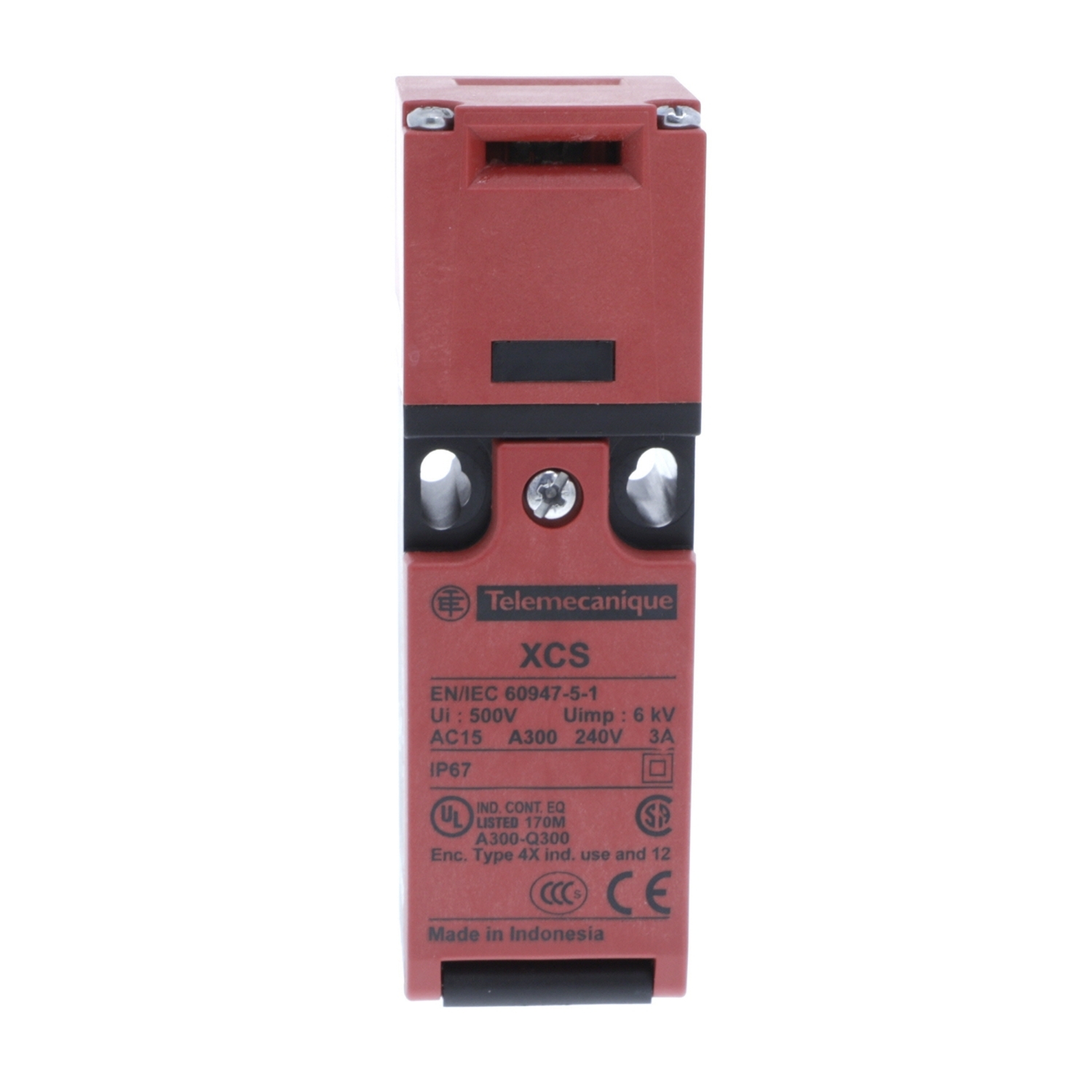

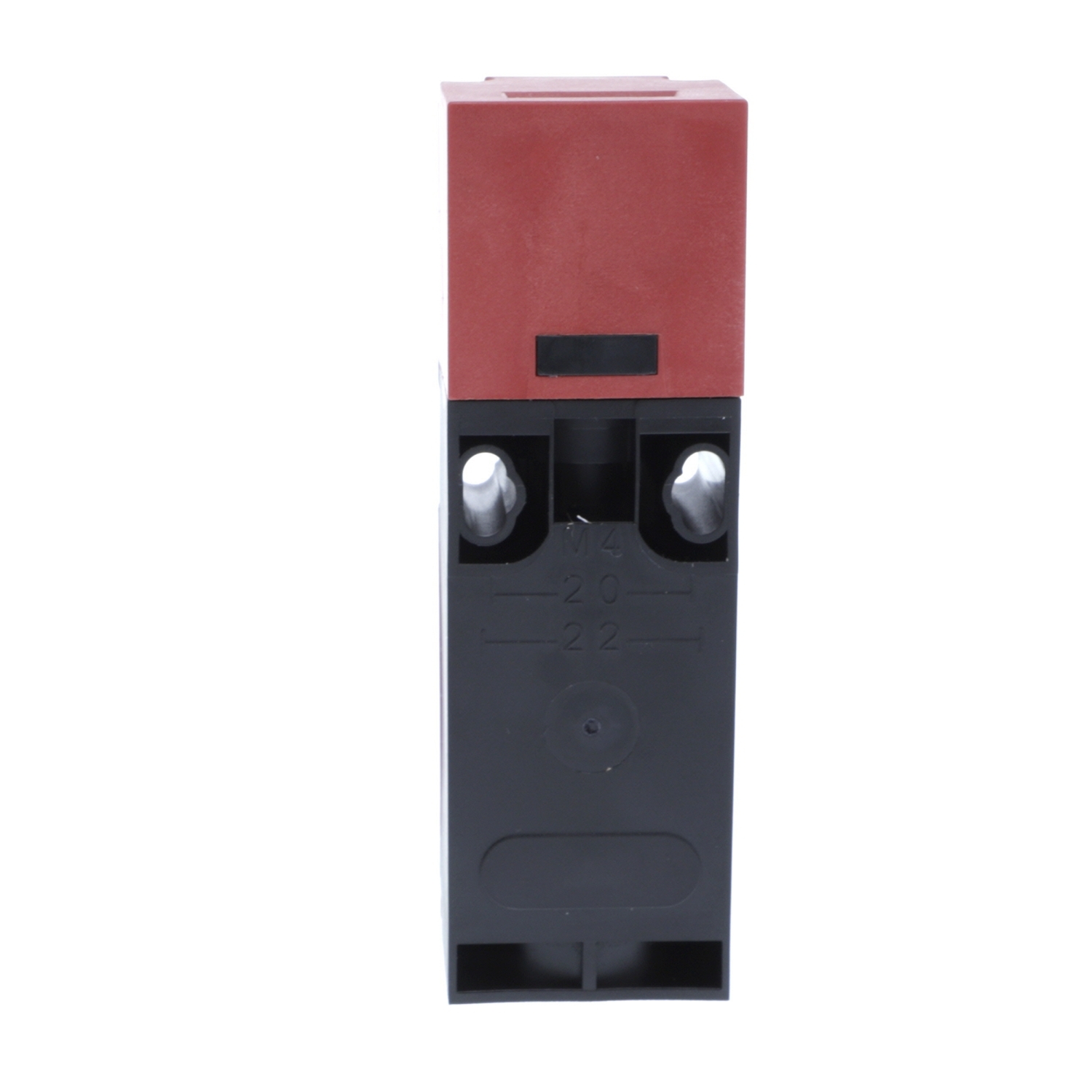

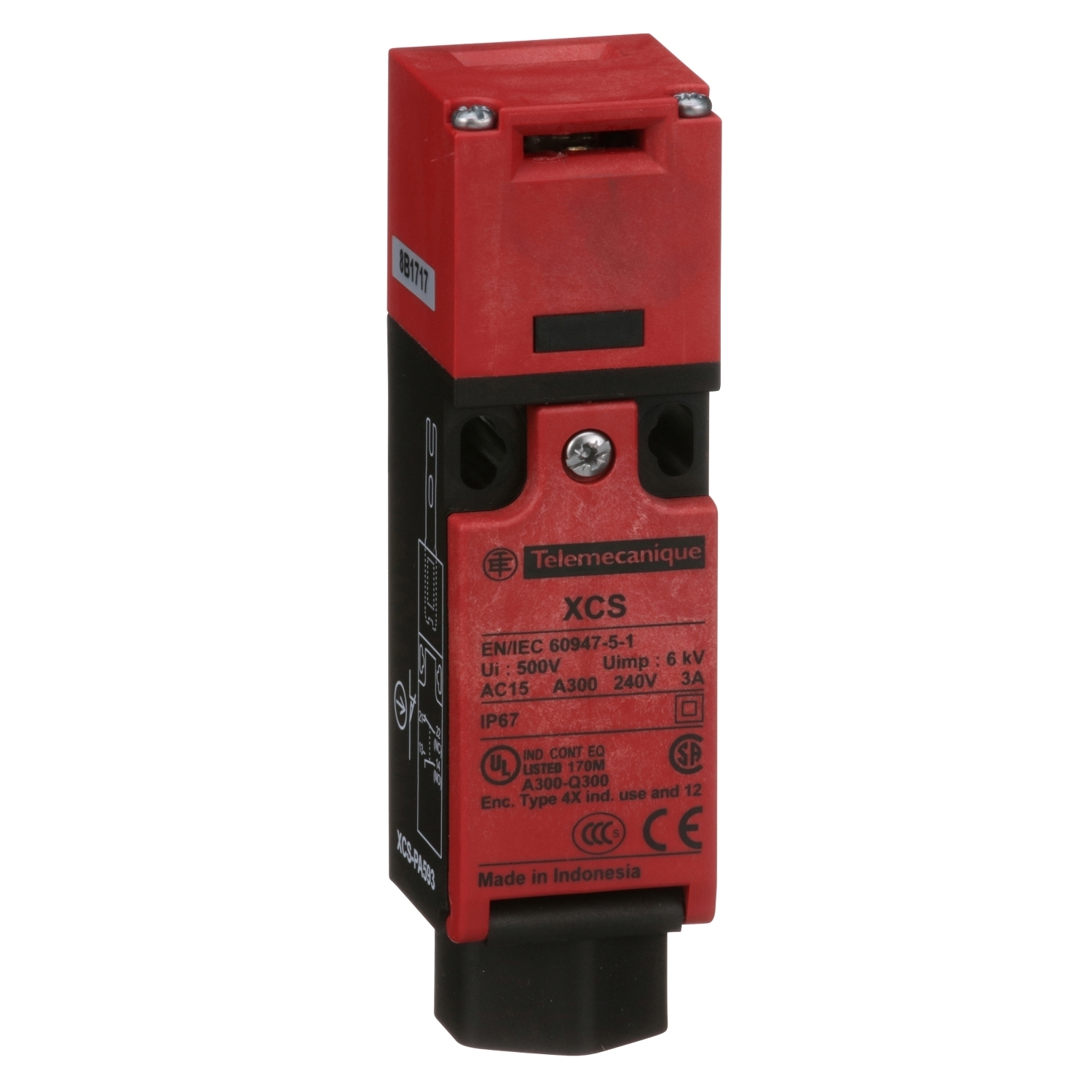

XCSPA593 Preventa XCSPA Safety Interlock Switch, 300 V AC, 10 A, 2 Poles
- MFR:
- Telemecanique Sensors
- MFR #:
- XCSPA593
- UPC:
- 785901720607
- Item #:
- 41056
XCSPA593 Preventa XCSPA Safety Interlock Switch, 300 V AC, 10 A, 2 Poles
- MFR #:
- XCSPA593
- UPC:
- 785901720607
- Item #:
- 41056
Preventa safety switches are for controlling the safe opening and interlocking of guards and covers to installations. Protection of operators by stopping the machine when the actuator attached to the machine guard is withdrawn from the head of the switch. Preventa switches with metal housings are designed for heavy duty industrial machines with quick rundown time (key operated switches XCSA, XCSB, XCSC) or with slow rundown time (Key operated switches with solenoid XCSLF, XCSE). Preventa switches with plastic housings are designed for light industrial machines with quick rundown time (key operated switches XCSMP, XCSPA, XCSTA) or with slow rundown time (key operated switches with solenoid XCSLE, XCSTE). As far as safety is concerned all dangerous machines in all sectors are involved. Preventa safety switches can be used in packaging, handling, robotics, machine tools, presses, and automotive sectors. It secures the machine and system operation with a key, only available to authorized operators.
Manuals & Documentation
| Catalog Number | XCSPA593 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | Slow-break, break before make |
| Actuator | KEY |
| Amperage Rating | 10 |
| Application | KEY OPERATED TURRET HEAD |
| Connection | Terminal 1 x 0.5...2 x 1.5 mm² with or without cable end |
| Contact Configuration | 1 NC + 1 NO |
| Enclosure | NEMA 4/4X/12 - IP67 |
| Insulation | Double insulated |
| Number of Poles | 2 |
| Operating Cycles | 10 CYC/MN FOR MAXIMUM DURABILITY |
| Special Features | PLASTIC,WITHOUT LOCKING OF ACTUATOR |
| Standard | 10 GN 11 MS IEC 60068-2-27,5 GN 10-500 HZ)IEC 60068-2-6,CSA-UL,EN/ISO 12100-UL 508-EN/IEC 60204-1-EN 1088/ISO 14119-EN/IEC 60947-5-1-CSA C22.2 NO 14,IP67 EN/IEC 60529 AND EN/IEC 60947-5-1,CLASS II EN/IEC 61140 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=859824&lang=en-us |
| UPC | 785901720607 |
| GTIN | 03389110720600 |
| Item Type | Safety switch |
| Size | 1.18 |
| Environmental Conditions | WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR) |
| Operating Temperature | -25-70 A Degrees C |
| Voltage Rating | 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1-3 A 240 V, AC-15, A300 EN/IEC 60947-5-1-0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 |
