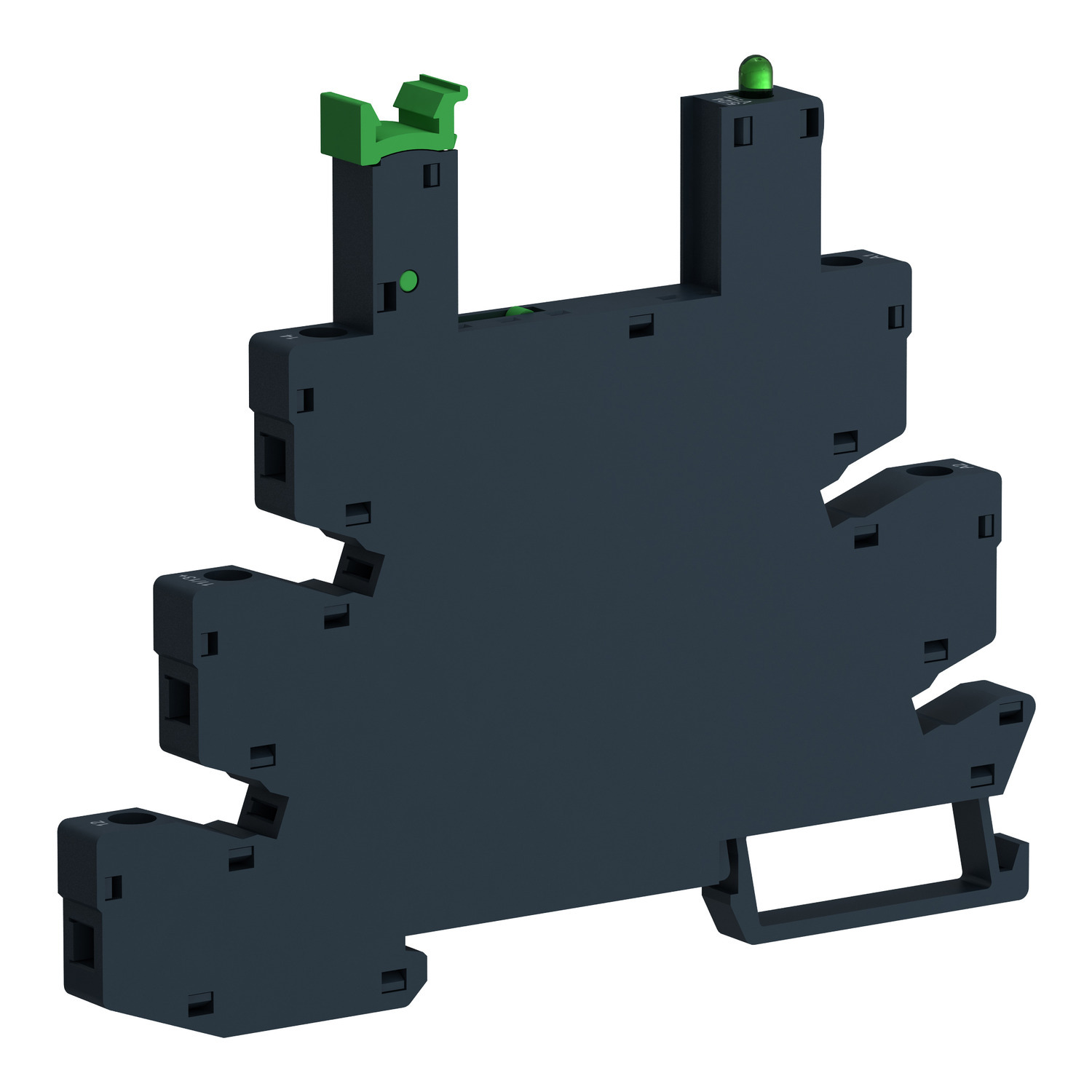

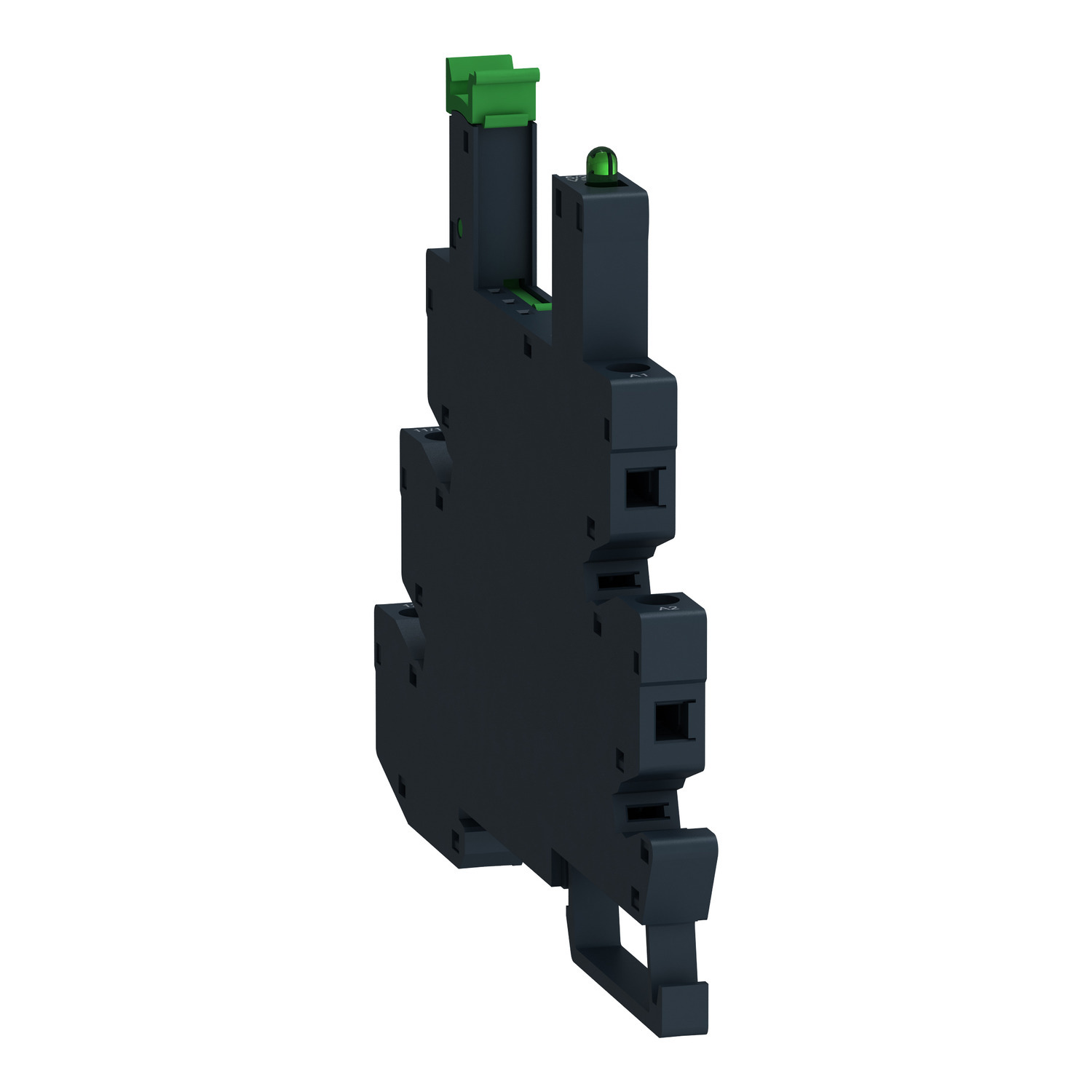

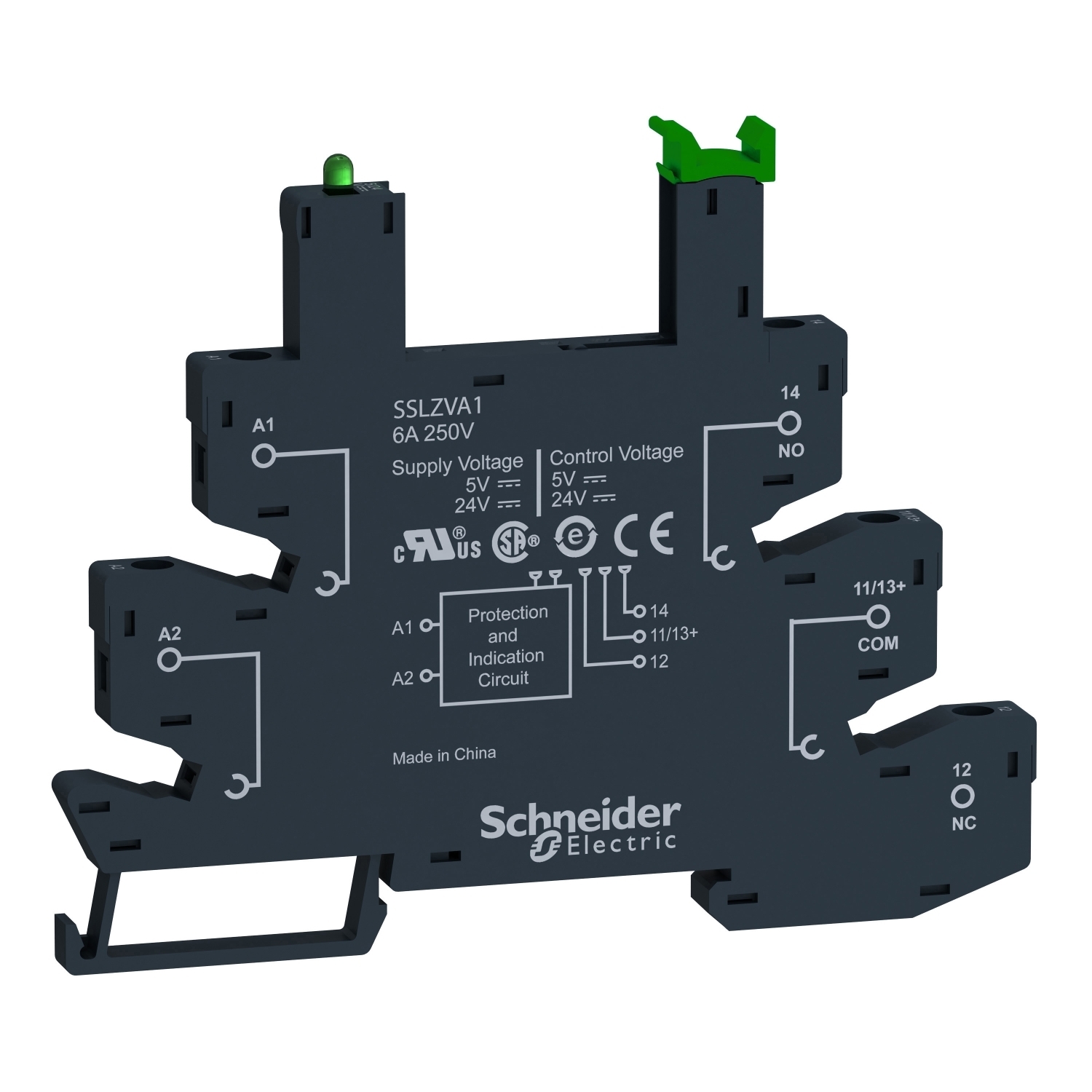

SSLZVA1 Socket, 5 to 24 V DC, 6 A, For Use With Zelio SSL1D03JD, SSL1D101JD, SSL1A12JD, SSL1A12JDR, SSM and SSP Relay, 5 Pin
- MFR:
- Schneider Electric
- MFR #:
- SSLZVA1
- Item #:
- 408578
SSLZVA1 Socket, 5 to 24 V DC, 6 A, For Use With Zelio SSL1D03JD, SSL1D101JD, SSL1A12JD, SSL1A12JDR, SSM and SSP Relay, 5 Pin
- MFR #:
- SSLZVA1
- Item #:
- 408578

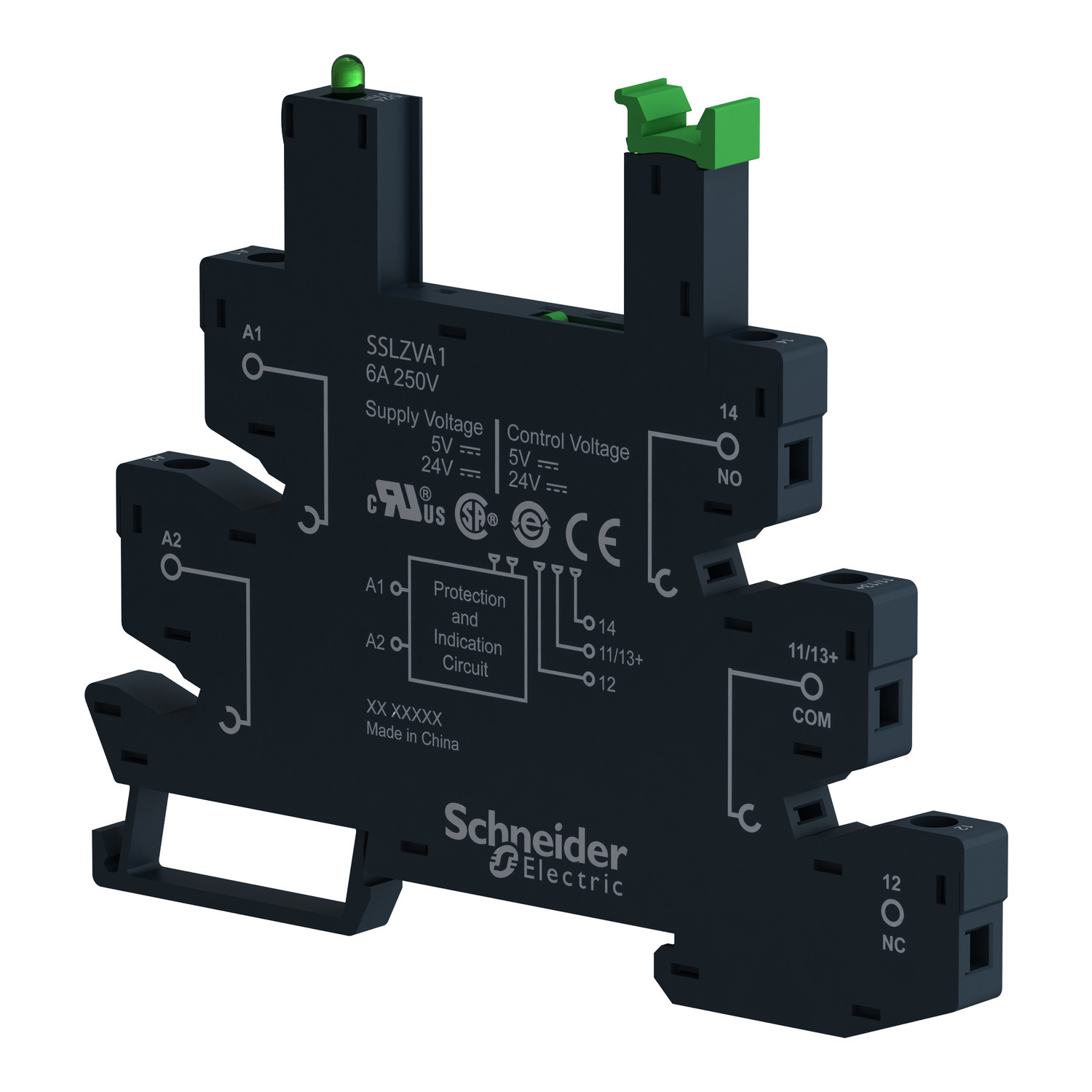

This Harmony SSL socket for solid state slim interfacing relay has screw clamp terminals and a rated voltage of 5V DC. It also offers clear circuit labelling on the sides to facilitate installation and maintenance. It features a visual indicator LED for a simpler troubleshooting and commissioning. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Manuals & Documentation
| Catalog Number | SSLZVA1 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Country of Origin | China |
| Made in USA | No |
| Application | Solid state relay SSL NO 24 V DC;solid state relay SSL NO 5 V DC |
| Connection | Screw clamp terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) solid without cable end;screw clamp terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end |
| Mounting | Din Rail |
| Special Features | for input status LED (green) |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=267287177&lang=en-us |
| GTIN | 03606480580123 |
| Item Type | Socket for SSL1 |
