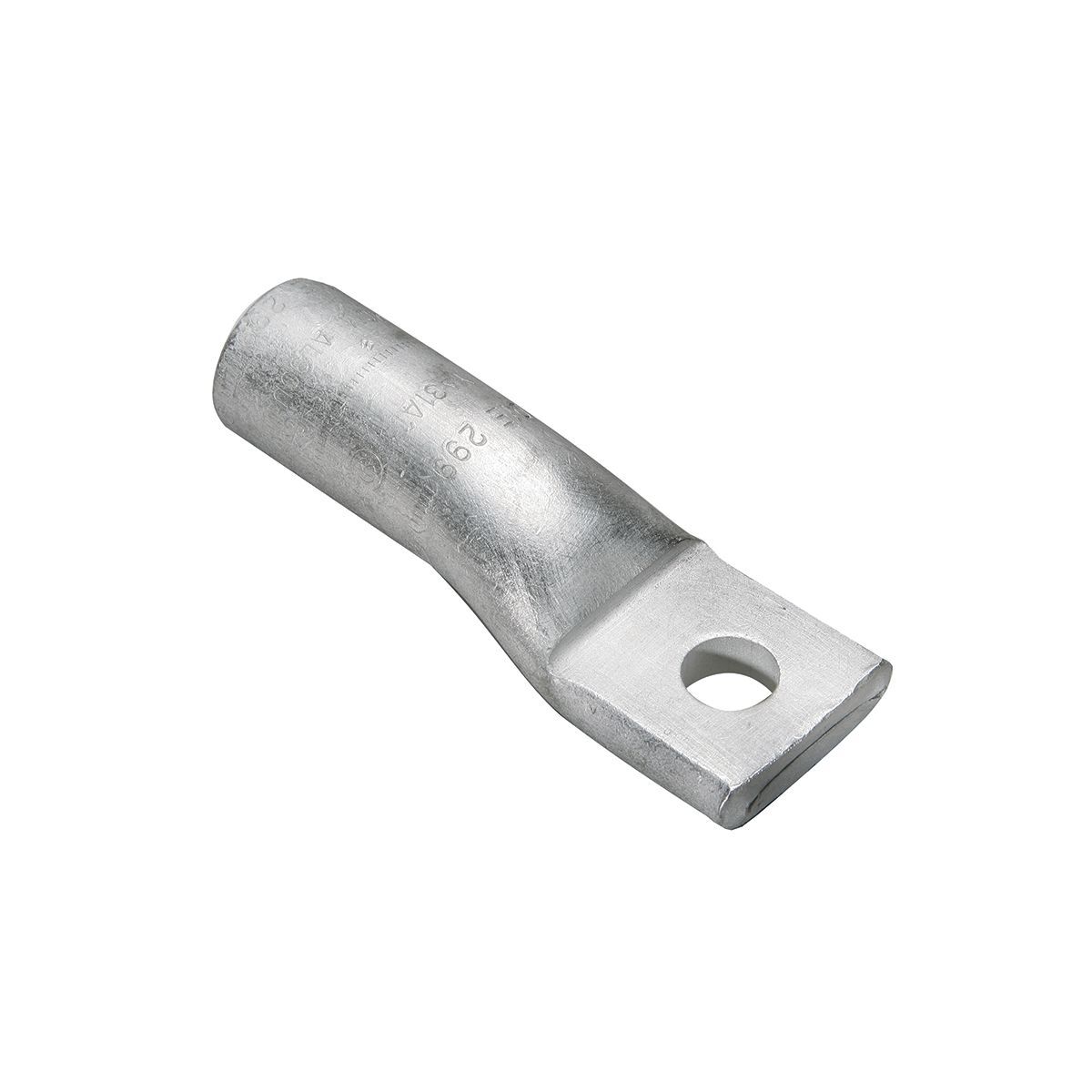

YA32A1 YA-A 1-Hole Dual Rated Uninsulated Compression Lug, 400 kcmil Aluminum/Copper Conductor, Die Code: 472, 5/8 in Stud, Electro Plated Tin Aluminum
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YA32A1
- UPC:
- 781810755907
- Item #:
- 408336
YA32A1 YA-A 1-Hole Dual Rated Uninsulated Compression Lug, 400 kcmil Aluminum/Copper Conductor, Die Code: 472, 5/8 in Stud, Electro Plated Tin Aluminum
- MFR #:
- YA32A1
- UPC:
- 781810755907
- Item #:
- 408336
Manuals & Documentation
| Catalog Number | YA32A1 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | ALUMINUM |
| Special Features | Features: Type YA-A Aluminum Tin-Plated Compression HYLUG Terminals are dual-rated and designed for use on both aluminum and copper conductors. Designed for heavy duty application to 35kV. YA-A terminals are prefilled with PENETROX oxide inhibitor and assembled with color-coded end caps. Designed for a permanent trouble-free electrical termination. Heavy duty wall thickness provides maximum conductivity, low resistance, and ductility. Electro-Tin Plating provides durable long lasting corrosion resistance. Internally bevelled barrel provides easy cable insertion. Meets UL486B 90 DEG C Requirements. Connector is clearly marked with wire size, die index, color-code and proper number and location of crimps. Color-Coded End Caps inserted in barrel end prevents foreign material from entering and contaminating the connector prior to usage. UL Listed 90 DEG C, 600 V - 35 kV |
| Standard | UL 486A-486B |
| UPC | 781810755907 |
| GTIN | 00781810755907 |
| Item Type | YA-A, Dual Rated |
| Voltage Rating | 35 |
