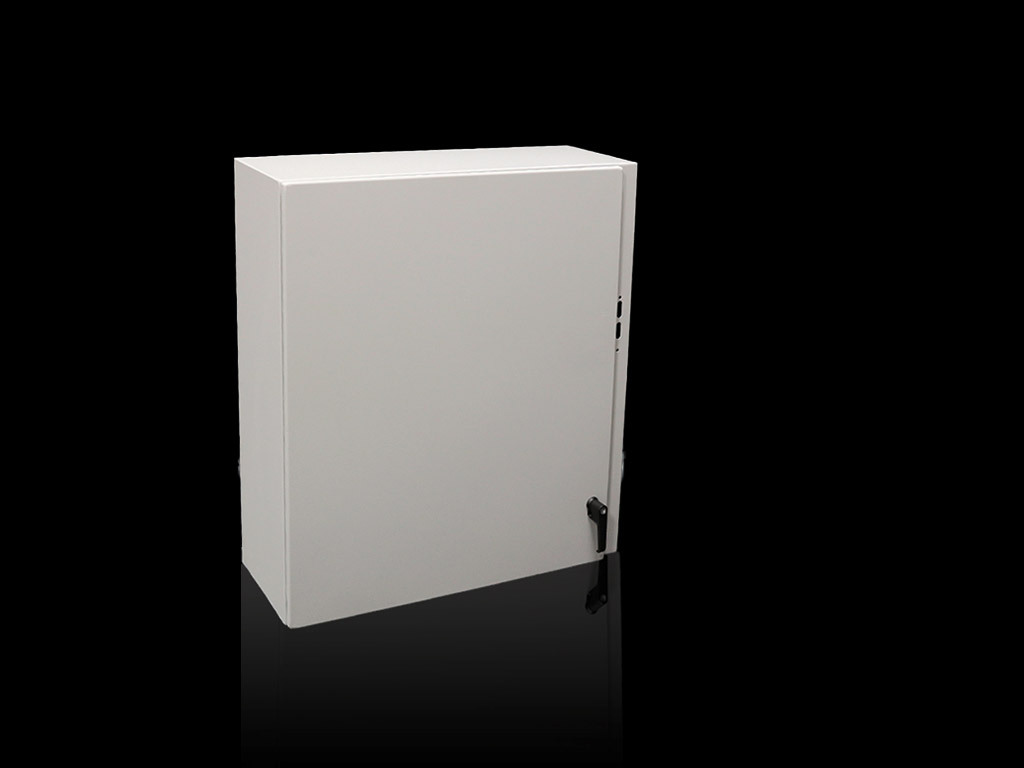

These flange mount disconnect wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include a cold rolled steel body and door, and a zinc plated mounting panel.
Manuals & Documentation
Features
- Size: 32 Inch Width x 12 Inch Depth x 36 Inch Height
- One-piece welded cold-rolled steel body
- Double door and disconnect enclosures have a 3-point latching L-handle
- Wallmounting holes (carbon steel versions) and blind riv-nuts (stainless steel versions)
- Single door enclosures less than 20 Inch in height have one 1/4 turn latch with screwdriver insert
- Single door enclosures 20.000 - 40 Inch in height have two 1/4-turn latches with screwdriver inserts
- Single door enclosures greater than or equal to 42 Inch in height have a 3-point latching L-handle
| Catalog Number | 8017580 |
| Manufacturer | Rittal |
| Brand | Rittal |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Industrial |
| Color | RAL 7035 |
| Construction | Multi-Fold Single Piece Body Construction |
| Insulation | Foamed-in PU Seal |
| Material | Stainless Steel |
| Mounting | Wall |
| NEMA Rating | 4 |
| Special Features | Features: NEMA Protection Through a Secure Locking System, Stylish, Modern Design |
| Standard | UL Listed, cUL Listed |
| RoHS Indicator | Yes |
| UPC | 639889831575 |
| GTIN | 00639889831575 |
| Item Type | Compact Enclosure |
| Length | 37.5000 |
| Length UOM | Inch |
| Width | 12.0000 |
| Width UOM | Inch |
| Height | 52.0000 |
| Height UOM | Inch |
| Weight | 138.000 |
| Weight UOM | Pounds |
| Size | 900 (H) x 825 (W) x 300 (D) |
