WLK 8IN PREWIRED SURF STYLE ASSEMBLY BK
- MFR:
- Legrand-Wiremold
- MFR #:
- 8ATC2PBK
- UPC:
- 786564089858
- Item #:
- 407921

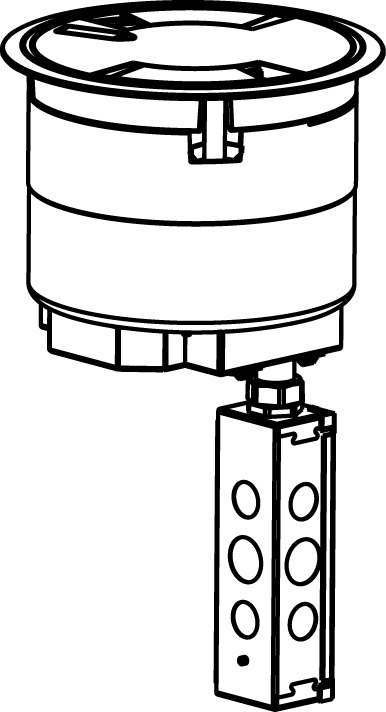

WLK 8IN PREWIRED SURF STYLE ASSEMBLY BK
- MFR #:
- 8ATC2PBK
- UPC:
- 786564089858
- Item #:
- 407921
For carpet, tile, wood and laminate concrete floor coverings. For use in 8 (203mm) diameter opening. Devices are recessed 3 1/4 (83mm) below floor surface. Die-cast aluminum cover assembly is available in the following powder coated finishes: (BK) black, (GY) gray, (NK) nickel, (BS) brass, (BZ) bronze, and (AL) aluminum. INCLUDED: For Side Compartments: Two (2) proprietary 20A Duplex Receptacles installed. For Center Compartment: No Device Plates are provided. For Bottom Feed Compartment: One (1) 5BLH 1/2-Gang Blank Housing (Tunneling extends from the 5BLH to 575CHA so that power cables from the 20A duplex receptacle mounted on the left side of the poke-thru device are run into the junction box attached to the 575CHA.), Three (3) 1PTHA 1-Gang Pass-Through Housing Assembly, One (1) 575CHA 1/2-Gang 3/4 Conduit Housing Assembly (also includes junction box attached to the 3/4 conduit), One (1) 8DIV 8 Divider. NOTE: UL Fire Classified for up to 2-hour rated floors. Receptacles can be wired as a standard or isolated ground device. Finish - Black
| Catalog Number | 8ATC2PBK |
| Manufacturer | Legrand-Wiremold |
| Brand | Legrand-Wiremold |
| Country of Origin | United States |
| Made in USA | Yes |
| RoHS URL | http://www.ideadigitalcontent.com/files/11311/ROH_Legrand_ROHS_statement.pdf |
| UPC | 786564089858 |
| GTIN | 00786564089858 |
