| Special Features |

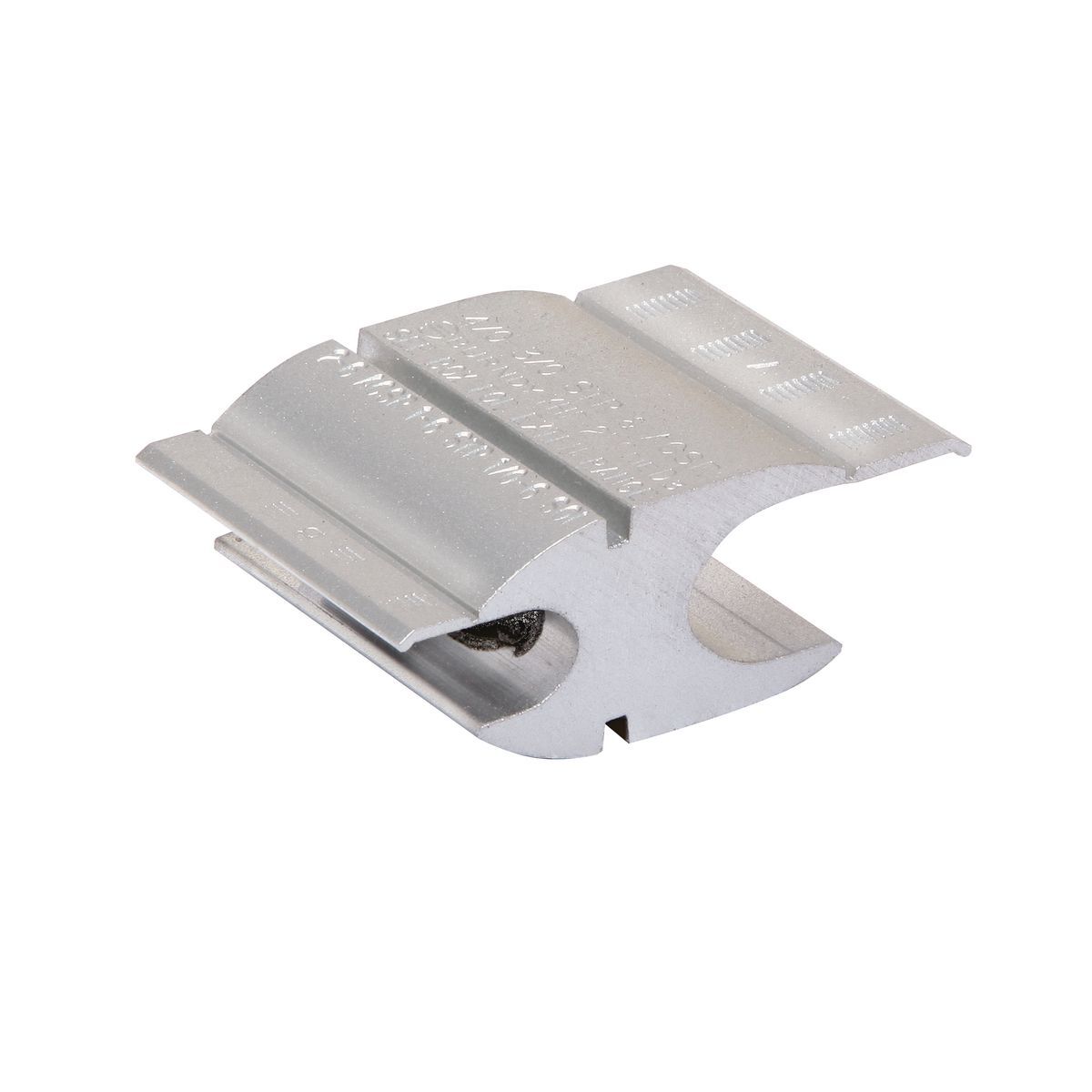

Features: Wide Range, Universal And Reversible Figure H Shaped Aluminum Connector, Conductors Are Separated By The Shape Of The Connector, Bendable Tabs Secure Both Run And Tap Conductors Freeing The Linemans Hands To Work With The Installation Tool, Massive Aluminum Design Minimizes Corrosion Due To Galvanic Corrosion, Prefilled With PENETROX Joint Compound And Individually Packaged, Conductor Ranges And Tooling Clearly Printed On Connector And Package, Cable Diameter Range (tap): 0.162 - 0.332 IN, Cable Diameter Range (run): 0.475 - 0.563 IN, Tools, Die Set Catalog Number, And (number Of Crimps): MD6-8, MD7-8 Tool, (5), Y35, Y750 Tool, UD3 Die, (2), Y45 Tool, UD3 Die With PT-6515 Adapter, (2), Y46 Tool, UD3 Die With PUADP-1 Adapter, (2), Die Index: D3 Element A, Installation Tool: Mechanical Or Hydraulic Installation Tooling, Conductor Size (run - Range): 2 AWG - 300 KCMIL, Conductor Type: Run: ACSR, Aluminum Solid, Copper Solid, Aluminum Stranded, Copper Stranded, Tap: ACSR, Aluminum Solid, Copper Solid, Aluminum Stranded, Copper Stranded, Conductor Size (tap Range): 6 - 1/0 AWG, Shape: H |
