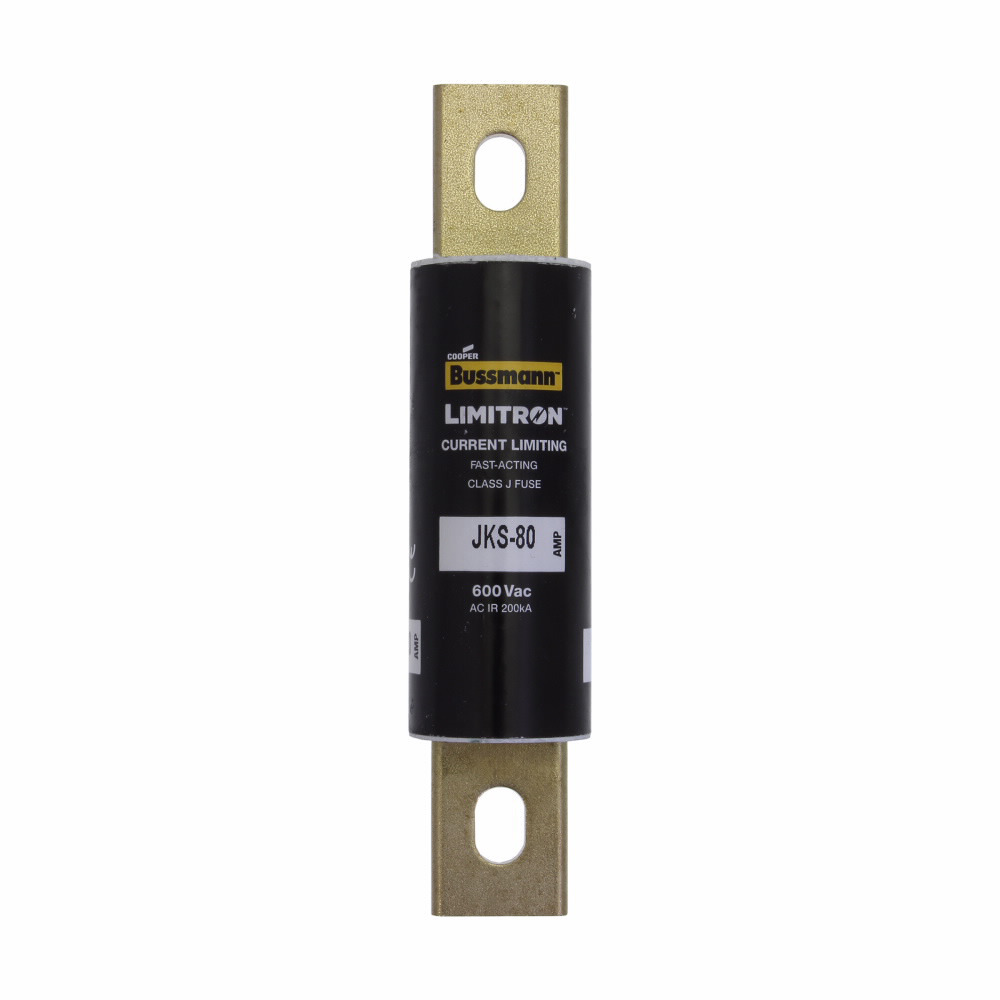

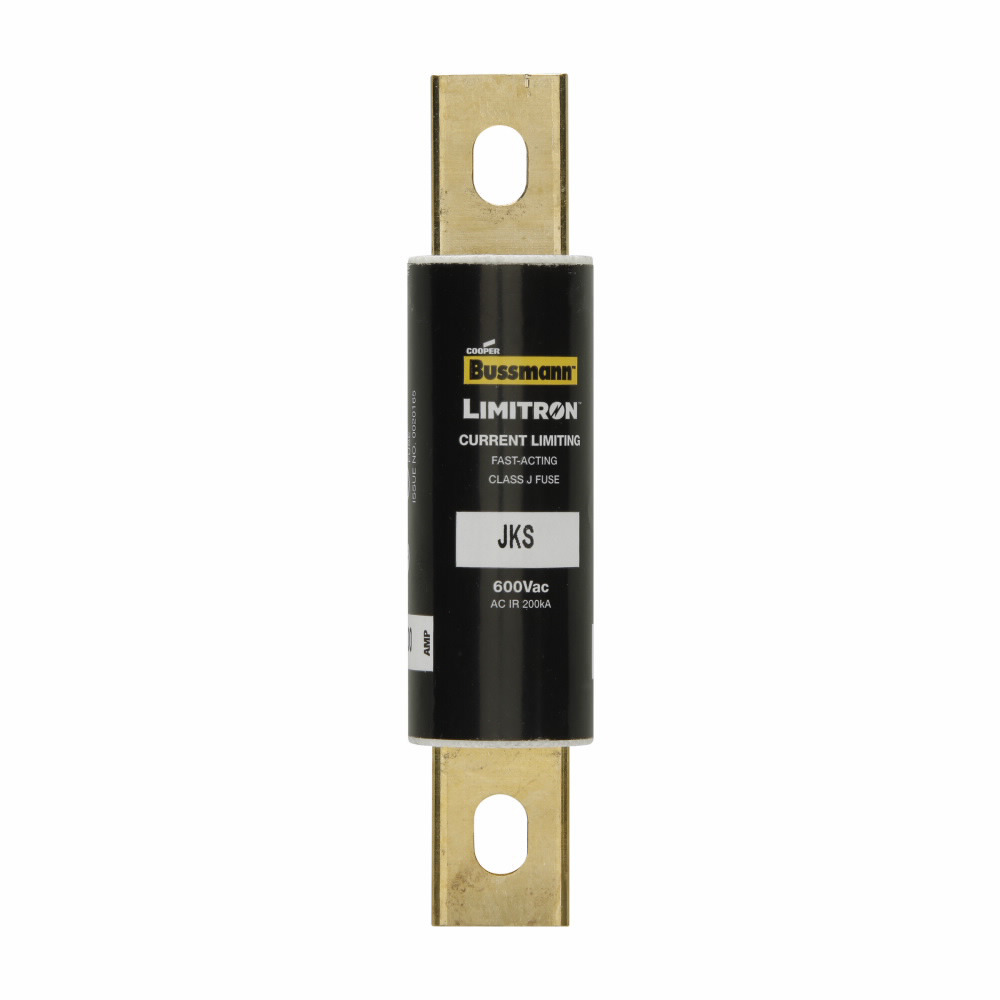

JKS-80 Limitron Current Limiting Fast Acting Fuse, 80 A, 600 V, 200 kAIC Interrupt, J Class, Cartridge Body

MFR:
Eaton Bussmann
MFR #:
JKS-80
UPC:
051712630801
Item #:
405956

Bussmann's UL Class J fuse products extend both our Low-Peak family of products with our LPJ_SP and LPJ_SPI dual-element, time-delay fuses as well as our Limitron line offering fast-acting JKS fuses. The LPJ fuses provide industry leading 300,000 amp interrupting rating at 600Vac RMS Sym and 100kA Vdc while delivering a minimum of 10 seconds of 500 percent rated current ride-through performance which is ideal for sizing of high inrush loads. The LPJ products are available with optional permanent replace fuse indication. These UL Class J products in sizes 1 to 600 amps provide exceptional performance at 600 Vac and 300 Vdc (see spec sheets for specific details) in a compact size rejecting footprint

Manuals & Documentation
Catalog Number JKS-80
Manufacturer Eaton Bussmann
Brand Eaton Bussmann Series
Country of Origin Mexico
Made in USA No
Amperage Rating 80
Application Ind Facilities & Factories - Facility: Safety and Security Systems
Connection Bolted blade end x bolted blade end
Interrupt Rating 200 kAIC at 600 Vac
Special Features Indicating
Standard CE Marked,RoHS Compliant
UPC 051712630801
GTIN 00051712630801
Item Type Fuse
Weight UOM Pounds
Size 1.13 In Diameter X 4.63 In Length
Voltage Rating 600 V
