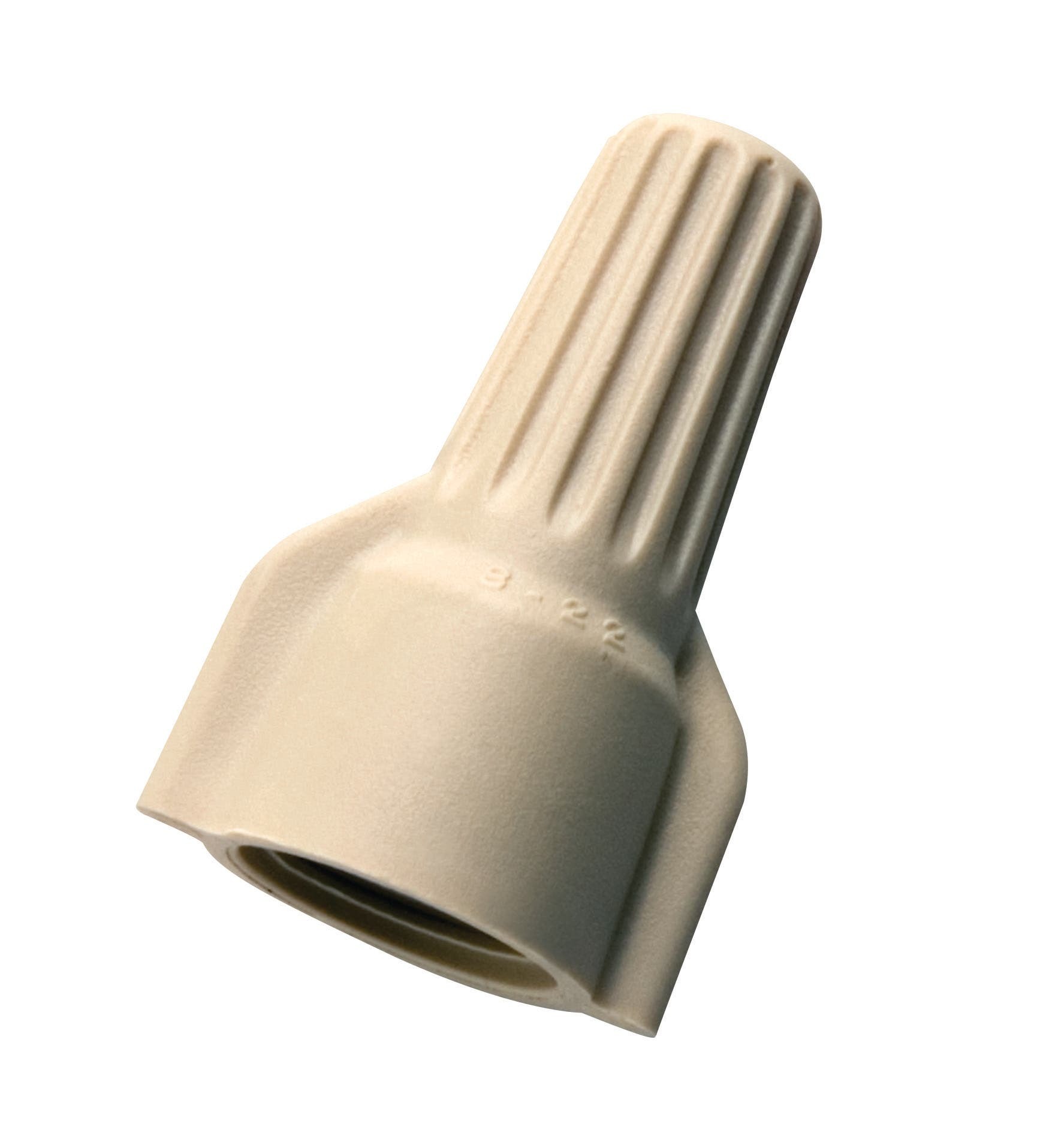

WT41-500JR WingTwist Wire Connector, Model WT41, Tan, Jar of 500
- MFR:
- Ideal Industries
- MFR #:
- WT41-500JR
- UPC:
- 781789967707
- Item #:
- 405828
WT41-500JR WingTwist Wire Connector, Model WT41, Tan, Jar of 500
- MFR #:
- WT41-500JR
- UPC:
- 781789967707
- Item #:
- 405828
With a full line for virtually every wire size and combination, the WingTwist Wire Connector offers a great combination of performance and value.The contoured wing design of the WingTwist provides maximum torque for a variety of electrical applications while the copolymer shell and live-action spring expand for smooth, progressive tightening providing dependable connections.With a tough, flame-retardant shell that withstands environmental extremes, and a long, deep skirt to provide maximum dielectric protection to prevent flash-over and turned-back strands, the WingTwist Wire Connector brings comfort and performance at a price that is right.
Manuals & Documentation
| Catalog Number | WT41-500JR |
| Manufacturer | Ideal Industries |
| Brand | Buchanan |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Insulating or Joining 1 or more conductors |
| Color | Tan |
| Conductor Range | 22 - 10 AWG, 2/20 AWG Min, 3/10 Solid AWG MAX |
| Material | Flame-retardant Polypropelene |
| Number of Conductors | 1 to 6 |
| Special Features | Features: Five Color-Coded Models Cover Common Construction Wire Ranges; Green Model Designed For Ground Connections; Unique Contoured Wing Design Acts As Built-In Wrench Providing Maximum Torque With Minimum Effort; Fixed, Square-Wire Spring Threads Itself Creating Secure Pressure Grip; Deep, Wide-Throated Skirt Protects Against Flash-Over And Turned-Back Strands For Maximum Dielectric Protection; UL 486C Listed (WGR UL 467 Listed) And CSA C22.2 #188 Certified; 1,000V Maximum In Fixtures And Signs; Model Number: WT41 |
| Standard | CSA C22.2 #188, UL 486C Listed, RoHS |
| RoHS URL | https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF |
| UPC | 781789967707 |
| GTIN | 00781789967707 |
| Environmental Conditions | Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 F) |
| Voltage Rating | 600 |
| Cross Reference Products | 3M 051128-54451|3M 051128-54452|3M 051128-55695|3M 412|Gardner 10-1H1|Gardner 13-1H1|Gardner 16-1H1L|Gardner H1|Ideal 30-341|Ideal 30-441J |
