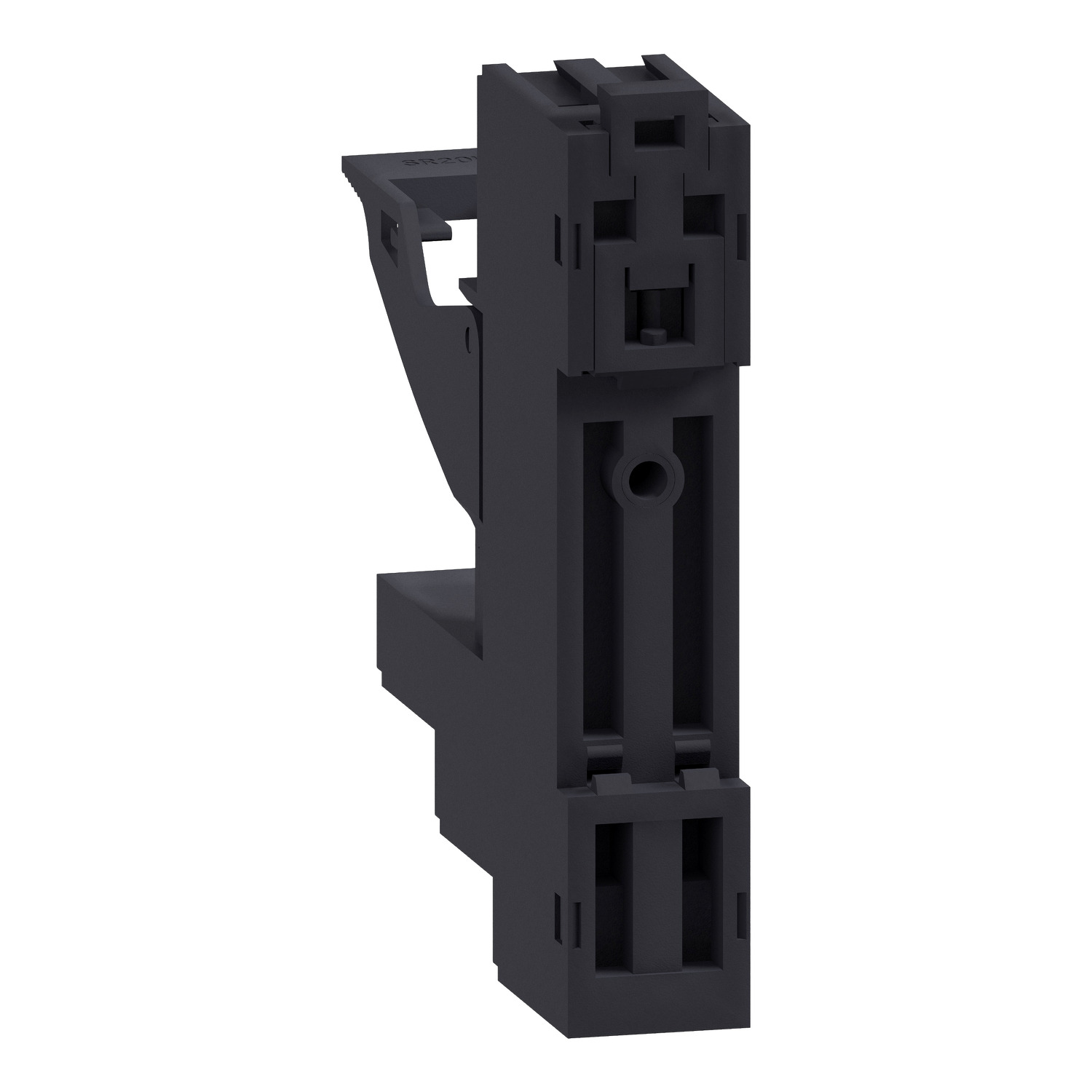

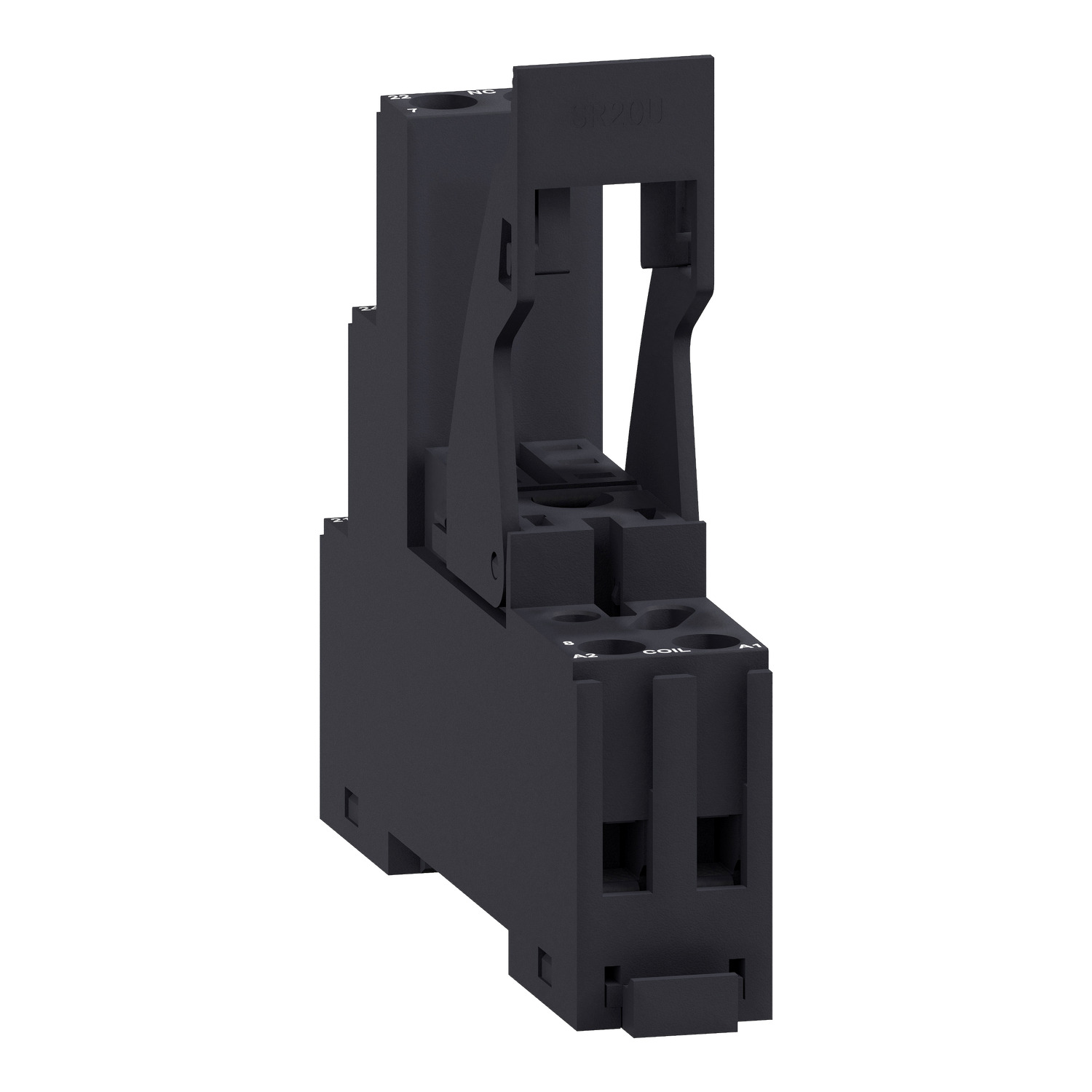

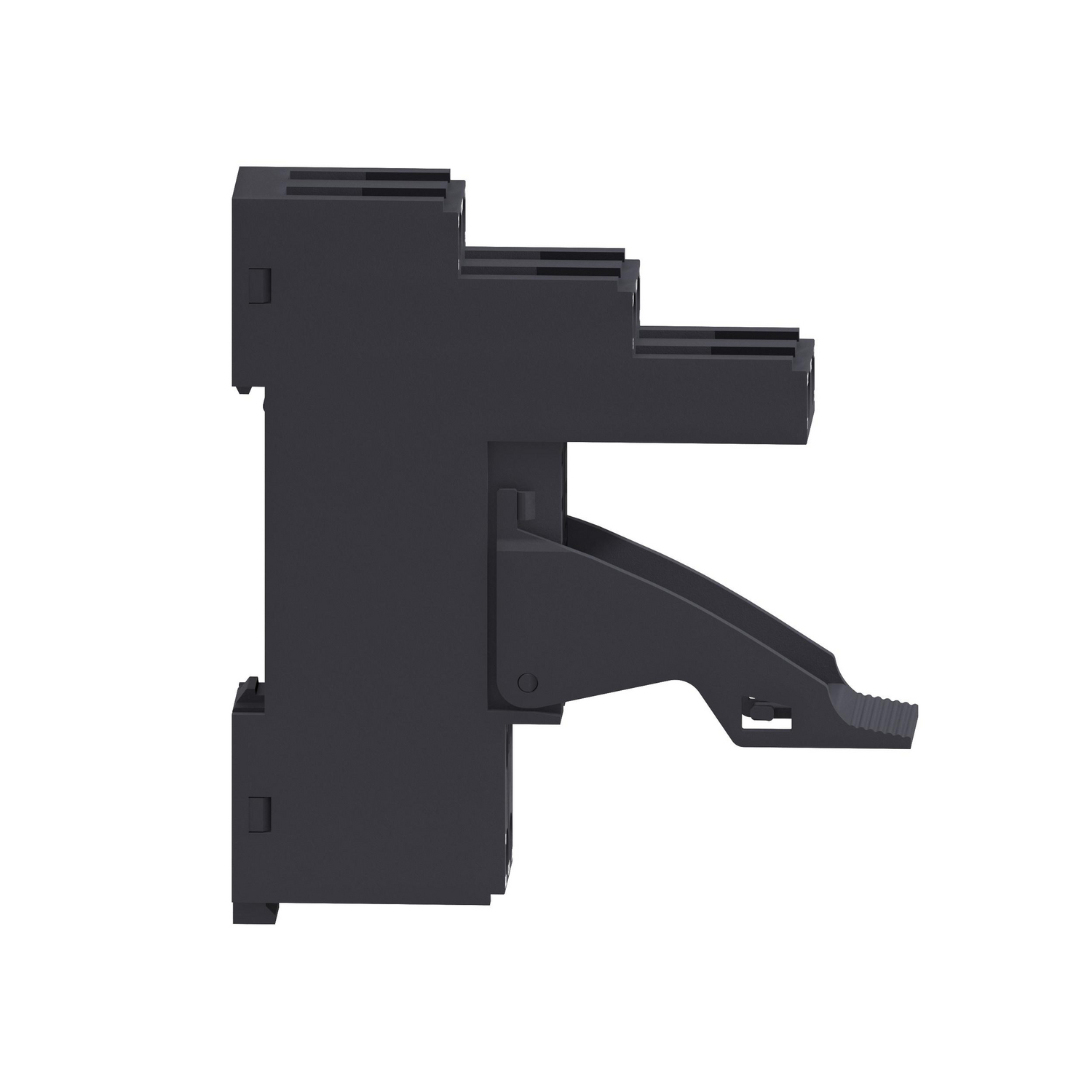

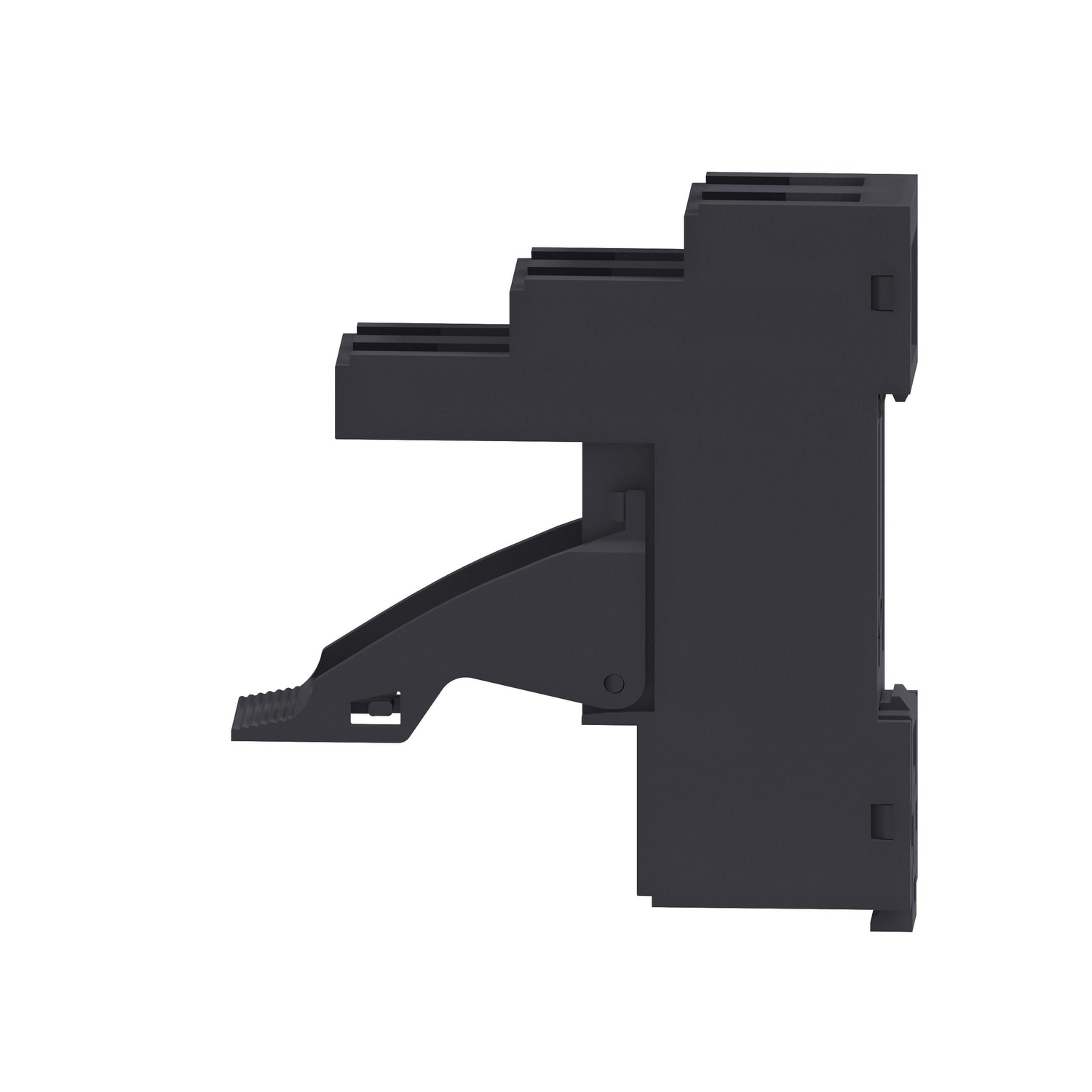

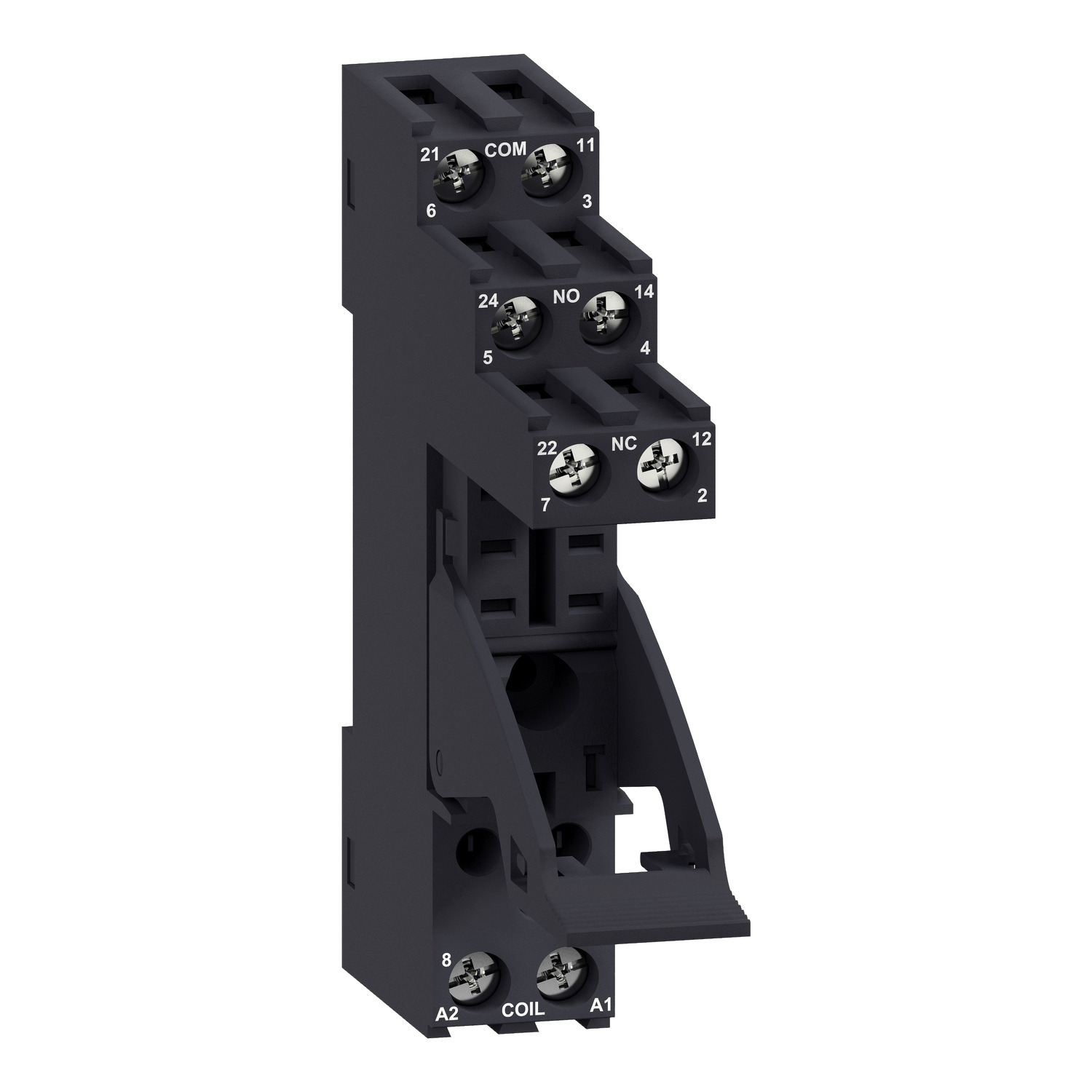

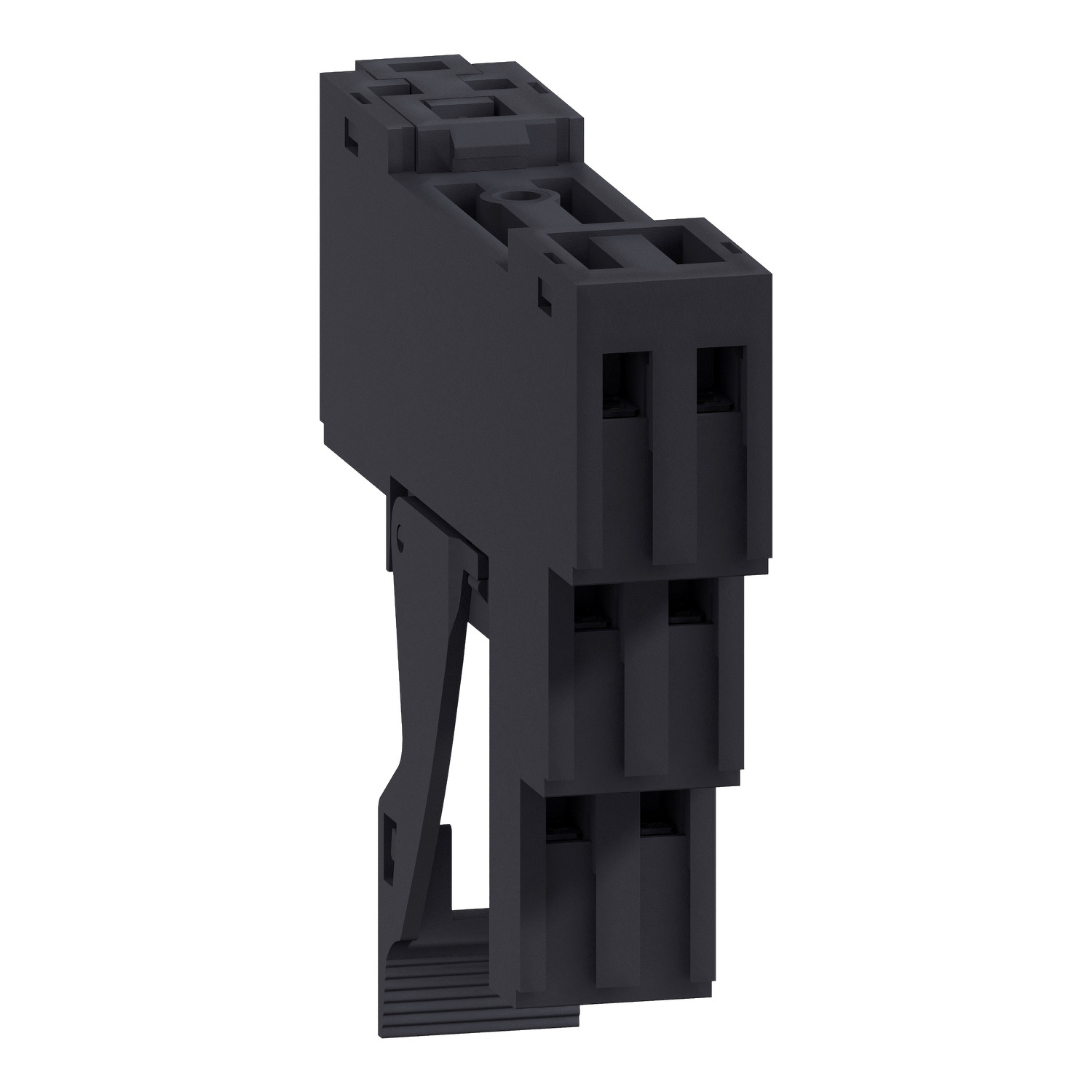

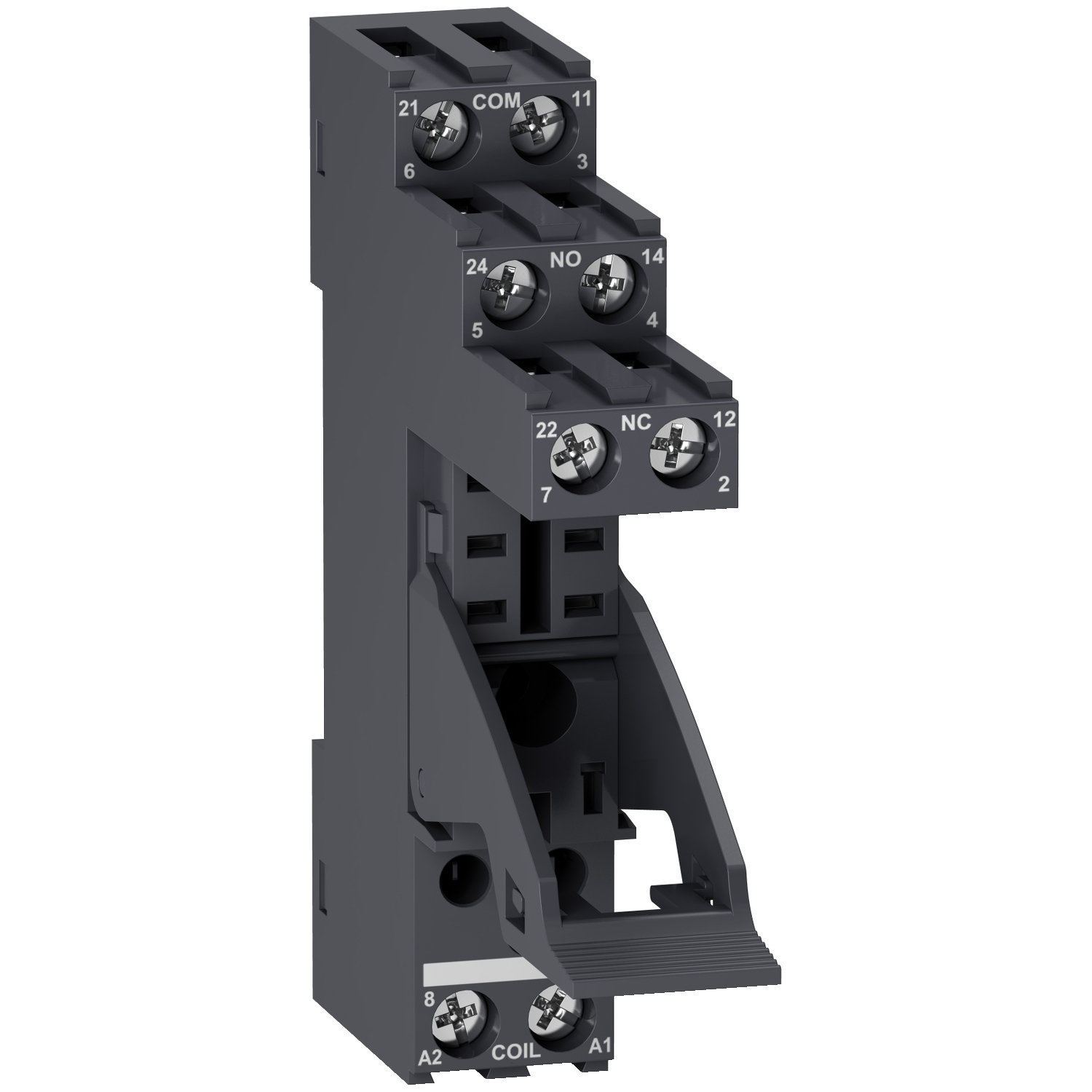

This Harmony RGZ timing relay socket has separate contact terminals. "It enables quick and easy plug-in installation of relays without the need for tools." "It is compatible with all 2 C/O DPDT RXG relays." "Simple relay retention via clamp allows quick replacement of relays and minimizes machine downtime." 0 0 0 0 0 0 0 0 0 0 0 0

Manuals & Documentation
Catalog Number RGZE1S48M
Manufacturer Schneider Electric
Brand Schneider Electric
Country of Origin United States
Made in USA Yes
Application Plug-in relay RXG 2 C/O
Connection Screw terminals, 1 x 0.34...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end;screw terminals, 2 x 0.34...2 x 1 mm² AWG 22...AWG 17) flexible with cable end;screw terminals, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end;screw terminals, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end
Contact Configuration 2 C/O
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=395923163&lang=en-us
GTIN 03606480689444
Item Type Socket
