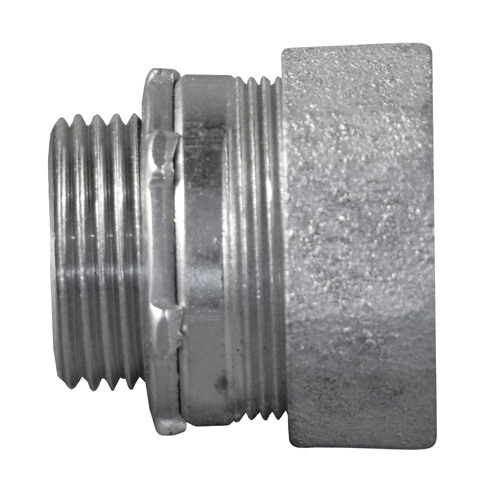

Concretetight Threadless IMC Compression Connector; 1 - 1/2 Inch, Malleable Iron, Compression x MNPT
- MFR:
- Appleton Electric
- MFR #:
- NTC-150
- UPC:
- 781381637909
- Item #:
- 403706
Concretetight Threadless IMC Compression Connector; 1 - 1/2 Inch, Malleable Iron, Compression x MNPT
- MFR #:
- NTC-150
- UPC:
- 781381637909
- Item #:
- 403706
Compression Connector, Size: 1-1/2 IN, Connection: Male Threaded X Compression, Material: Malleable Iron, Length: 2.01 IN, Thread Length: 0.63 IN, Diameter: 2.69 IN, Standard: UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1, For Use To Secure And Terminate Steel EMT To Knockouts And Concrete Tight Box
Manuals & Documentation
Features
- Dimension: 2.010 Inch Length x 2.690 Inch Height
| Catalog Number | NTC-150 |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use To Secure And Terminate Steel EMT To Knockouts And Concrete Tight Box |
| Connection | Male Threaded X Compression |
| Material | Malleable Iron |
| Special Features | Concretetight |
| Standard | UL 514B, UL File Number E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1 |
| RoHS Indicator | Contact Manufacturer |
| UPC | 781381637909 |
| GTIN | 00781381637909 |
| Item Type | Compression Connector |
| Length | 4.5000 |
| Length UOM | Inch |
| Width | 3.5000 |
| Width UOM | Inch |
| Height | 1.6000 |
| Height UOM | Inch |
| Weight | 0.600 |
| Weight UOM | Pounds |
| Size | 1-1/2 |
