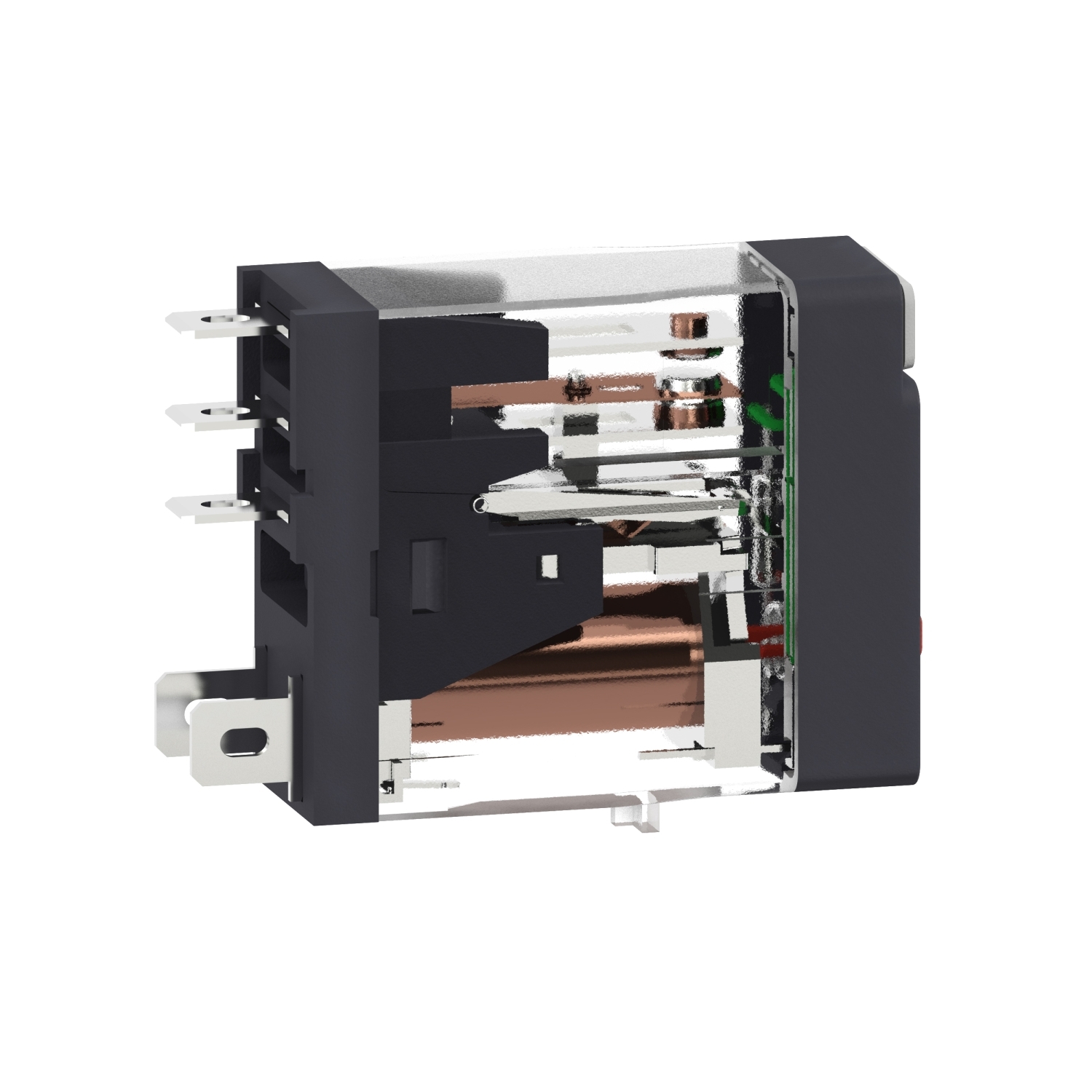

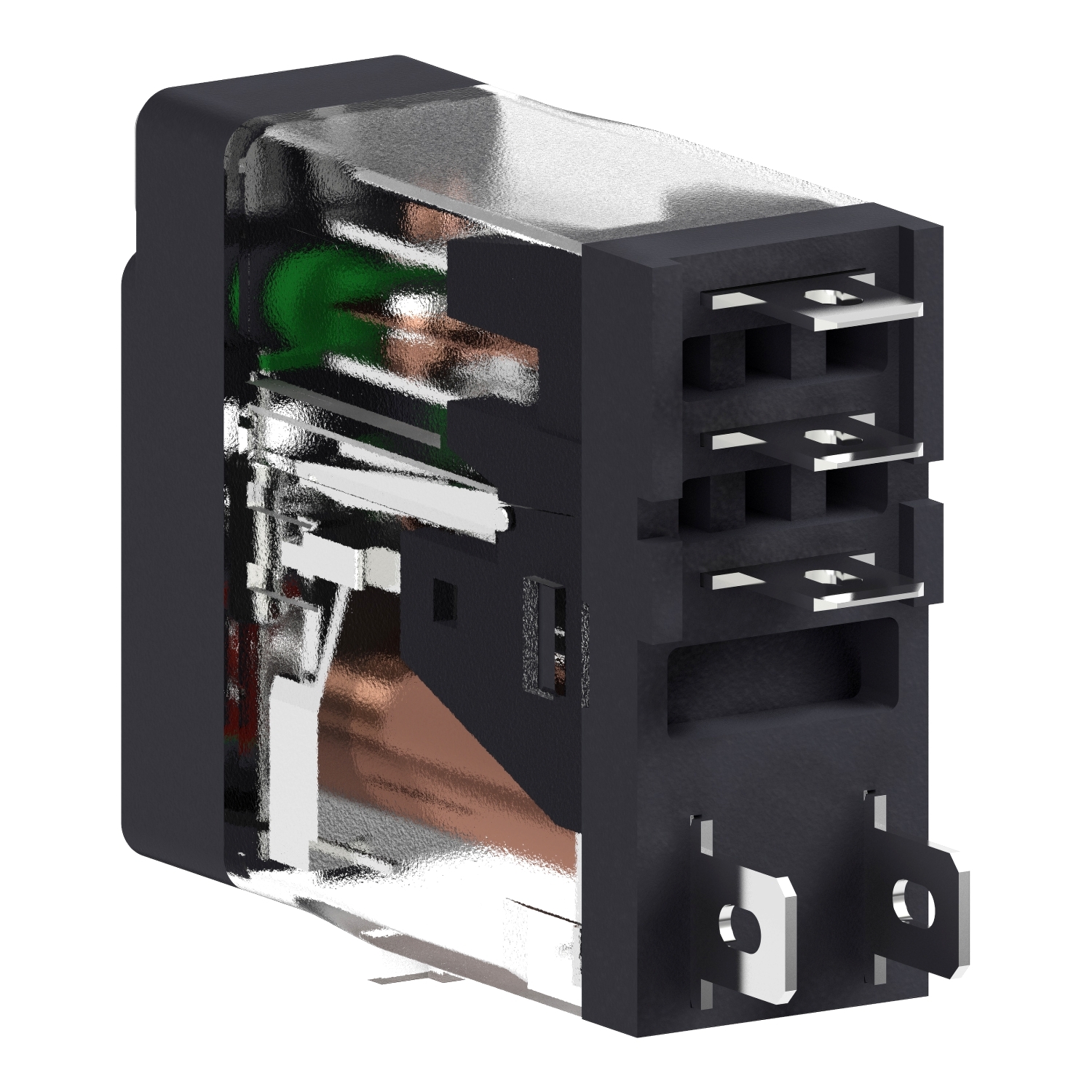

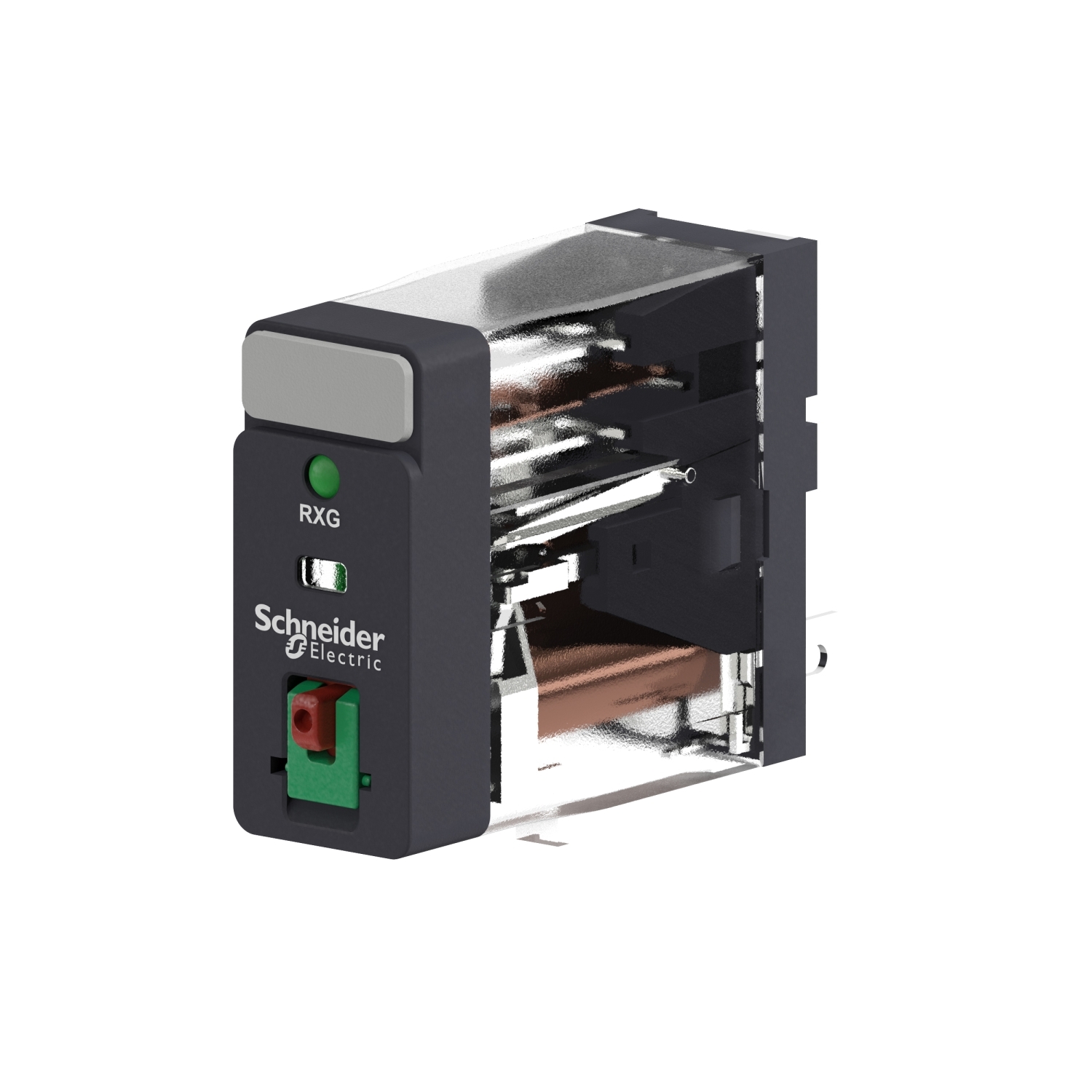

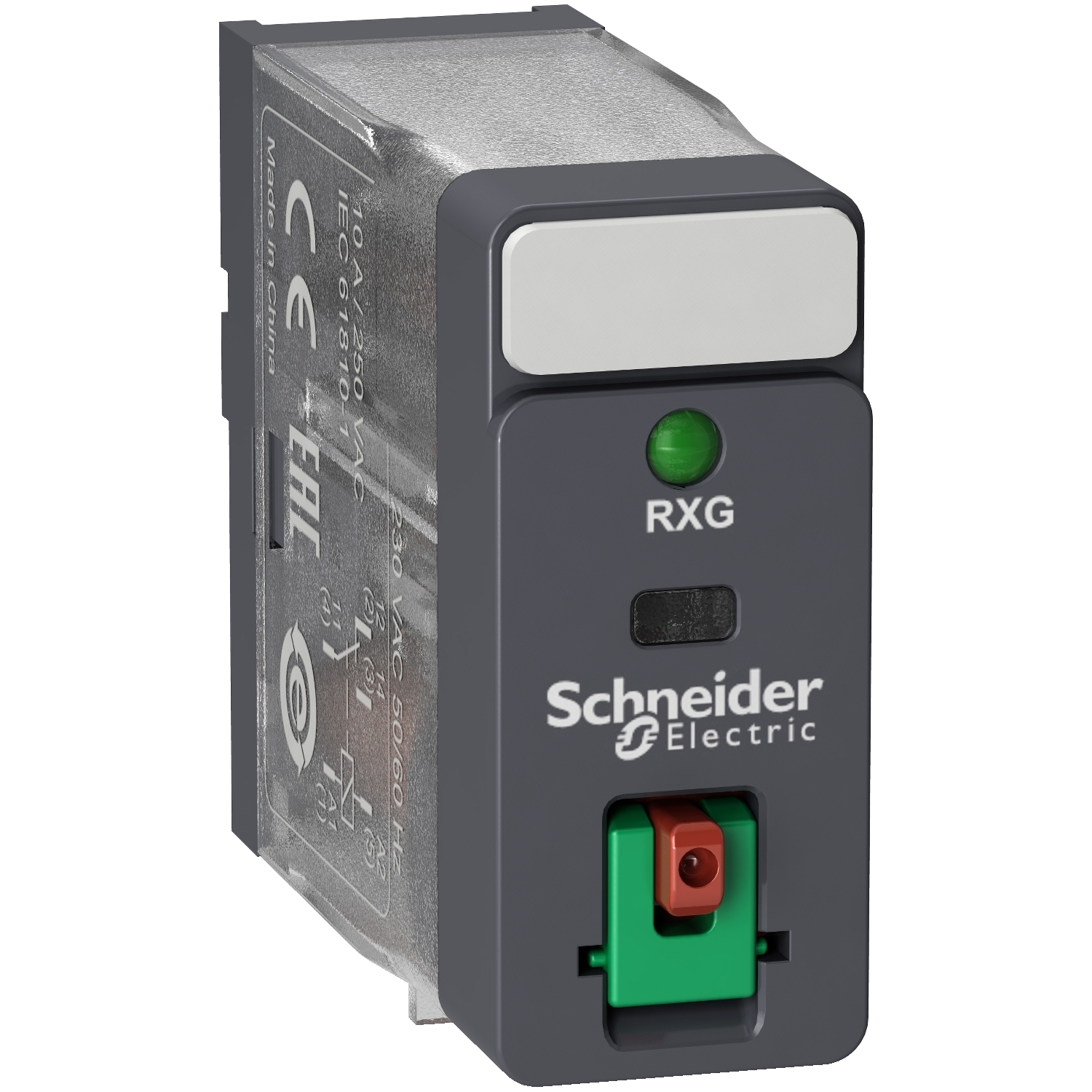

RXG12F7 Zelio Interface Plug-In Relay With Test Button and Lock-Down Door, 10 A, 1CO 1 Form C SPDT Contact, 120 VAC V Coil
- MFR:
- Schneider Electric
- MFR #:
- RXG12F7
- Item #:
- 403415
RXG12F7 Zelio Interface Plug-In Relay With Test Button and Lock-Down Door, 10 A, 1CO 1 Form C SPDT Contact, 120 VAC V Coil
- MFR #:
- RXG12F7
- Item #:
- 403415
This Harmony RXG plug-in relay socket has a coil control voltage of 120V AC and has 1 changeover contact SPDT (single pole double throw) with a rating of 10A. """"""""""
Manuals & Documentation
| Catalog Number | RXG12F7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | China |
| Made in USA | No |
| Contact Configuration | 1 C/O |
| Operating Cycles | <= 1800 cycles/hour under load;<= 18000 cycles/hour no-load |
| Resistance | 6300 Ohm +/- 10 % |
| Standard | 20 gn in operation;100 gn not in operation |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=395923087&lang=en-us |
| GTIN | 03606480688683 |
| Item Type | Plug-in relay |
