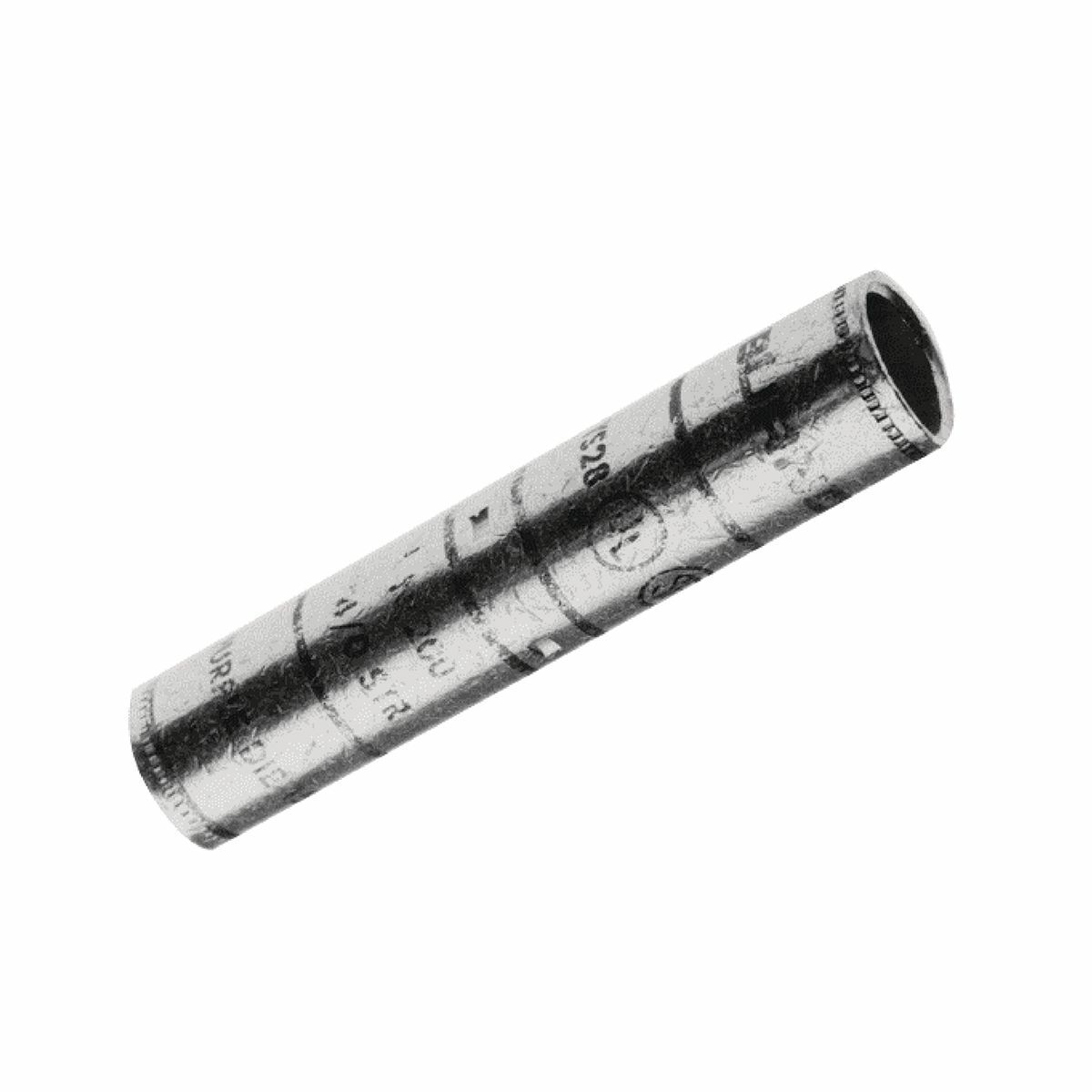

YS36 Type YS Long Barrel Compression Butt Splice, 600 kcmil Conductor, 5.85 in L, Long Barrel, Copper, Green
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YS36
- UPC:
- 781810526255
- Item #:
- 402668
YS36 Type YS Long Barrel Compression Butt Splice, 600 kcmil Conductor, 5.85 in L, Long Barrel, Copper, Green
- MFR #:
- YS36
- UPC:
- 781810526255
- Item #:
- 402668
Manuals & Documentation
| Catalog Number | YS36 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Splice |
| Finish | Tin-Plated |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 Volts to 35 kV, Long Barrel Length: Ideal For 600 Volt Heavy Duty Applications, Also May Be Used At Higher Voltages Up To 35KV, Four (4) Center Conductor Stops: Provides A Center Wire Stop For Proper Conductor Insertion, High Pull Out Force: Provides Added Security For Much Greater Mechanical And Electrical Properties, Dieless Tools (number Of Crimps): Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (4), Tapered End: No, Oil Stop: No, Color Code: Green, Die Index: 22 Or 472, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y750 Tool, U36RT Die, (4), Y46 Tool, U36RT Die With PUADP-1 Adapter, (4), Conductor Type: Commercial Stranded Copper, Wire Strip Length: 2-3/4 IN |
| Standard | UL 486A-486B |
| UPC | 781810526255 |
| GTIN | 00781810526255 |
| Item Type | YS, Long Barrel |
| Voltage Rating | 35 |
| Cross Reference Products | C-600, 54820 |
