O-Z/Gedney

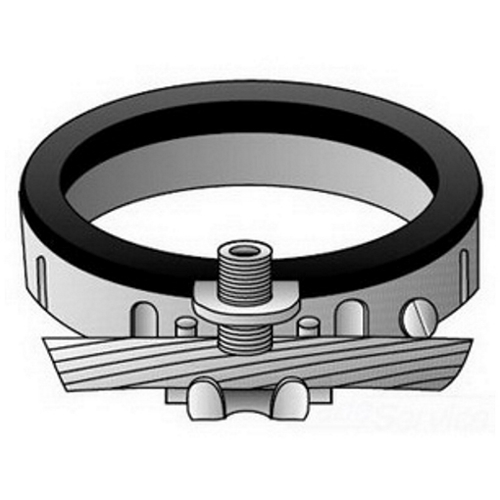

BLG-3122 Type BLG Grounding Bushing, 8 to 2/0 AWG AC Cable, 3 in Trade, Malleable Iron, Zinc Plated

MFR:
O-Z/Gedney
MFR #:
BLG-3122
UPC:
783126042481
Item #:
401861
Manuals & Documentation

Features

  • Allows easy insertion
  • Provides fixed alignment
  • UL listed
  • CSA certified
Catalog Number BLG-3122
Manufacturer O-Z/Gedney
Brand O-Z/Gedney
Country of Origin Mexico
Made in USA No
Application For Threaded Rigid Conduit, IMC And EMT Conduit
Connection Set-Screw
Finish Zinc Plated
Material Malleable Iron Body, Stainless Steel Screws
Special Features O-Z/Gedney specification grade insulated bushings provide a grounding lug to allow for grounding of conduit through the insulated bushing; Protects insulated conductors from abrasion during pulling and mechanical vibration; Provides voltage gradient between line conductors and ground at point of electrical and mechanical stress on conductor insulation; Allows easy insertion of grounding conductor for through or end connection; Low grounding connector profile; Spring action design maintains positive firm contact on grounding conductor; Set screw provides fixed alignment and positive ground continuity; Phenolic insulation, with 150 DEG C UL rating, molded on over metallic conduit stop will not shatter or shrink at sub-zero temperatures; Lugs not sold separately; Tin plated copper saddle for use with copper or aluminum conductors from #8 to 4/0; Type BLG insulated lay-In-lug grounding bushings with tin-plated copper grounding path shall be used on all feeder raceways and bushings shall ha
Standard Third Party Certification: UL File Number E-24264, CSA 015978, Applicable Third Party Standards: UL 514B, 467, 468, CSA C22.2 No.41, Federal Specification W-F-408E, NEMA : FB-1
UPC 783126042481
GTIN 00783126042481
Item Type Type BLG Insulated Grounding Bushing
Size 3
Temperature Rating 150 DEG C
