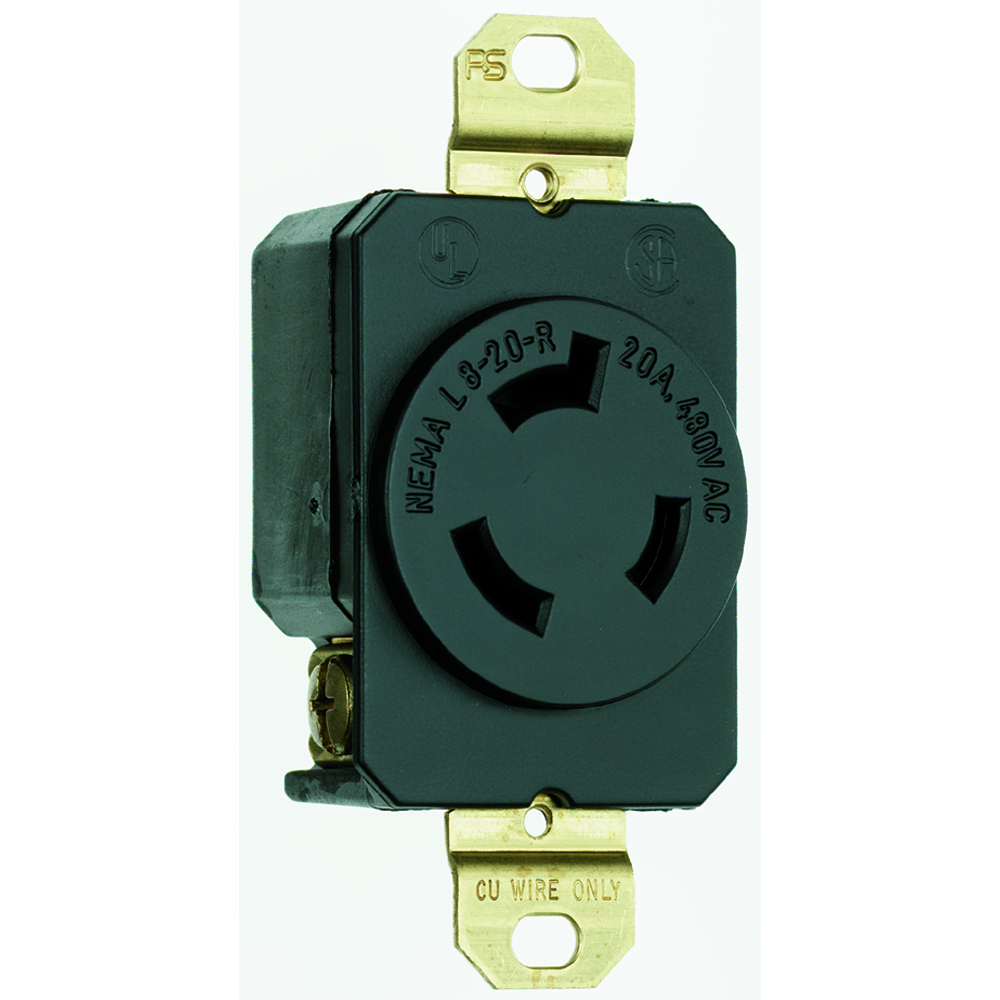

Industrial Spec Grade SingleTurnlok Registered 20A 480V Receptacle

Catalog Number L820R
Manufacturer Legrand-Pass & Seymour
Brand Legrand-Pass & Seymour
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application Industrial
Color Black
Connection Back and side wire
Material Nylon
Mounting Wall
Number of Poles 2
Number of Wires 3
Special Features Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength. Face color coding by voltage facilitates locating and mating of proper devices. One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance. Clearly marked NEMA configuration, rating, and third-party listing on each unit's face. Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands. Side and external screw-pressure-plate back wire capability. Accepts #14 - #10 AWG.
Standard UL498, CSA C22.2 No. 42
UPC 785007282054
GTIN 00785007282054
Item Type Turnlok® Single Receptacle
Size 1.61 L x 1.19 W x 3.28 H
Environmental Conditions Flammability: UL94 V2: Operating Temperature: Maximum continuous +75°C, minimum -40°C without impact
Voltage Rating 480
Wire Size 14 - 10 AWG
