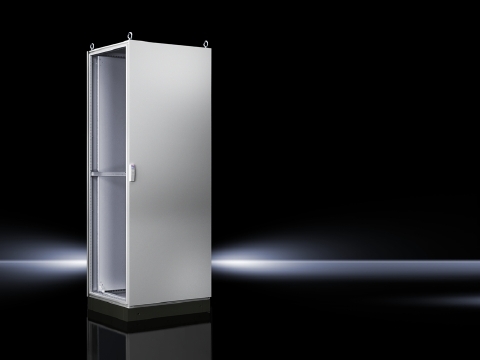

8806580 TS/TS8 Compact Baying Enclosure System With Door, 31 in W x 24 in D, NEMA 4/12/3R/IP55/IP66/IK09 NEMA Rating, Sheet Steel
- MFR:
- Rittal
- MFR #:
- 8806580
- UPC:
- 639889853928
- Item #:
- 400322
8806580 TS/TS8 Compact Baying Enclosure System With Door, 31 in W x 24 in D, NEMA 4/12/3R/IP55/IP66/IK09 NEMA Rating, Sheet Steel
- MFR #:
- 8806580
- UPC:
- 639889853928
- Item #:
- 400322
Baying systems TS 8, IP 66/NEMA 4, material: Enclosure frame: Sheet steel, 1.5 mm, Roof: Sheet steel, 1.5 mm, Door: Sheet steel, 2.0 mm, Rear panel: Sheet steel, 1.5 mm, Base: sheet steel, 1.5 mm, Mounting plate: Sheet steel 3.0 mm, surface: Enclosure frame, door, roof and rear panel: Dipcoat-primed and powder-coated, textured paint, Mounting plate: Zinc-plated, color: RAL 7035, supply includes: Enclosure frame, Door(s), Roof plate, Base, solid, Rear panel, detachable, Mounting plate, 4 eyebolts, Lock: 3 mm double-bit, description: Baying systems TS 8, protection category IP 66, NEMA 4, sheet steel, spray-finished
Manuals & Documentation
| Catalog Number | 8806580 |
| Manufacturer | Rittal |
| Brand | Rittal Corp |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Industrial, Data Center, Outdoor, Hybrid |
| Color | RAL 7035 |
| Material | Sheet Steel |
| Mounting | Din Rail |
| NEMA Rating | 12 |
| Special Features | Features: 16-Fold Tubular Frame System, Flexible Baying Options, Modular Design |
| Standard | UL Listed, CSA, TUV, Norske Veritas, Germanischer Lloyd, Russian Maritime Register of Shipping, Lloyds Register of Shipping, Bureau Veritas, VDE |
| RoHS Indicator | Under Review |
| UPC | 639889853928 |
| GTIN | 00639889853928 |
| Item Type | Compact Enclosure |
| Length | 48.0000 |
| Length UOM | Inch |
| Width | 32.0000 |
| Width UOM | Inch |
| Height | 85.0000 |
| Height UOM | Inch |
| Weight | 287.698 |
| Weight UOM | Pounds |
| Size | 79 (H) x 31 (W) x 24 (D) |
