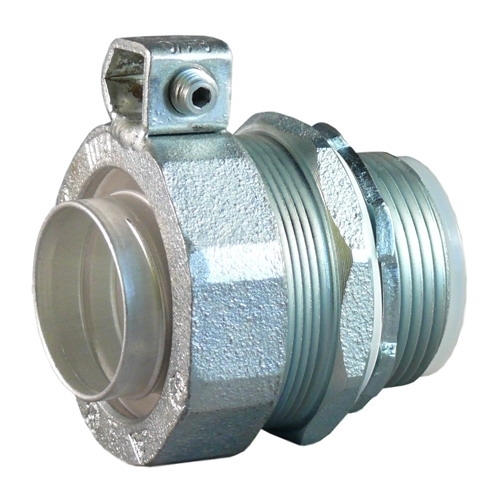

Straight Liquidtight Connector With Insulated Throat and External Grounding Lugs; 1-1/2 Inch, Tapered NPT, Malleable Iron, Chromate, Epoxy Powder Coat/Electro-Plated Zinc
- MFR:
- Appleton Electric
- MFR #:
- STB-150L
- UPC:
- 781381403535
- Item #:
- 399825
Straight Liquidtight Connector With Insulated Throat and External Grounding Lugs; 1-1/2 Inch, Tapered NPT, Malleable Iron, Chromate, Epoxy Powder Coat/Electro-Plated Zinc
- MFR #:
- STB-150L
- UPC:
- 781381403535
- Item #:
- 399825
Appleton Liquidtight STB-L Series Straight Connector with Insulated Throat and External Grounding Lugs. Conduit size: 1-1/2 IN, Material: Malleable iron body and compression nut. Grounding lugs size: 8-1/0. Suitable for use in Class I, Division 2
| Catalog Number | STB-150L |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Liquidtight Flexible Metal Conduit |
| Conductor Range | 8 - 1/0 AWG |
| Connection | Threaded X Compression |
| Finish | Chromate, Epoxy Powder Coat/Zinc Electroplated |
| Material | Malleable Iron |
| Special Features | Includes insulated throat, external grounding lug; Unique long ferrule with more pronounced threads provides over four times UL pull-out requirements; Ferrule provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Adequately sized bonded lugs provide excellent grounding continuity and allow for visible ground path inspection; Suitable for outdoor use; Full, machined tapered threads (NPT); Malleable iron compression nut |
| Standard | Class I, Division 2; UL 467, E6581, CSA C22.2 No. 18.3, 065178, NEMA FB-1 |
| UPC | 781381403535 |
| GTIN | 00781381403535 |
| Item Type | STB Series Straight Liquidtight Connector |
| Size | 1-1/2 |
