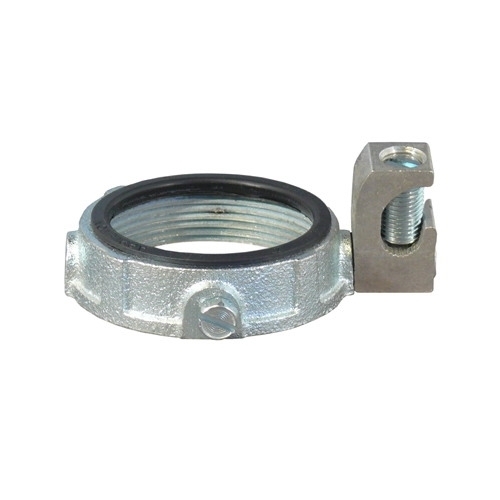

GIB-500L-25AC GIB-L-AC Grounding Bushing With Aluminum Lay-In-Lug, 6 AWG to 250 kcmil AC Cable, 5 in Trade, Malleable Iron, Zinc Electroplated
- MFR:
- Appleton Electric
- MFR #:
- GIB-500L-25AC
- UPC:
- 781381091329
- Item #:
- 395280
GIB-500L-25AC GIB-L-AC Grounding Bushing With Aluminum Lay-In-Lug, 6 AWG to 250 kcmil AC Cable, 5 in Trade, Malleable Iron, Zinc Electroplated
- MFR #:
- GIB-500L-25AC
- UPC:
- 781381091329
- Item #:
- 395280
Insulated Grounding Bushing With Aluminum Lay-In-Lug, Size: 5 IN, Material: Malleable Iron, Finish: Zinc Electroplated Body, Tin Plated Lug, Connection: Threaded, Temperature Rating: 150 DEG C, Dimensions: 1-1/4 IN Height X 6.06 IN Diameter, Cable Size: 6 AWG - 250 KCMIL Stranded, Turning Radius: 4.31 IN, Standard: UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1, For Use With Threaded Rigid Metal Conduit And IMC
Manuals & Documentation
| Catalog Number | GIB-500L-25AC |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Threaded Rigid Metal Conduit And IMC |
| Connection | Threaded |
| Finish | Zinc Electroplated Body, Tin Plated Lug |
| Material | Malleable Iron |
| Special Features | Provides a compact means of grounding conduit through an insulated bushing; Can be used with a locknut to terminate conduit at an enclosure; Lug used to connect bonding jumper to a neutral bus bar; Insulating liner material is self-extinguishing; The plastic liner is tough, It resists corrosion, chemicals and temperature extremes, surface friction is so low that wires can be pulled with virtually no abrasion on the cable insulation; Lugs not sold separately; Fasten and ground threaded rigid, IMC metal conduit to an enclosure, copper or aluminum conductors |
| Standard | UL 467, E6581, CSA C22.2 No. 41, NEMA FB-1 |
| UPC | 781381091329 |
| GTIN | 00781381091329 |
| Item Type | Insulated Grounding Bushing With Aluminum Lay-In-Lug |
| Size | 5 |
| Temperature Rating | 150 DEG C |
